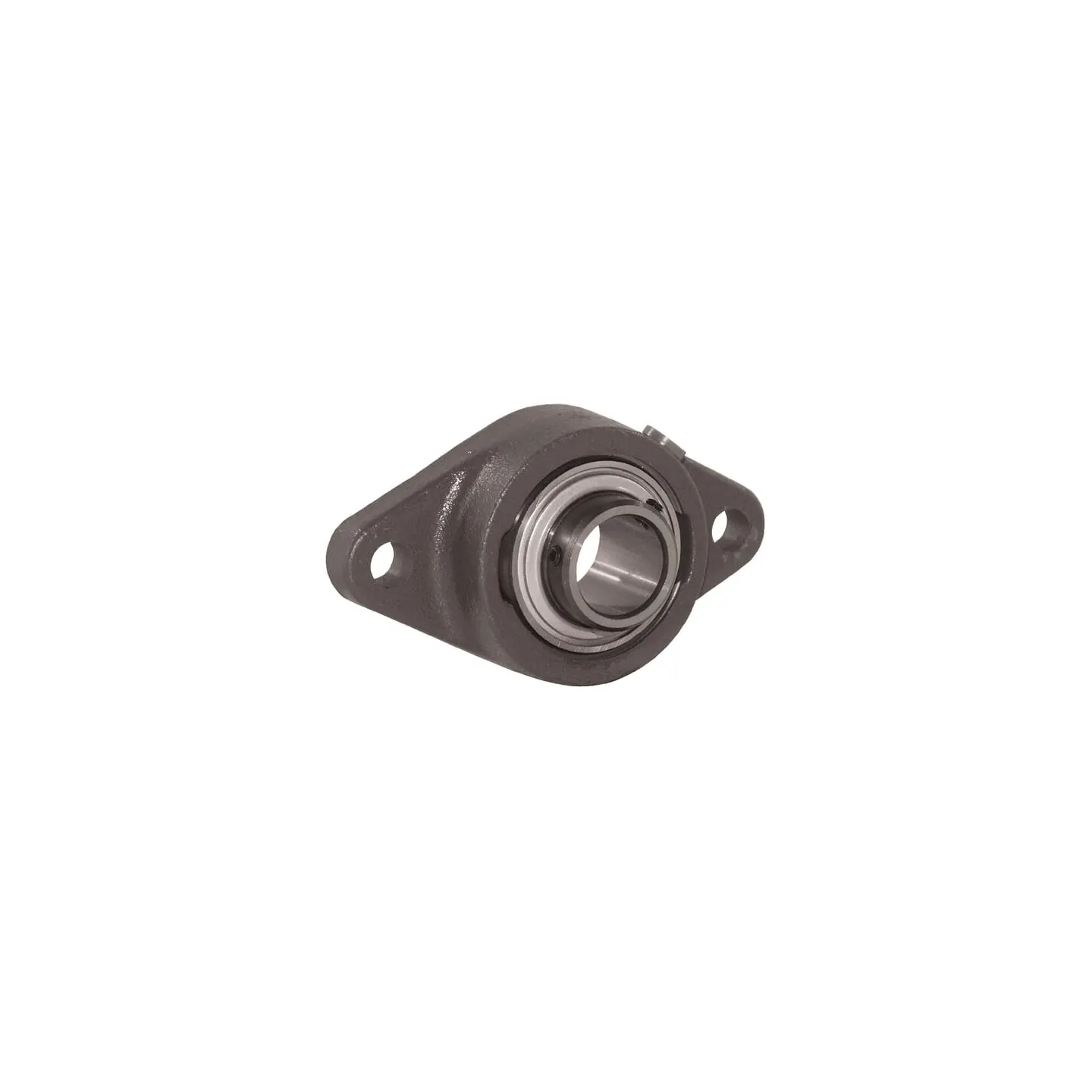

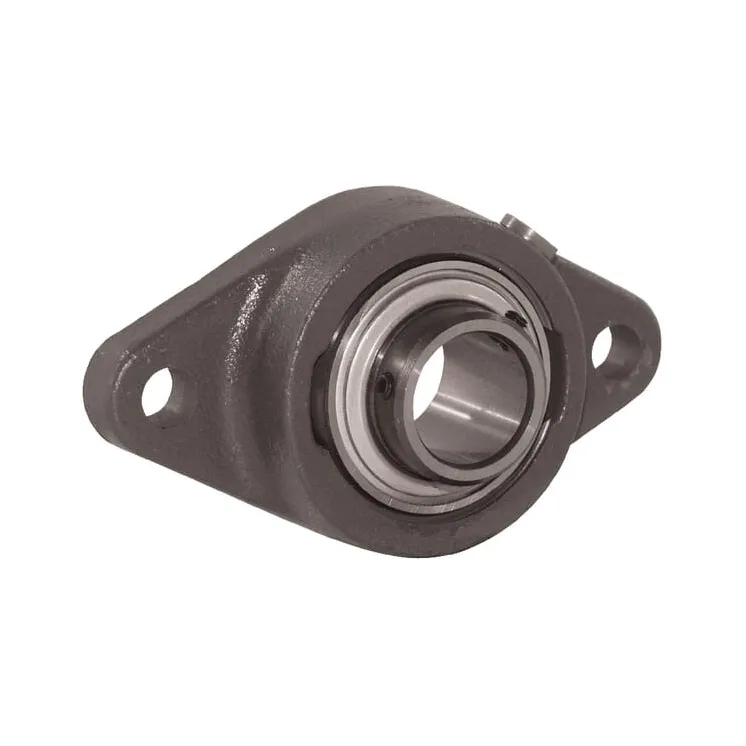

Dzīvojamā vienība RCJTY RCJTY30N UCFT206TR

Name: Dzīvojamā vienība RCJTY RCJTY30N UCFT206TR
Brand: INA/FAG
SKU: RCJTY30N
Price: 41.18 EUR
Availability: InStock

Apmaksas iespējas

41,18 €

AR PVN

4-5 Darba dienas

Dzīvojamā vienība RCJTY RCJTY30N INA/FAG UCFT206TR

IR NOLIKTAVĀ

ID: 65160

Apraksts

Part number	RCJTY30N
EAN	4012802796360
Unit	Each
Properties	Inner bearing has extended inner ring with 2 adjusting screws on both sides Can be subsequently lubricated
Housing type	Oval flange
dBearing inside diameter	30 mm
BTotal length	80 mm
AHousing width	142 mm
Total height	42.2 mm
Total width	38.1 mm
THousing height	29 mm
LBearing inner ring width	38.1 mm
Bearing balls distance to locking side end	20 mm
Mounting holes distance	116.5 mm
KMounting holes diameter	11.5 mm
Grease nipple thread diameter	M6
Weight	0.83 kg
Basic radial load static	11300 N
Basic radial load dynamic	19500 N
Original number equivalent	RCJTY30-N
