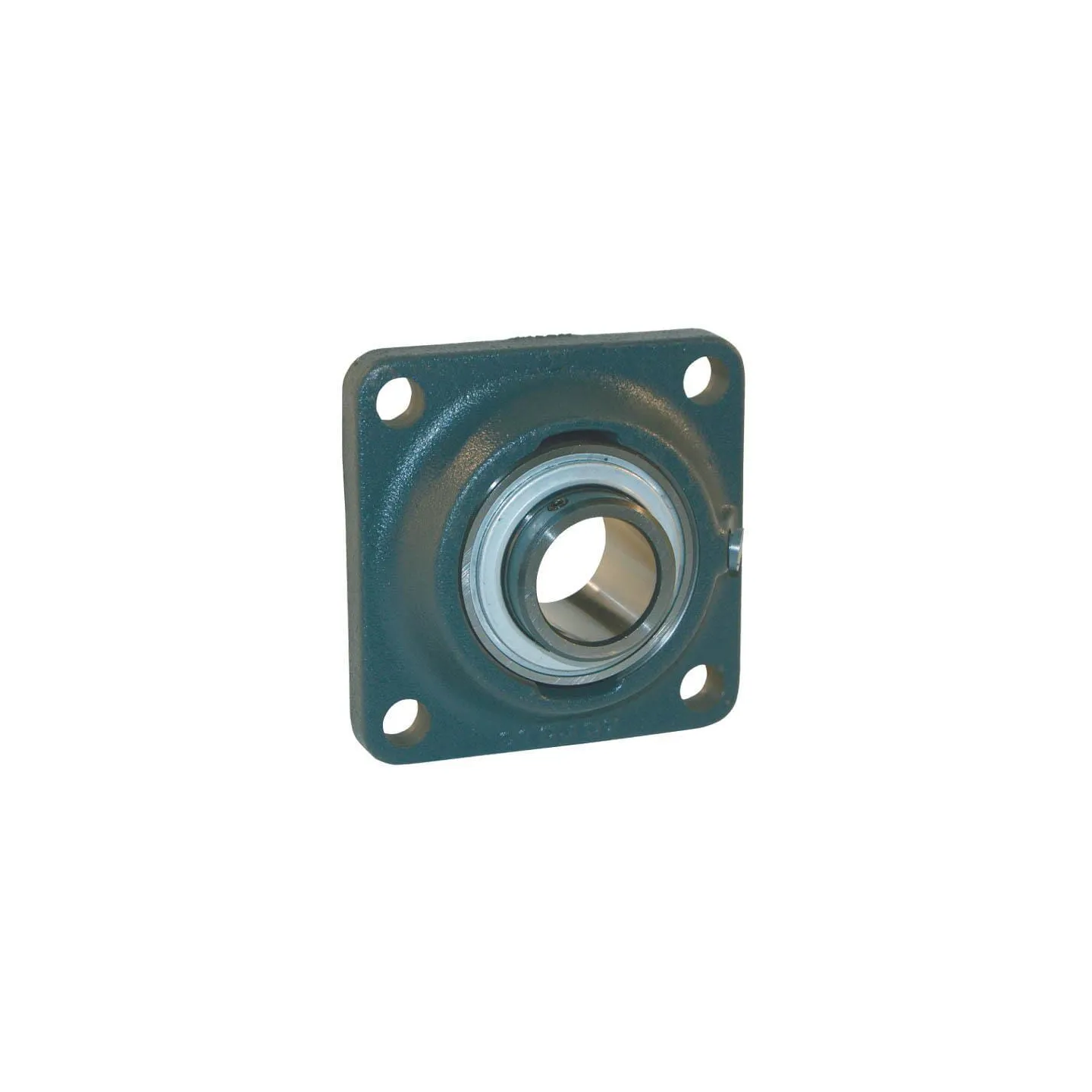

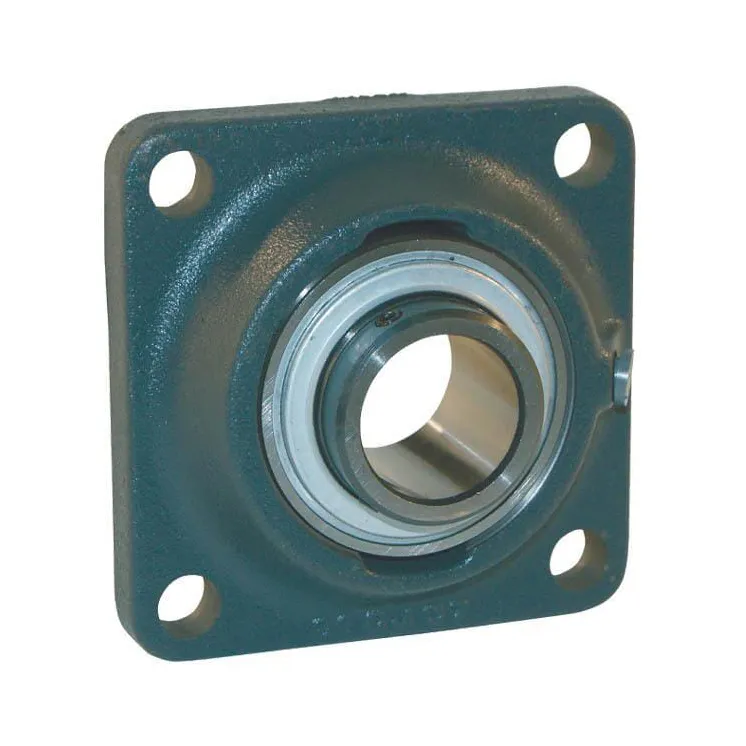

Korpuss RCJY RCJY50N

Name: Korpuss RCJY RCJY50N
Brand: INA/FAG
SKU: RCJY50N
Price: 75.53 EUR
Availability: InStock

Apmaksas iespējas

75,53 €

AR PVN

4-5 Darba dienas

Korpuss RCJY RCJY50N INA/FAG

IR NOLIKTAVĀ

ID: 65161

Apraksts

Part number	RCJY50N
EAN	4012802804751
Unit	Each
Properties	Inner bearing has extended inner ring with 2 adjusting screws on both sides Can be subsequently lubricated
Housing type	Square flange
dBearing inside diameter	50 mm
ATotal length	143 mm
Housing width	143 mm
UTotal height	60.6 mm
Total width	51.6 mm
THousing height	39 mm
LBearing inner ring width	51.6 mm
Bearing balls distance to locking side end	28 mm
Mounting holes distance	111 mm
KMounting holes diameter	18 mm
Grease nipple thread diameter	M6
Weight	2.44 kg
Basic radial load static	23200 N
Basic radial load dynamic	35000 N
Original number equivalent	RCJY50-N
