Dzīvoklis RCJT RCJT45

Name: Dzīvoklis RCJT RCJT45
Brand: INA/FAG
SKU: RCJT45
Price: 90.53 EUR
Availability: InStock

Apmaksas iespējas

90,53 €

AR PVN

4-5 Darba dienas

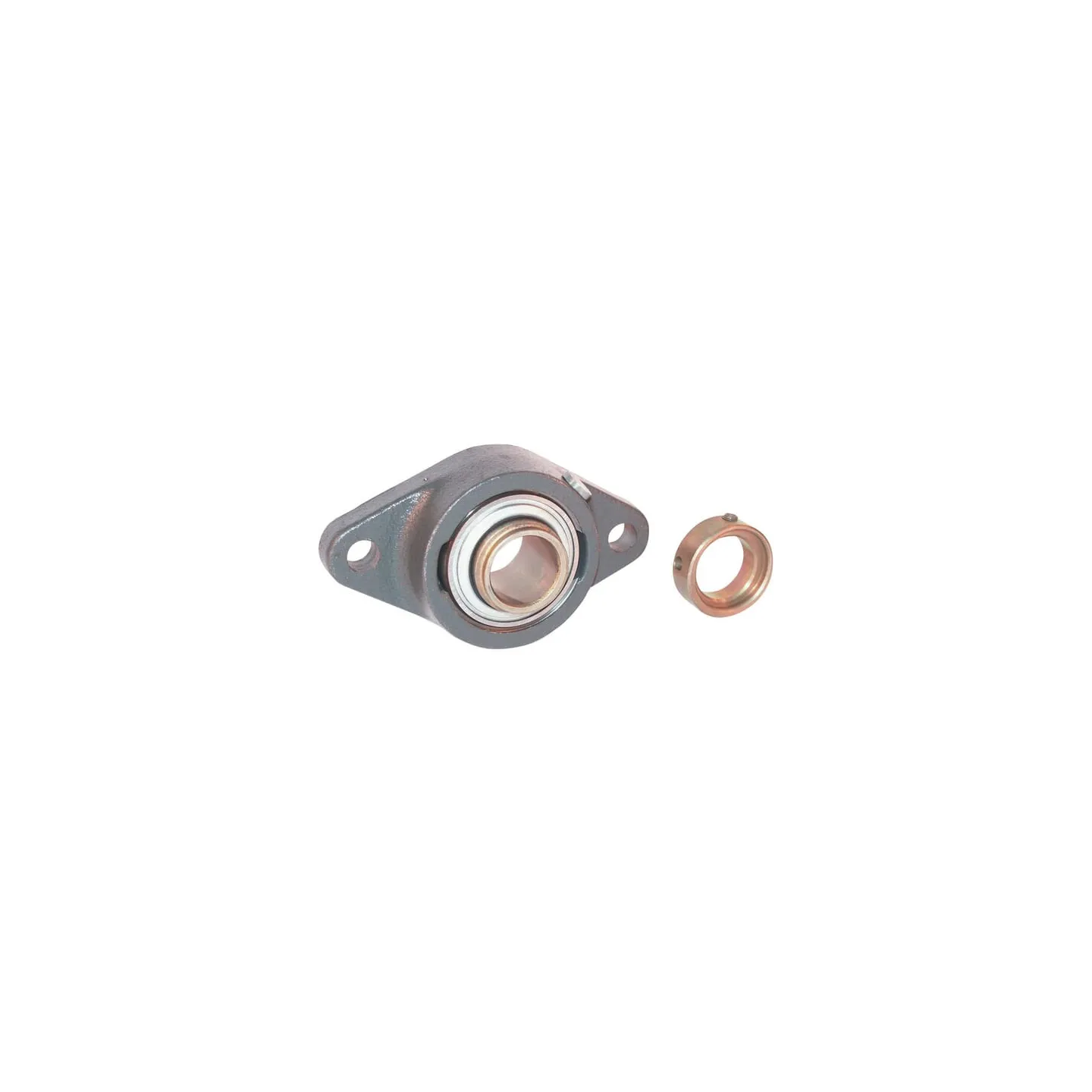

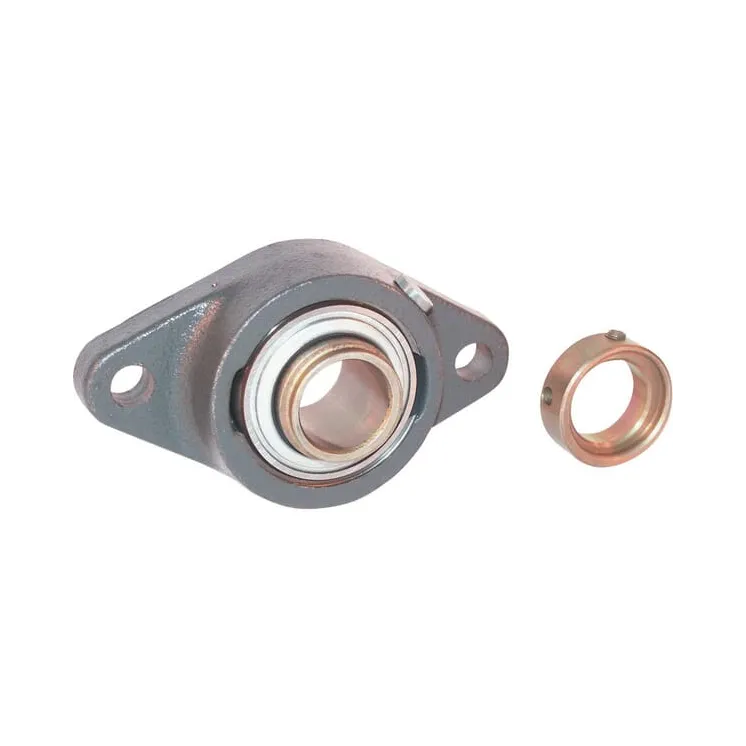

Dzīvoklis RCJT RCJT45 INA/FAG

IR NOLIKTAVĀ

ID: 65162

Apraksts

Part number	RCJT45
EAN	4054372939471
Unit	Each
Properties	Inner bearing has extended inner ring with clamp ring on both sides Can be subsequently lubricated
Technical info	Addition FA125: additional rust protection
Housing type	Oval flange
dBearing inside diameter	45 mm
Consists of	Bearing block Clamp ring
Total length	180 mm
Housing width	180 mm
UTotal height	180 mm
ATotal width	59.1 mm
THousing height	35 mm
LBearing inner ring width	56.5 mm
Locking ring outside diameter	63 mm
Bearing balls distance to locking side end	24 mm
MMounting holes distance	148.5 mm
KMounting holes diameter	14 mm
Grease nipple thread diameter	M6
Weight	1.87 kg
Basic radial load static	20400 N
Basic radial load dynamic	34500 N
Original number equivalent	RCJT45
