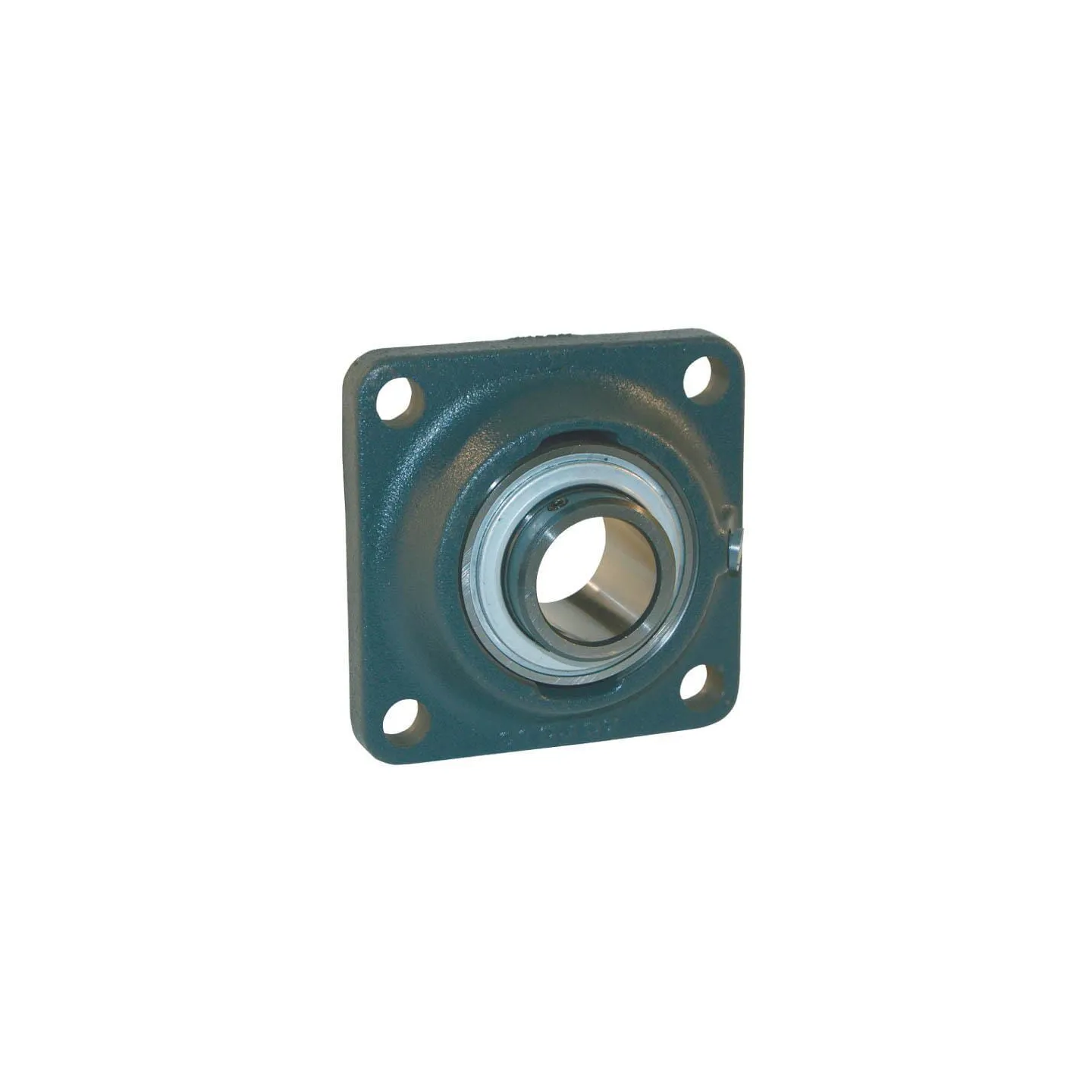

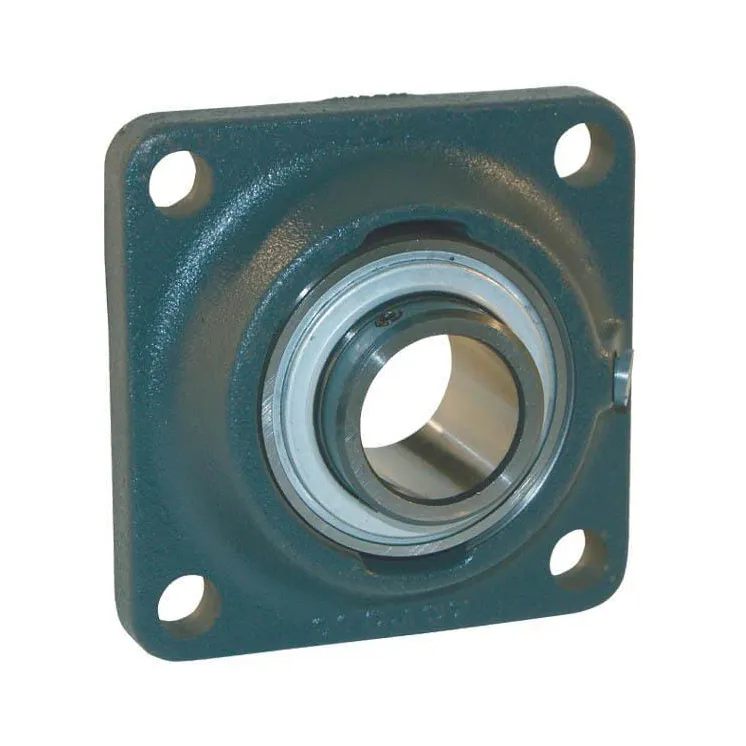

Dzīvojamā vienība RCJY RCJY20N

Name: Dzīvojamā vienība RCJY RCJY20N
Brand: INA/FAG
SKU: RCJY20N
Price: 32.2 EUR
Availability: BackOrder

Apmaksas iespējas

32,20 €

AR PVN

Pēc pieprasījuma

Dzīvojamā vienība RCJY RCJY20N INA/FAG

Uz pasūtījumu

ID: 65163

Apraksts

Part number	RCJY20N
EAN	4012802797916
Unit	Each
Properties	Inner bearing has extended inner ring with 2 adjusting screws on both sides Can be subsequently lubricated
Housing type	Square flange
dBearing inside diameter	20 mm
ATotal length	86 mm
Housing width	86 mm
UTotal height	37.3 mm
Total width	31 mm
THousing height	29 mm
LBearing inner ring width	31 mm
Bearing balls distance to locking side end	19 mm
Mounting holes distance	63.5 mm
KMounting holes diameter	11.5 mm
Grease nipple thread diameter	M6
Weight	0.57 kg
Basic radial load static	6600 N
Basic radial load dynamic	13600 N
Original number equivalent	RCJY20-N
