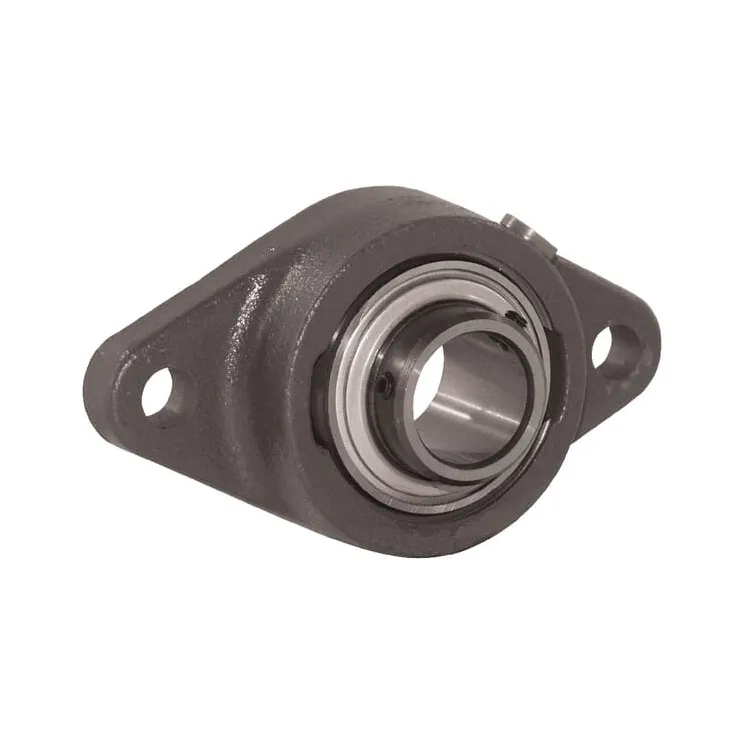

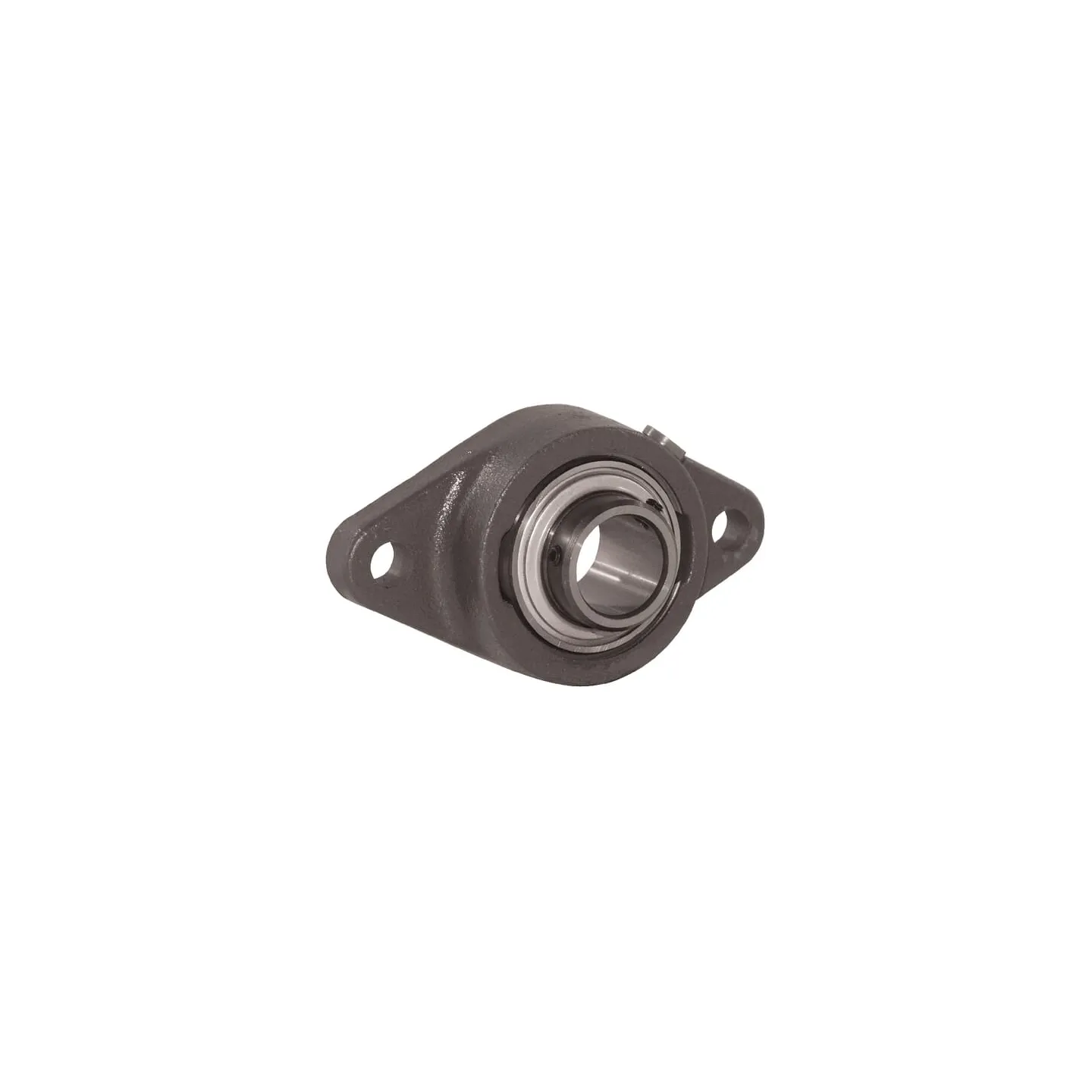

Dzīvojamā vienība RCJTY RCJTY35

Name: Dzīvojamā vienība RCJTY RCJTY35
Brand: INA/FAG
SKU: RCJTY35
Price: 47.86 EUR
Availability: InStock

Apmaksas iespējas

47,86 €

AR PVN

4-5 Darba dienas

Dzīvojamā vienība RCJTY RCJTY35 INA/FAG

IR NOLIKTAVĀ

ID: 65165

Apraksts

Part number	RCJTY35
EAN	4012802796346
Unit	Each
Properties	Inner bearing has extended inner ring with 2 adjusting screws on both sides Can be subsequently lubricated
Housing type	Oval flange
dBearing inside diameter	35 mm
BTotal length	92 mm
AHousing width	155 mm
Total height	46.4 mm
Total width	42.9 mm
THousing height	30.5 mm
LBearing inner ring width	42.9 mm
Bearing balls distance to locking side end	21 mm
Mounting holes distance	130 mm
KMounting holes diameter	14 mm
Grease nipple thread diameter	M6
Weight	1.12 kg
Basic radial load static	15300 N
Basic radial load dynamic	275000 N
Original number equivalent	RCJTY35-N
