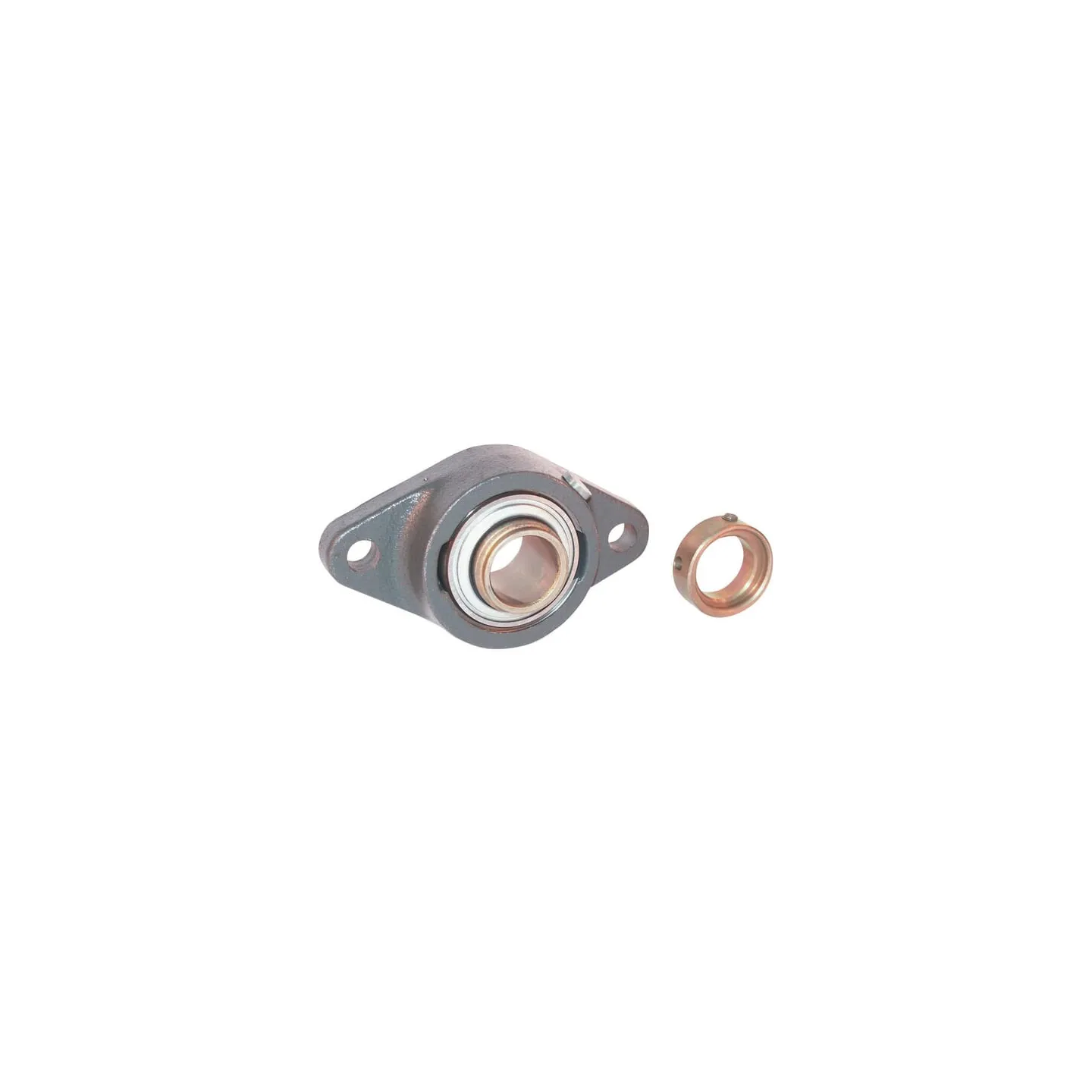

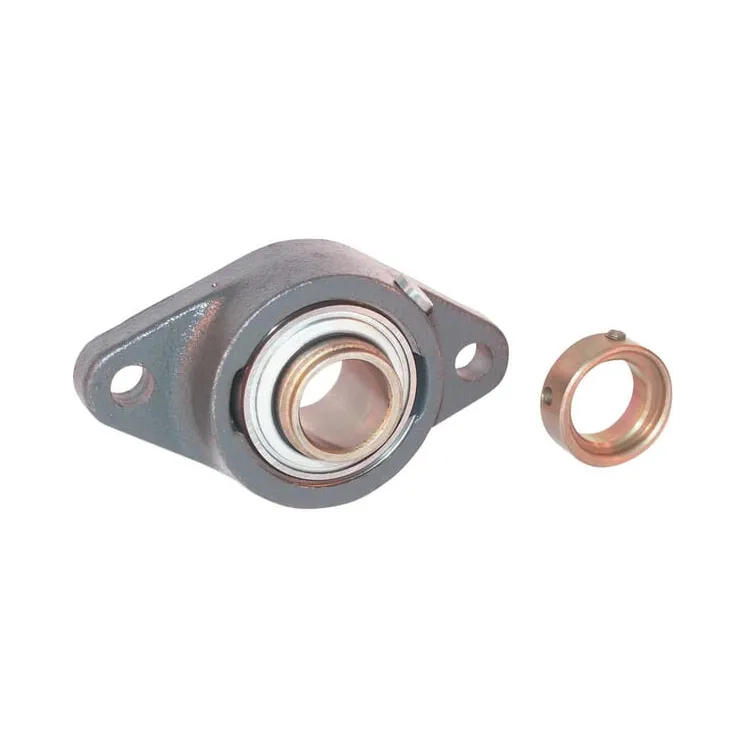

Dzīvoklis RCJT RCJT35

Name: Dzīvoklis RCJT RCJT35
Brand: INA/FAG
SKU: RCJT35
Price: 65.98 EUR
Availability: InStock

Apmaksas iespējas

65,98 €

AR PVN

4-5 Darba dienas

Dzīvoklis RCJT RCJT35 INA/FAG

IR NOLIKTAVĀ

ID: 65168

Apraksts

Part number	RCJT35
EAN	4012802836745
Unit	Each
Properties	Inner bearing has extended inner ring with clamp ring on both sides Can be subsequently lubricated
Technical info	Addition FA125: additional rust protection
Housing type	Oval flange
dBearing inside diameter	35 mm
Consists of	Bearing block Clamp ring
Total length	92 mm
Housing width	155 mm
UTotal height	53.5 mm
THousing height	30.5 mm
LBearing inner ring width	51.1 mm
Locking ring outside diameter	51 mm
Bearing balls distance to locking side end	21 mm
MMounting holes distance	130 mm
KMounting holes diameter	14 mm
Grease nipple thread diameter	M6
Weight	1.21 kg
Basic radial load static	15300 N
Basic radial load dynamic	25500 N
Original number equivalent	RCJT35-N
