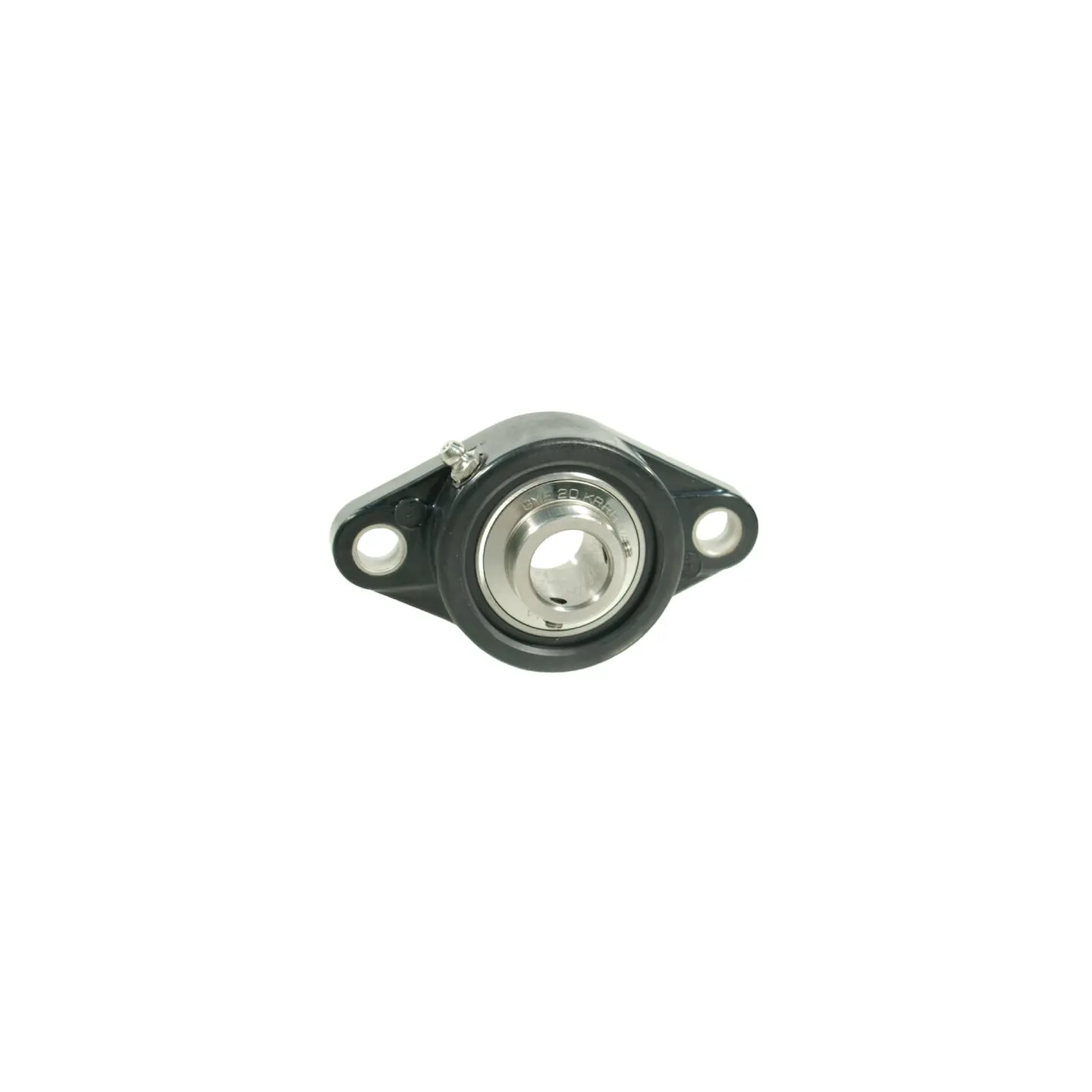

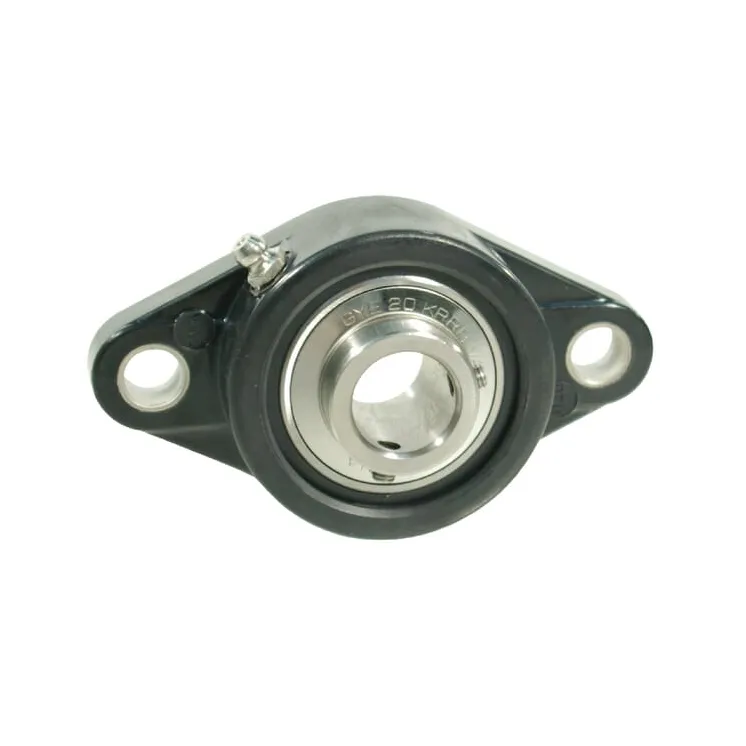

Plastmasas gultņa vāks KLT RCJTY30TVVA

Name: Plastmasas gultņa vāks KLT RCJTY30TVVA
Brand: INA/FAG
SKU: RCJTY30TVVA
Price: 112.68 EUR
Availability: InStock

Apmaksas iespējas

112,68 €

AR PVN

4-5 Darba dienas

Plastmasas gultņa vāks KLT RCJTY30TVVA INA/FAG

IR NOLIKTAVĀ

ID: 65173

Apraksts

Part number	RCJTY30TVVA
EAN	4054366714978
Unit	Each
Application range	Corrosive environment Feed industry
Properties	Plastic bearing housing Stainless steel inner bearing Inner bearing has extended inner ring with 2 adjusting screws on both sides Subsequent lubrication possible Pre-lubricated with NSF-H1-approved lubricant
Housing type	Oval flange
Bearing inside diameter	30 mm
Consists of	Bearing block End cap
HTotal length	80 mm
LHousing width	148 mm
Total height	40.2 mm
Total width	80 mm
Mounting holes distance	117 mm
NMounting holes diameter	11 mm
QGrease nipple thread diameter	M28
Weight	0.42 kg
Basic radial load static	10700 N
Basic radial load dynamic	18700 N
Original number equivalent	RCJTY30-TV-VA-HLA
