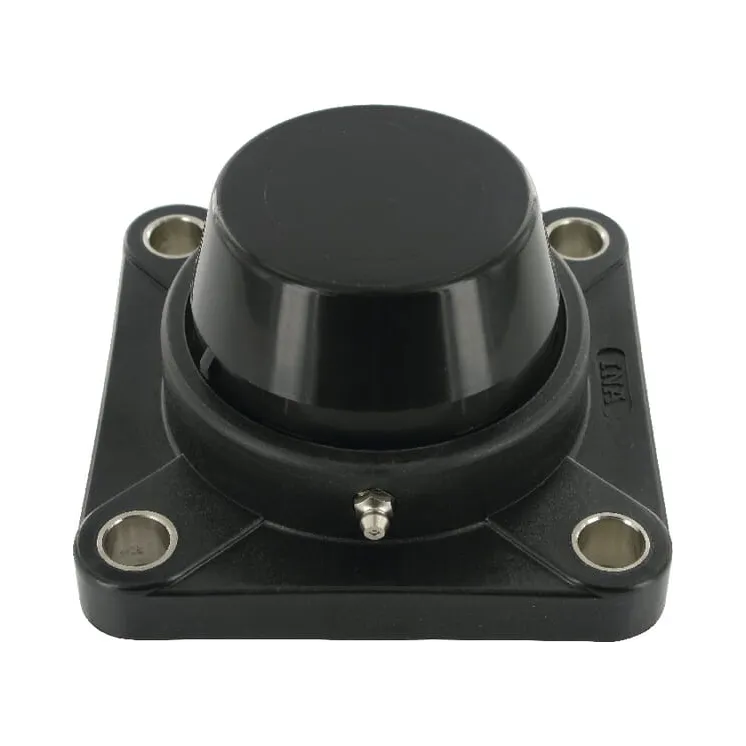

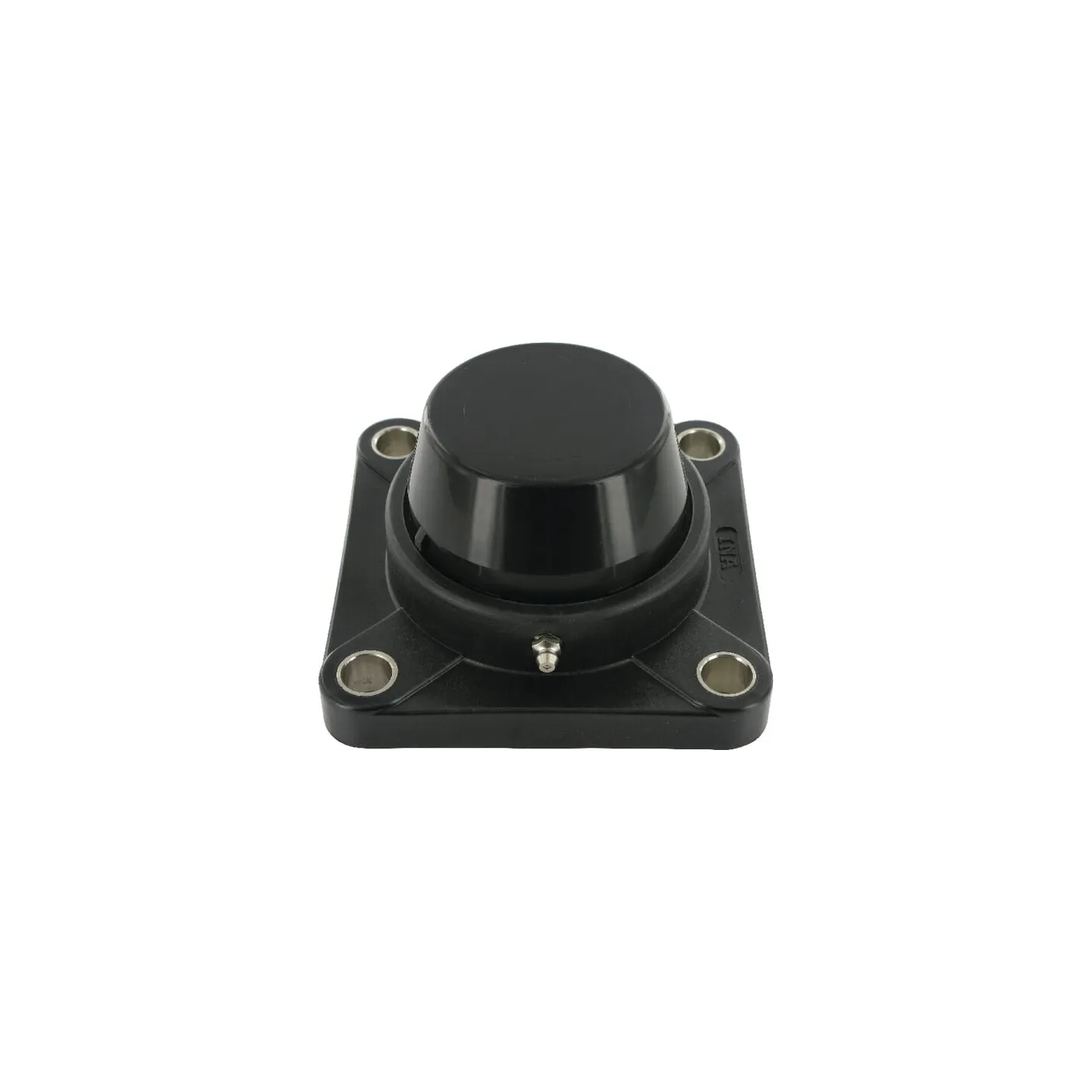

Plastmasas gultņa vāks KLF RCJY40TVVA KLF40CSVA

Name: Plastmasas gultņa vāks KLF RCJY40TVVA KLF40CSVA
Brand: INA/FAG
SKU: RCJY40TVVA
Price: 214.46 EUR
Availability: BackOrder

Apmaksas iespējas

214,46 €

AR PVN

Pēc pieprasījuma

Plastmasas gultņa vāks KLF RCJY40TVVA INA/FAG KLF40CSVA

Uz pasūtījumu

ID: 65175

Apraksts

Part number	RCJY40TVVA
EAN	4054366719621
Unit	Each
Application range	Corrosive environment Feed industry
Properties	Stainless steel rust-free inner bearing Inner bearing has extended inner ring with 2 adjusting screws on both sides Can be subsequently lubricated Pre-lubricated with NSF-H1-approved lubricant
Housing type	Square flange
dBearing inside diameter	40 mm
Consists of	• Bearing block End cap
Total length	130 mm
Housing width	130 mm
Total height	53.2 mm
Total width	49.2 mm
AHousing height	37.5 mm
BBearing inner ring width	49.2 mm
Bearing balls distance to locking side end	23 mm
Mounting holes distance	102 mm
Mounting holes diameter	14 mm
Grease nipple thread diameter	M6
Weight	1.1 kg
Housing material	Plastic
Bearing material	Stainless steel
Basic radial load static	18900 N
Basic radial load dynamic	31500 N
Original number equivalent	RCJY40-TV-VA-HLA
