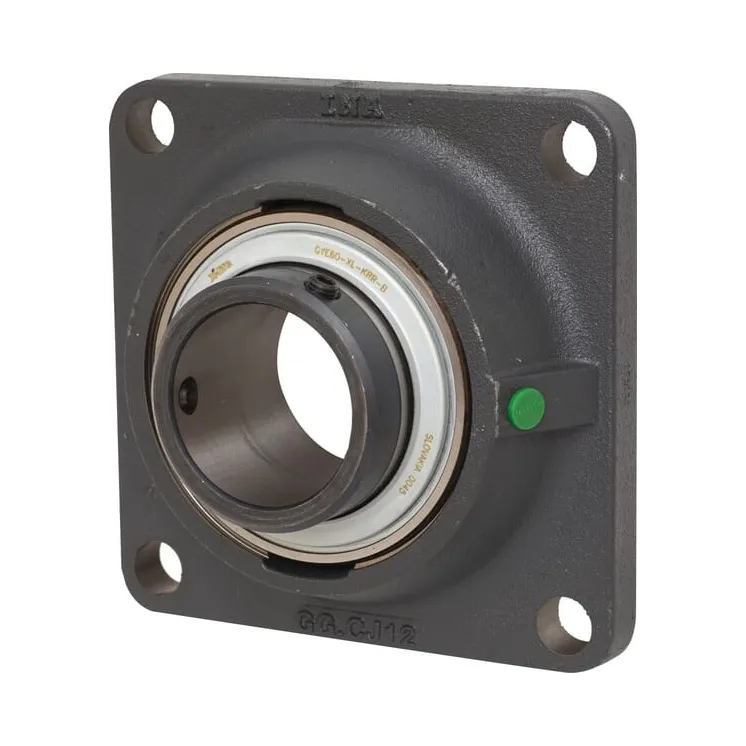

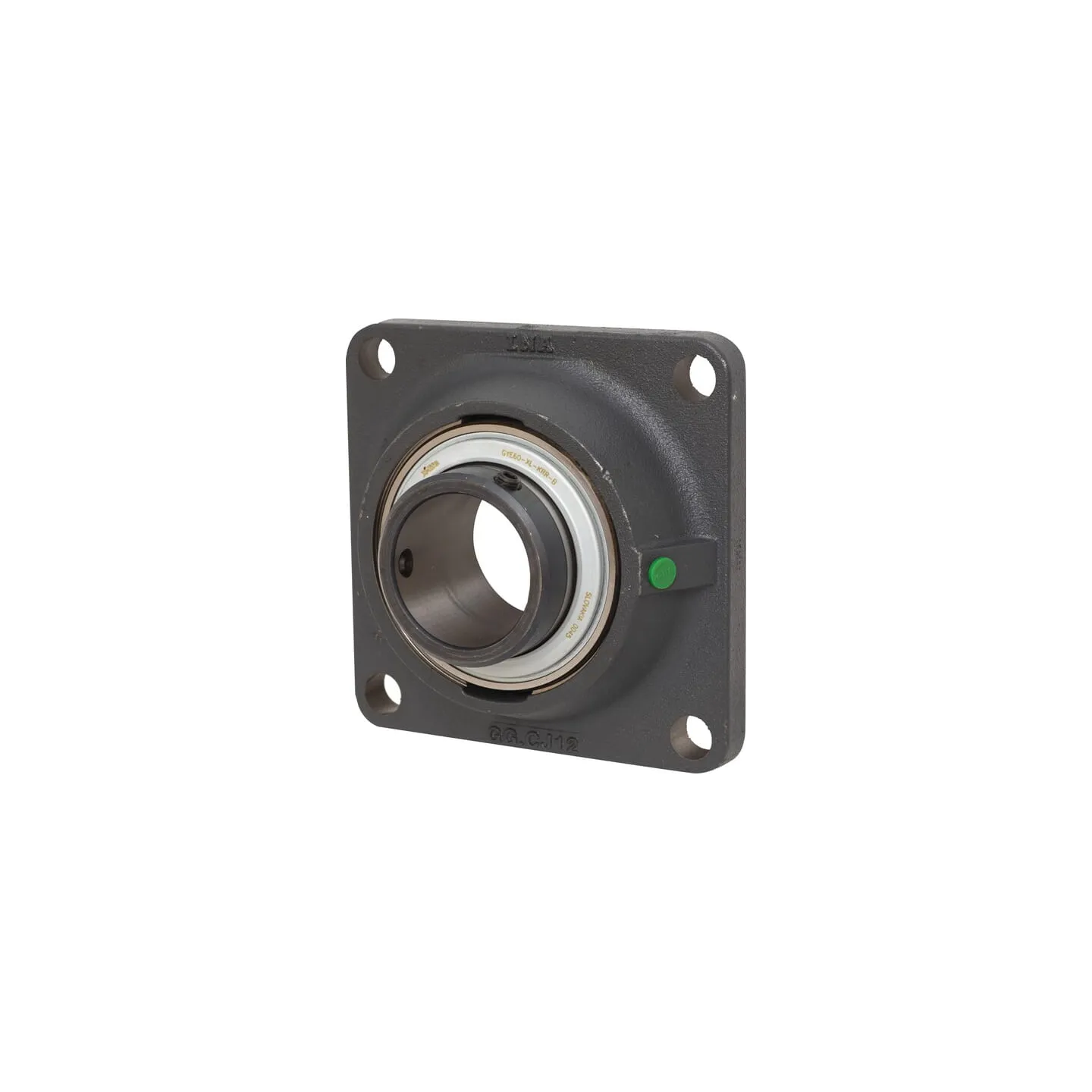

Pilnīgs kvadrātveida atloka gultnis RCJY60N

Name: Pilnīgs kvadrātveida atloka gultnis RCJY60N
Brand: INA/FAG
SKU: RCJY60N
Price: 120.93 EUR
Availability: InStock

Apmaksas iespējas

120,93 €

AR PVN

4-5 Darba dienas

Pilnīgs kvadrātveida atloka gultnis RCJY60N INA/FAG

IR NOLIKTAVĀ

ID: 65176

Apraksts

Part number	RCJY60N
EAN	4054372845116
Unit	Each
Properties	Inner bearing has extended inner ring with 2 adjusting screws on both sides Can be subsequently lubricated
Housing type	Square flange
dBearing inside diameter	60 mm
ATotal length	175 mm
Housing width	175 mm
UTotal height	73.7 mm
Total width	73.7 mm
THousing height	46 mm
LBearing inner ring width	65.1 mm
Bearing balls distance to locking side end	34 mm
Mounting holes distance	143 mm
KMounting holes diameter	18 mm
Grease nipple thread diameter	M6
Weight	3.89 kg
Basic radial load static	36000 N
Basic radial load dynamic	56000 N
Original number equivalent	RCJY60-N
