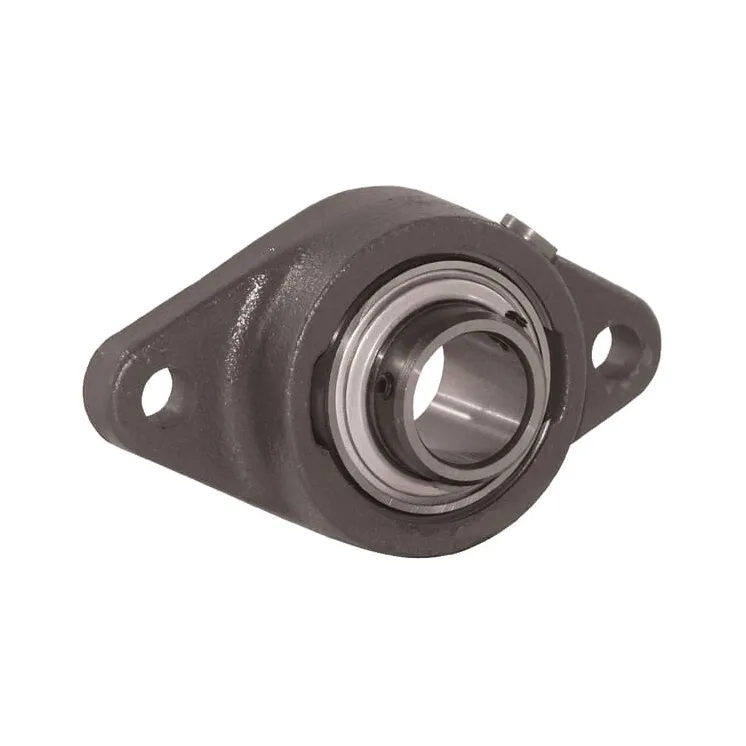

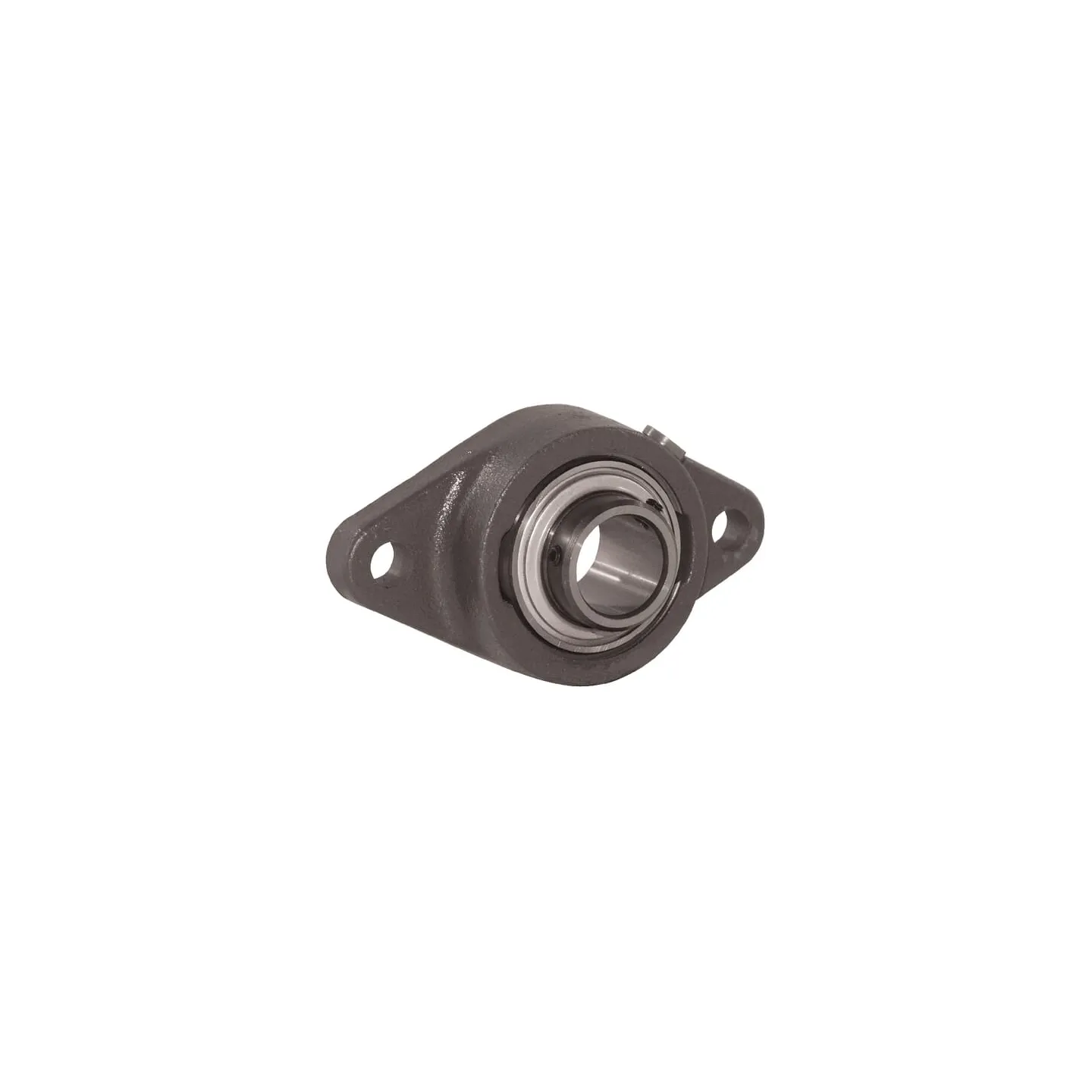

Dzīvojamā vienība RCJTY RCJTY45

Name: Dzīvojamā vienība RCJTY RCJTY45
Brand: INA/FAG
SKU: RCJTY45
Price: 89.55 EUR
Availability: InStock

Apmaksas iespējas

89,55 €

AR PVN

4-5 Darba dienas

Dzīvojamā vienība RCJTY RCJTY45 INA/FAG

IR NOLIKTAVĀ

ID: 65178

Apraksts

Part number	RCJTY45
EAN	4054372939426
Unit	Each
Properties	Inner bearing has extended inner ring with 2 adjusting screws on both sides Can be subsequently lubricated
Housing type	Oval flange
dBearing inside diameter	45 mm
BTotal length	111 mm
AHousing width	180 mm
Total height	54.2 mm
Total width	49.2 mm
THousing height	35 mm
LBearing inner ring width	49.2 mm
Bearing balls distance to locking side end	24 mm
Mounting holes distance	148.5 mm
KMounting holes diameter	14 mm
Grease nipple thread diameter	M6
Weight	1.8 kg
Basic radial load static	20400 N
Basic radial load dynamic	34500 N
Original number equivalent	RCJTY45
