Dzīvojamā vienība RCJ RCJ45

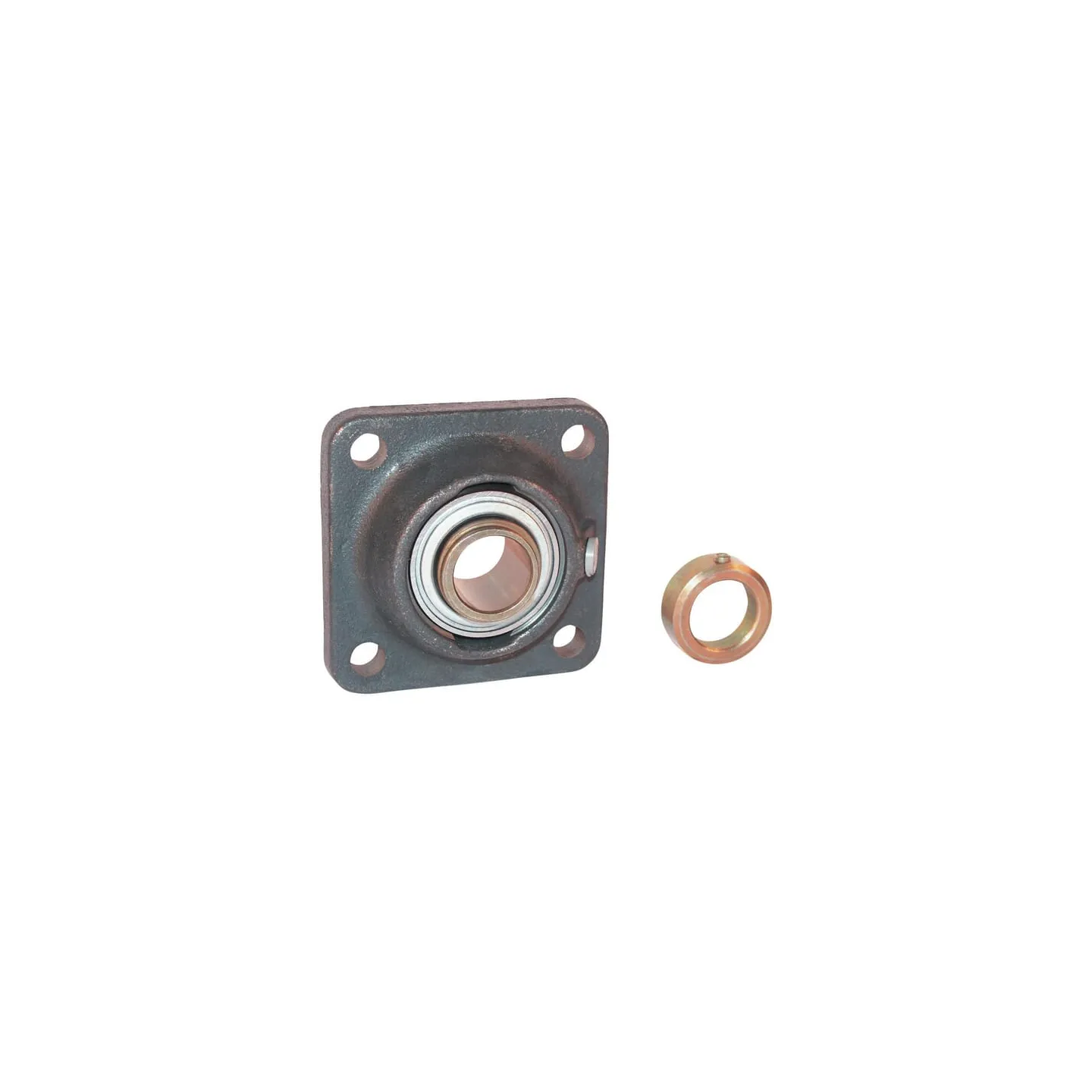

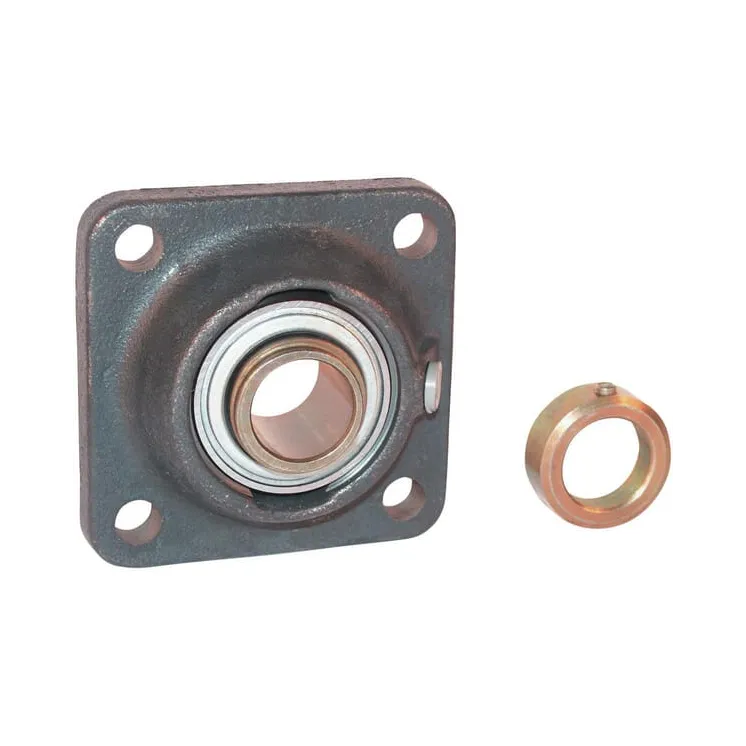

Name: Dzīvojamā vienība RCJ RCJ45
Brand: INA/FAG
SKU: RCJ45
Price: 94.28 EUR
Availability: BackOrder

Apmaksas iespējas

94,28 €

AR PVN

Pēc pieprasījuma

Dzīvojamā vienība RCJ RCJ45 INA/FAG

Uz pasūtījumu

ID: 65179

Apraksts

Part number	RCJ45
EAN	4054372939396
Unit	Each
Properties	Inner bearing has extended inner ring with clamp ring on both sides Can be subsequently lubricated
Housing type	Square flange
dBearing inside diameter	45 mm
Consists of	• Bearing block Clamp ring
Total length	137 mm
Housing width	137 mm
UTotal height	58.9 mm
Total width	59.1 mm
THousing height	35 mm
LBearing inner ring width	56.5 mm
CFlange thickness	40 mm
Locking ring outside diameter	63 mm
Bearing balls distance to locking side end	24 mm
MMounting holes distance	105 mm
Mounting holes diameter	14 mm
Grease nipple thread diameter	M6
Weight	2.38 kg
Basic radial load static	20400 N
Basic radial load dynamic	34500 N
Original number equivalent	RCJ45
