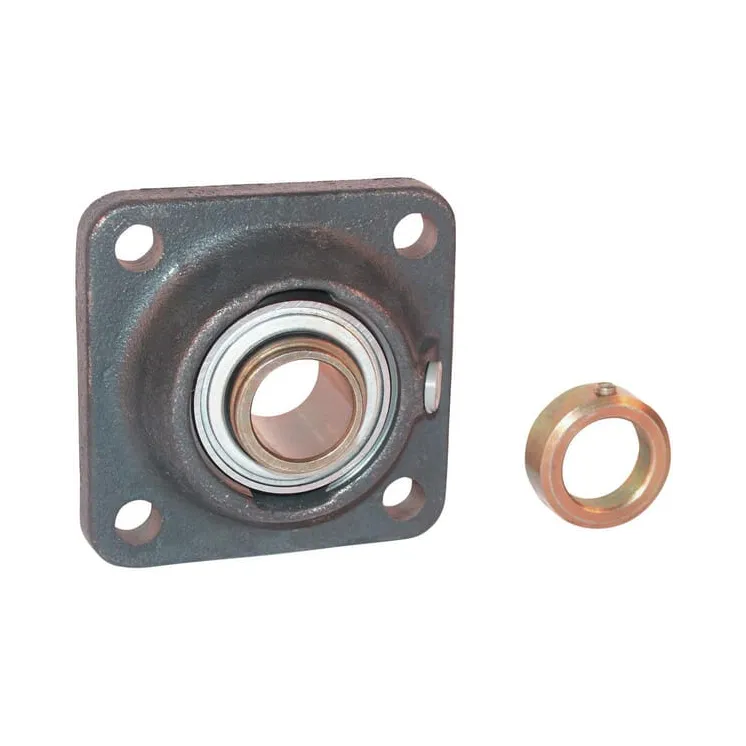

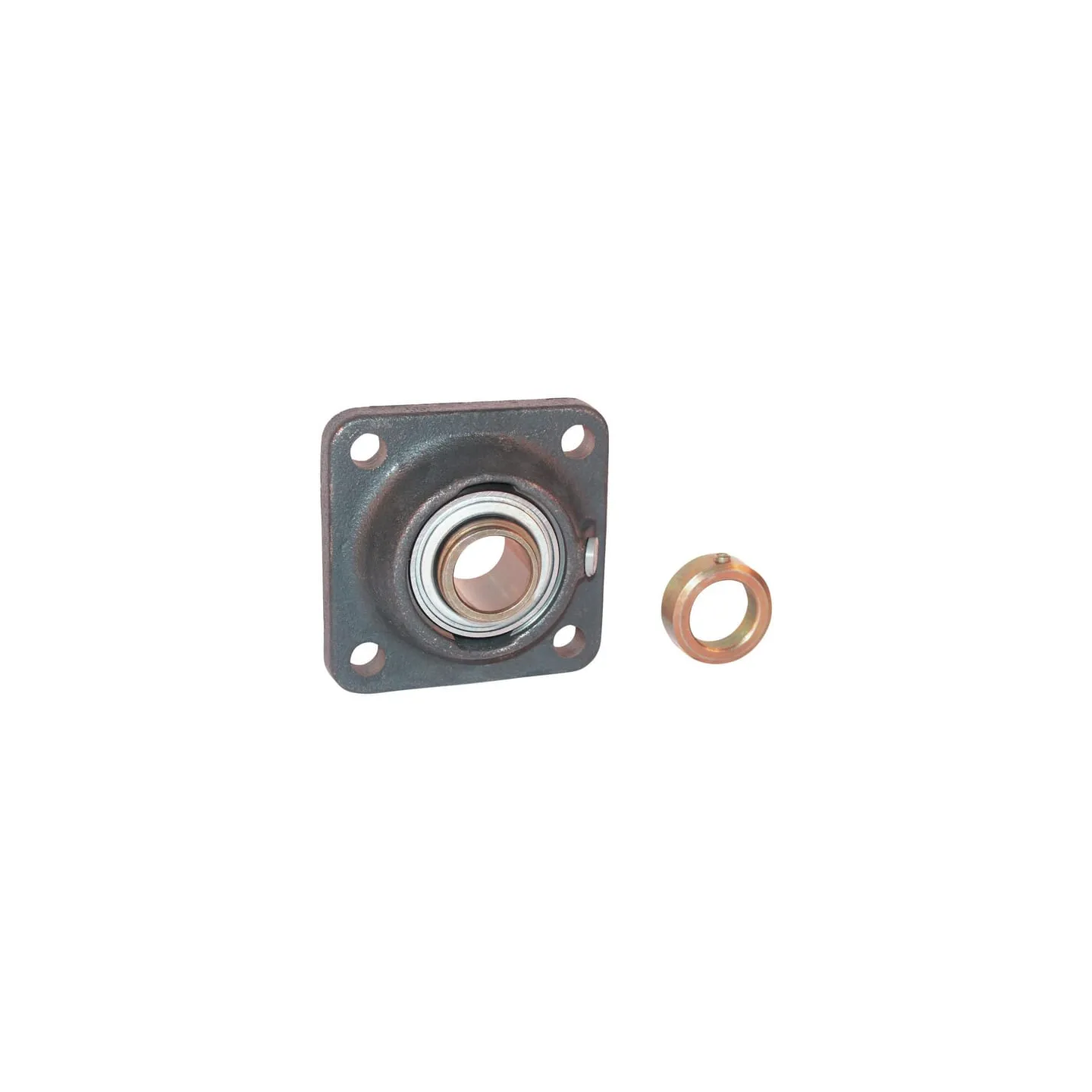

Dzīvojamā vienība RCJ RCJ80

Name: Dzīvojamā vienība RCJ RCJ80
Brand: INA/FAG
SKU: RCJ80
Price: 297.78 EUR
Availability: InStock

Apmaksas iespējas

297,78 €

AR PVN

4-5 Darba dienas

Dzīvojamā vienība RCJ RCJ80 INA/FAG

IR NOLIKTAVĀ

ID: 65183

Apraksts

Part number	RCJ80
EAN	4054372849084
Unit	Each
Properties	Inner bearing has extended inner ring with clamp ring on both sides Can be subsequently lubricated
Housing type	Square flange
dBearing inside diameter	80 mm
Consists of	• Bearing block Clamp ring
Total length	197 mm
Housing width	197 mm
UTotal height	88.9 mm
Total width	88.9 mm
THousing height	55.8 mm
LBearing inner ring width	70.7 mm
CFlange thickness	17 mm
Locking ring outside diameter	108 mm
PBearing balls distance to mounting surface	41.3 mm
MMounting holes distance	153 mm
Mounting holes diameter	23 mm
Grease nipple thread diameter	M6
Weight	6.25 kg
Basic radial load static	54000 N
Basic radial load dynamic	76000 N
Original number equivalent	RCJ80
