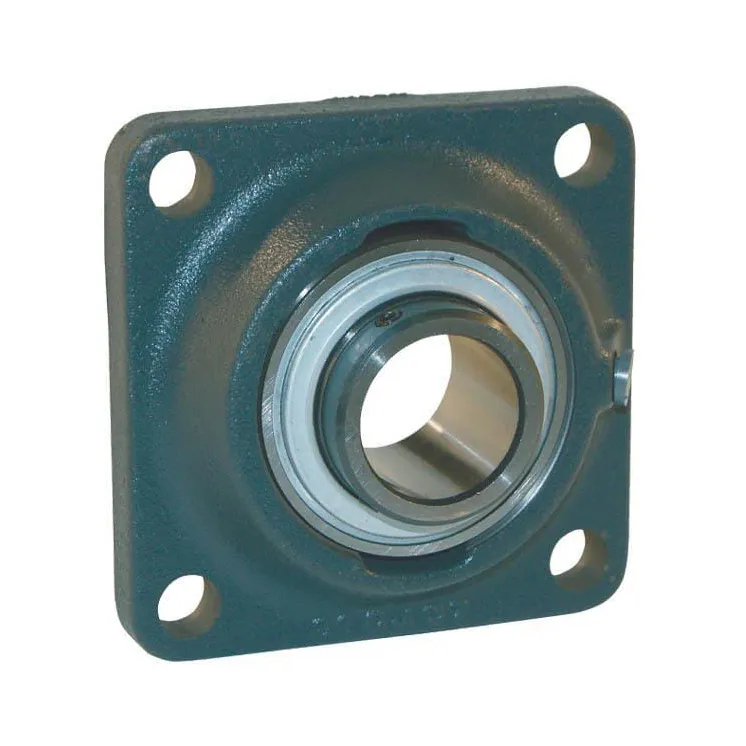

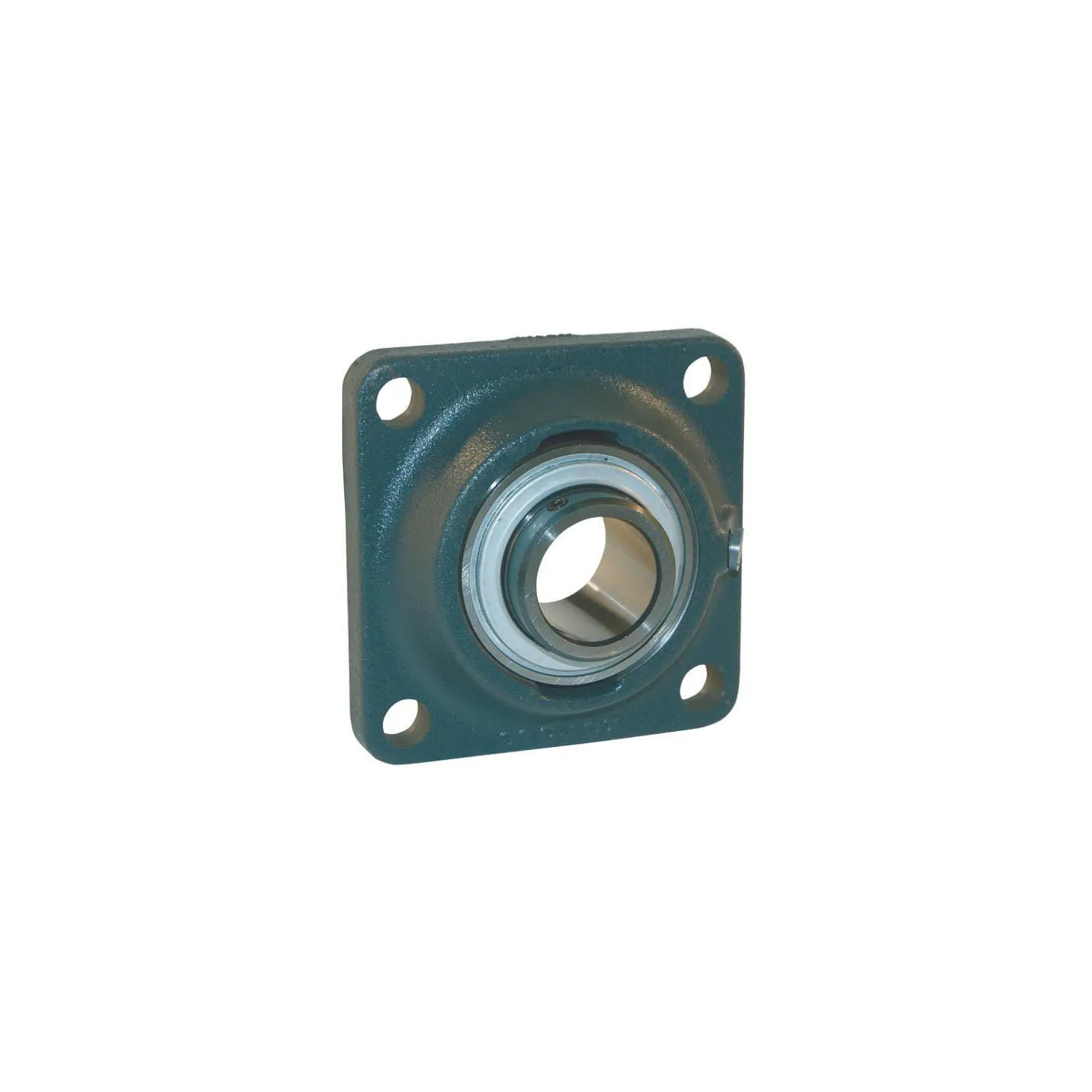

Dzīvojamā vienība RCJY RCJY30

Name: Dzīvojamā vienība RCJY RCJY30
Brand: INA/FAG
SKU: RCJY30
Price: 42.31 EUR
Availability: InStock

Apmaksas iespējas

42,31 €

AR PVN

4-5 Darba dienas

Dzīvojamā vienība RCJY RCJY30 INA/FAG

IR NOLIKTAVĀ

ID: 65185

Apraksts

Part number	RCJY30
EAN	4012802797008
Unit	Each
Properties	Inner bearing has extended inner ring with 2 adjusting screws on both sides Can be subsequently lubricated
Housing type	Square flange
dBearing inside diameter	30 mm
ATotal length	108 mm
Housing width	108 mm
UTotal height	42.2 mm
Total width	38.1 mm
THousing height	29 mm
LBearing inner ring width	38.1 mm
Bearing balls distance to locking side end	20 mm
Mounting holes distance	82.5 mm
KMounting holes diameter	11.5 mm
Grease nipple thread diameter	M6
Weight	1.1 kg
Basic radial load static	11300 N
Basic radial load dynamic	19500 N
Original number equivalent	RCJY30-N
