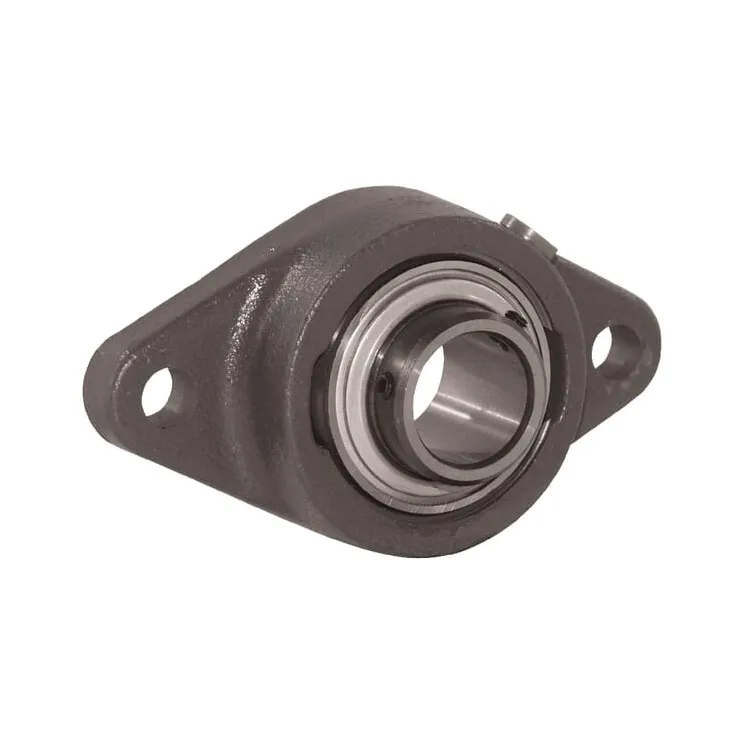

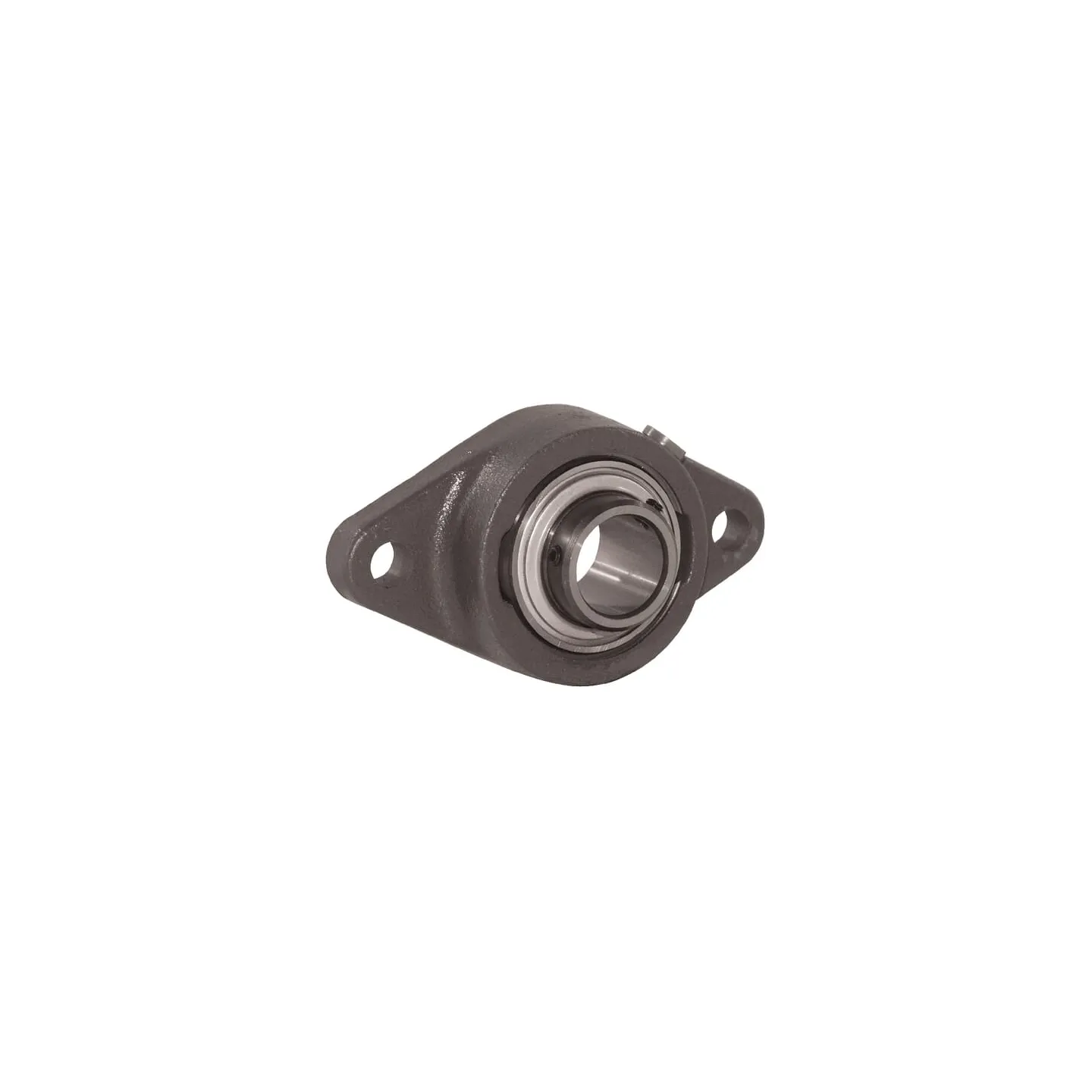

Dzīvojamā vienība RCJTY RCJTY25

Name: Dzīvojamā vienība RCJTY RCJTY25
Brand: INA/FAG
SKU: RCJTY25
Price: 36.83 EUR
Availability: InStock

Apmaksas iespējas

36,83 €

AR PVN

4-5 Darba dienas

Dzīvojamā vienība RCJTY RCJTY25 INA/FAG

IR NOLIKTAVĀ

ID: 65186

Apraksts

Part number	RCJTY25
EAN	4012802797817
Unit	Each
Properties	Inner bearing has extended inner ring with 2 adjusting screws on both sides Can be subsequently lubricated
Housing type	Oval flange
dBearing inside diameter	25 mm
BTotal length	70 mm
AHousing width	124 mm
Total height	38.8 mm
Total width	34.1 mm
THousing height	29 mm
LBearing inner ring width	34.1 mm
Bearing balls distance to locking side end	19 mm
Mounting holes distance	99 mm
KMounting holes diameter	11.5 mm
Grease nipple thread diameter	M6
Weight	0.58 kg
Basic radial load static	7800 N
Basic radial load dynamic	14900 N
Original number equivalent	RCJTY25-N
