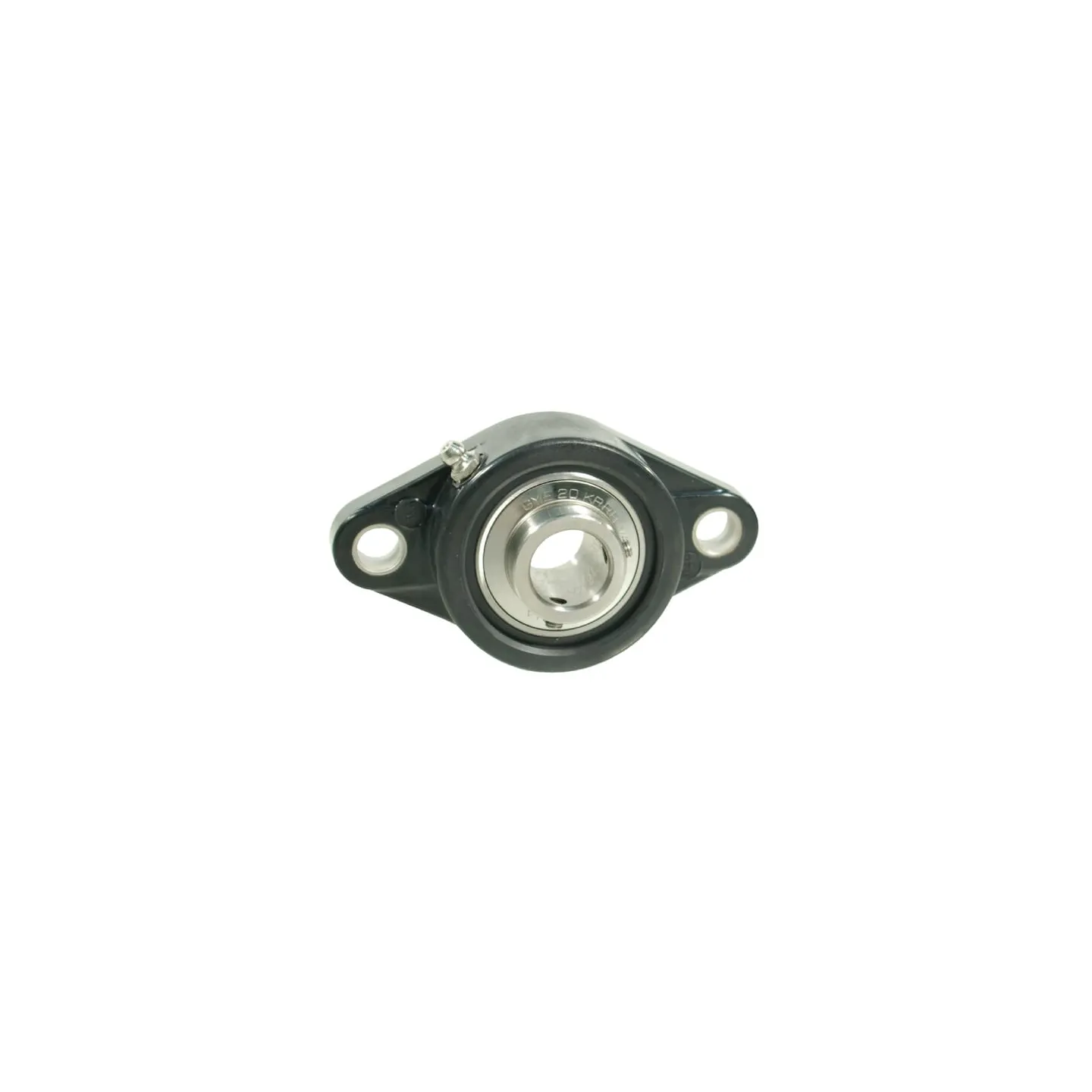

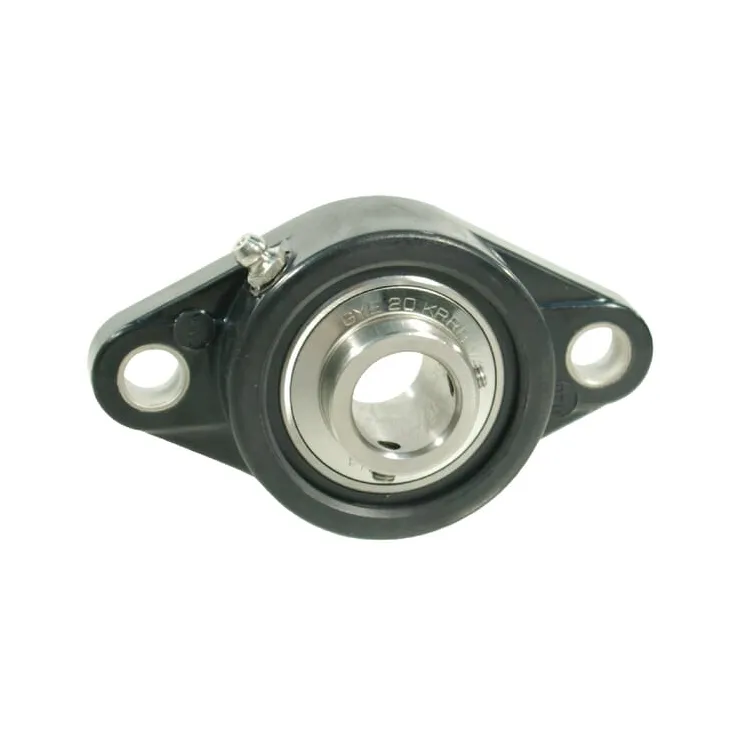

Plastmasas gultņa vāks KLT RCJTY25TVVA

Name: Plastmasas gultņa vāks KLT RCJTY25TVVA
Brand: INA/FAG
SKU: RCJTY25TVVA
Price: 100.2 EUR
Availability: InStock

Apmaksas iespējas

100,20 €

AR PVN

4-5 Darba dienas

Plastmasas gultņa vāks KLT RCJTY25TVVA INA/FAG

IR NOLIKTAVĀ

ID: 65190

Apraksts

Part number	RCJTY25TVVA
EAN	4054366714961
Unit	Each
Application range	Corrosive environment Feed industry
Properties	Plastic bearing housing Stainless steel inner bearing Inner bearing has extended inner ring with 2 adjusting screws on both sides Subsequent lubrication possible Pre-lubricated with NSF-H1-approved lubricant
Housing type	Oval flange
Bearing inside diameter	25 mm
Consists of	Bearing block End cap
HTotal length	70 mm
LHousing width	130 mm
Total height	36.8 mm
Total width	70 mm
Mounting holes distance	99 mm
NMounting holes diameter	11 mm
QGrease nipple thread diameter	M28
Weight	0.31 kg
Basic radial load static	7500 N
Basic radial load dynamic	13400 N
Original number equivalent	RCJTY25-TV-VA-HLA
