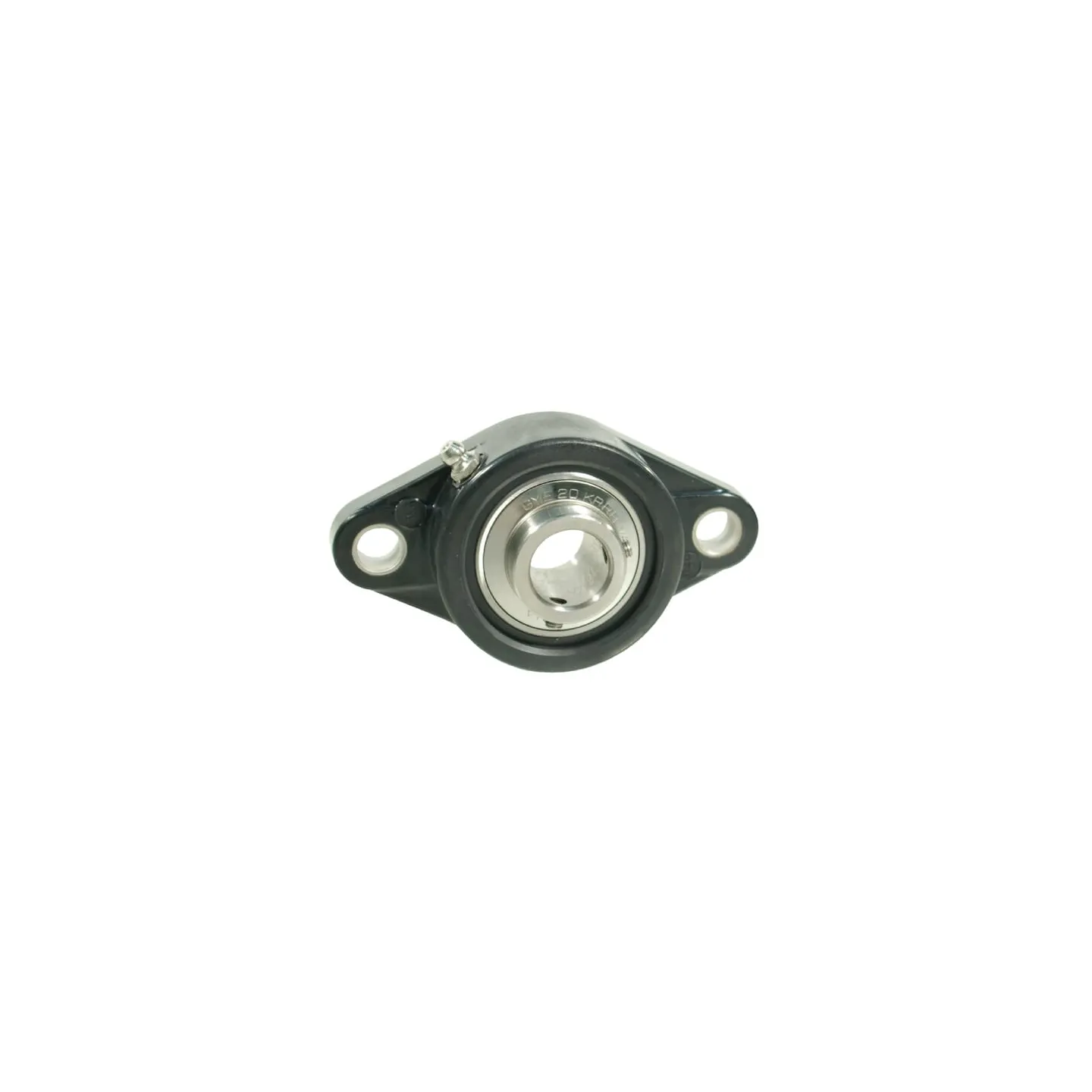

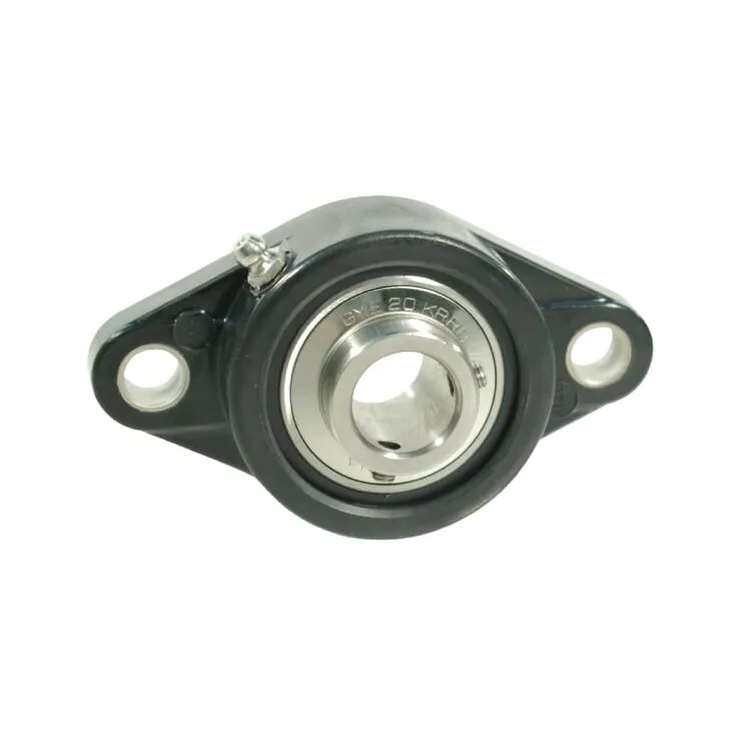

Plastmasas gultņa vāks KLT RCJTY35TVVA

Name: Plastmasas gultņa vāks KLT RCJTY35TVVA
Brand: INA/FAG
SKU: RCJTY35TVVA
Price: 186.27 EUR
Availability: InStock

Apmaksas iespējas

186,27 €

AR PVN

4-5 Darba dienas

Plastmasas gultņa vāks KLT RCJTY35TVVA INA/FAG

IR NOLIKTAVĀ

ID: 65191

Apraksts

Part number	RCJTY35TVVA
EAN	4054366714985
Unit	Each
Application range	Corrosive environment Feed industry
Properties	Plastic bearing housing Stainless steel inner bearing Inner bearing has extended inner ring with 2 adjusting screws on both sides Subsequent lubrication possible Pre-lubricated with NSF-H1-approved lubricant
Housing type	Oval flange
Bearing inside diameter	35 mm
Consists of	Bearing block End cap
HTotal length	90 mm
LHousing width	163 mm
Total height	43.4 mm
Total width	90 mm
Mounting holes distance	130 mm
NMounting holes diameter	13 mm
QGrease nipple thread diameter	M28
Weight	0.64 kg
Basic radial load static	14600 N
Basic radial load dynamic	24600 N
Original number equivalent	RCJTY35-TV-VA-HLA
