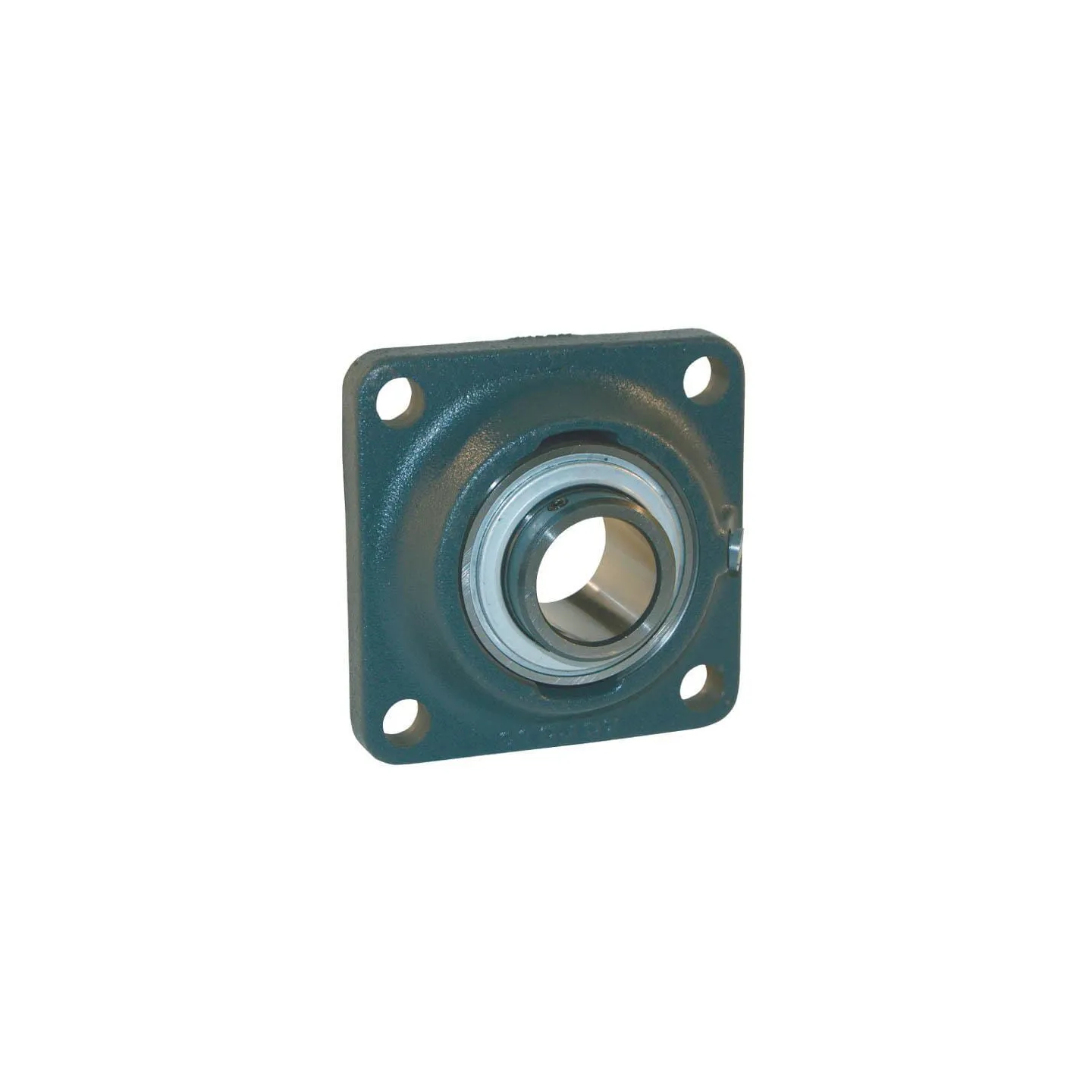

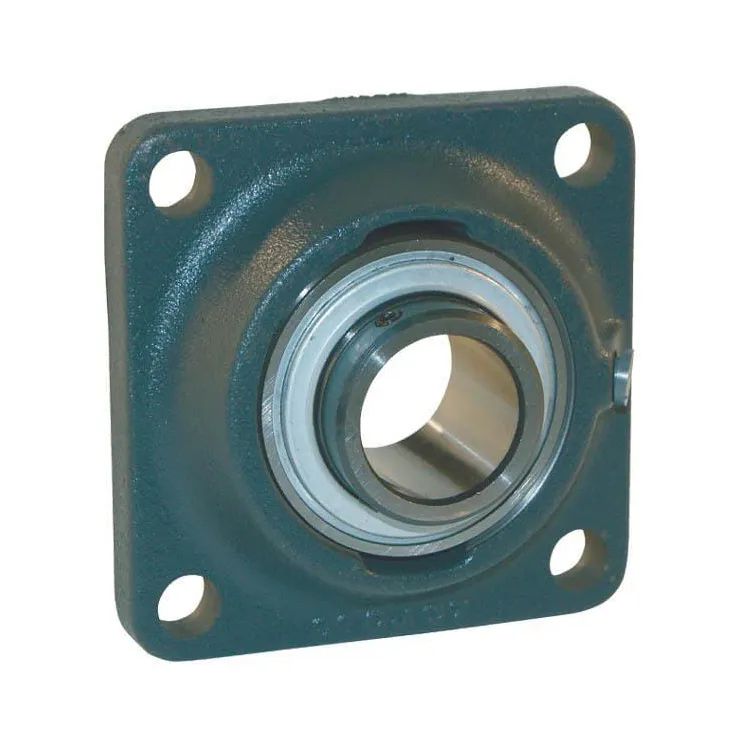

Dzīvojamā vienība RCJY RCJY25

Name: Dzīvojamā vienība RCJY RCJY25
Brand: INA/FAG
SKU: RCJY25
Price: 37.84 EUR
Availability: BackOrder

Apmaksas iespējas

37,84 €

AR PVN

Pēc pieprasījuma

Dzīvojamā vienība RCJY RCJY25 INA/FAG

Uz pasūtījumu

ID: 65195

Apraksts

Part number	RCJY25
EAN	4012802796414
Unit	Each
Properties	Inner bearing has extended inner ring with 2 adjusting screws on both sides Can be subsequently lubricated
Housing type	Square flange
dBearing inside diameter	25 mm
ATotal length	95 mm
Housing width	95 mm
UTotal height	38.8 mm
Total width	34.1 mm
THousing height	29 mm
LBearing inner ring width	34.1 mm
Bearing balls distance to locking side end	19 mm
Mounting holes distance	70 mm
KMounting holes diameter	11.5 mm
Grease nipple thread diameter	M6
Weight	0.76 kg
Basic radial load static	7800 N
Basic radial load dynamic	14000 N
Original number equivalent	RCJY25-N
