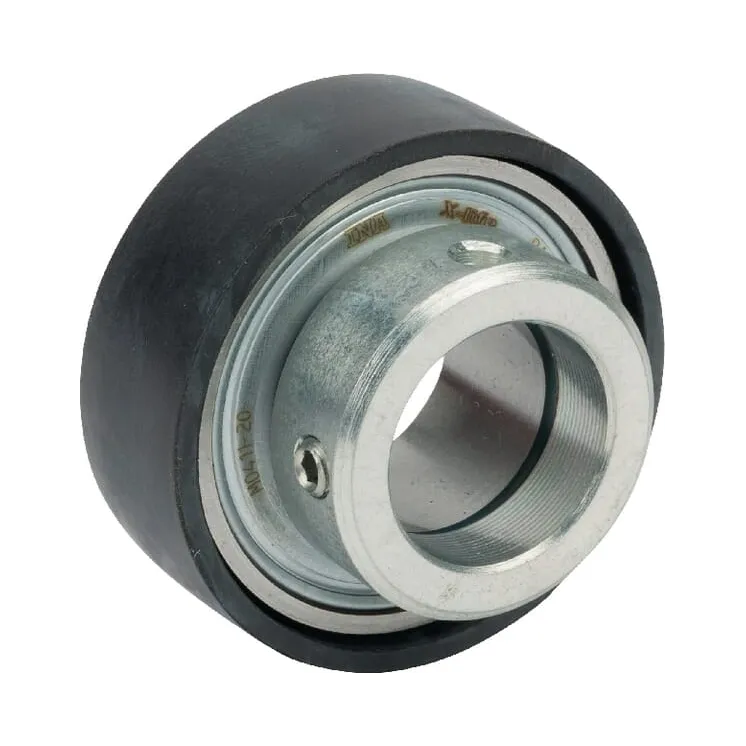

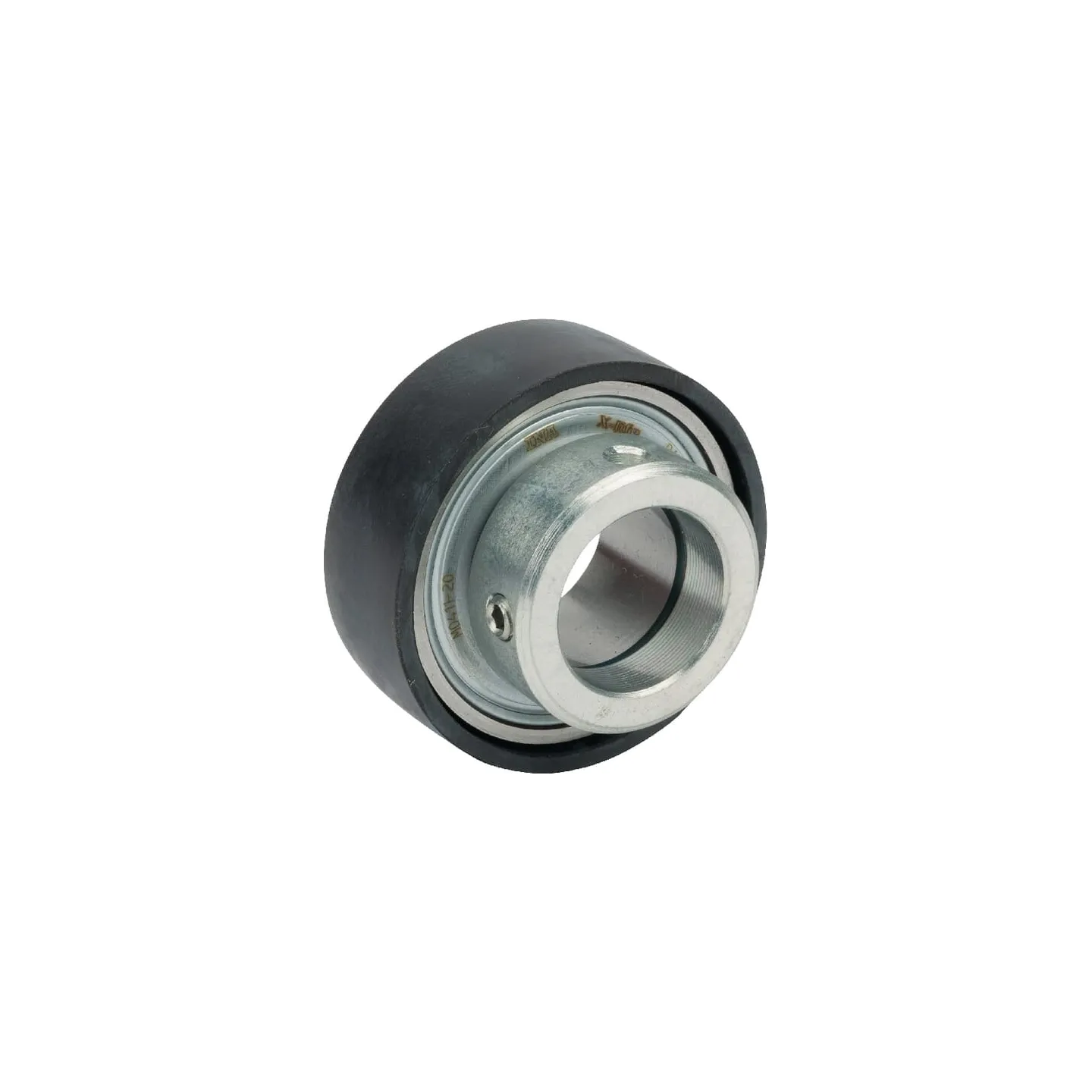

Gultņa ieliktnis 20x46x18,3mm RCRA2046FA106

Name: Gultņa ieliktnis 20x46x18,3mm RCRA2046FA106
Brand: INA/FAG
SKU: RCRA2046FA106
Price: 38.14 EUR
Availability: InStock

Apmaksas iespējas

38,14 €

AR PVN

4-5 Darba dienas

Gultņa ieliktnis 20x46x18,3mm RCRA2046FA106 INA/FAG

IR NOLIKTAVĀ

ID: 65197

Apraksts

Part number	RCRA2046FA106
EAN	4012802790092
Unit	Each
Application range	Mobile mechanical engineering Stationary mechanical engineering
Properties	One-sided extended inner ring with clamp ring Flat rubber outer ring P seal Polyamide housing Rubber hardness 70° Shore A
dInside diameter	20 mm
DOutside diameter	46 mm
Consists of	Clamp bearing Clamp ring
Outer ring width	18.3 mm
BInner ring width	24.5 mm
Locking collar and inner ring width	24.5 mm
Locking collar outside diameter	30 mm
Basic radial load static	5000 N
Basic radial load dynamic	10000 N
Ball centre to inner ring end distance	18.6 mm
Original number equivalent	RCRA20/46-FA106
Weight	0.11 kg
