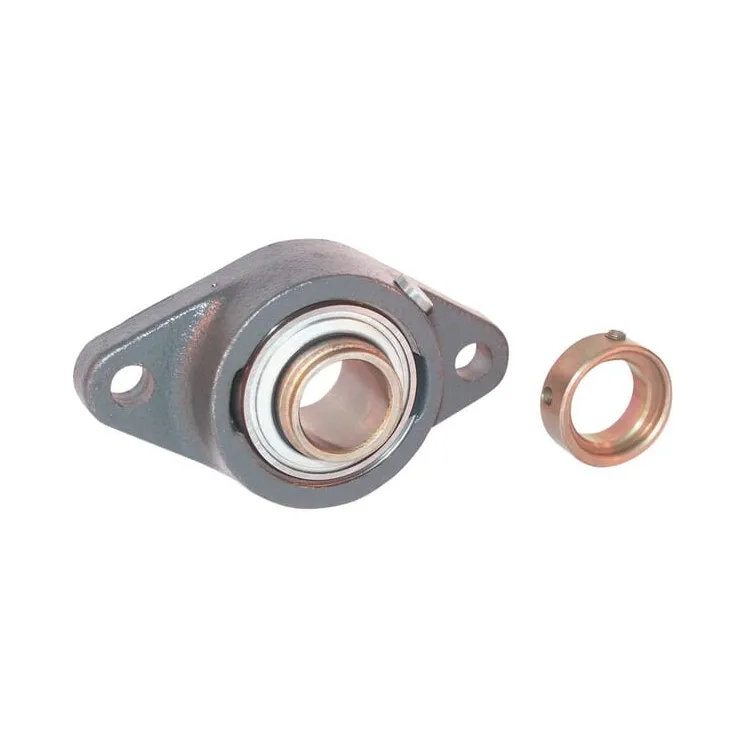

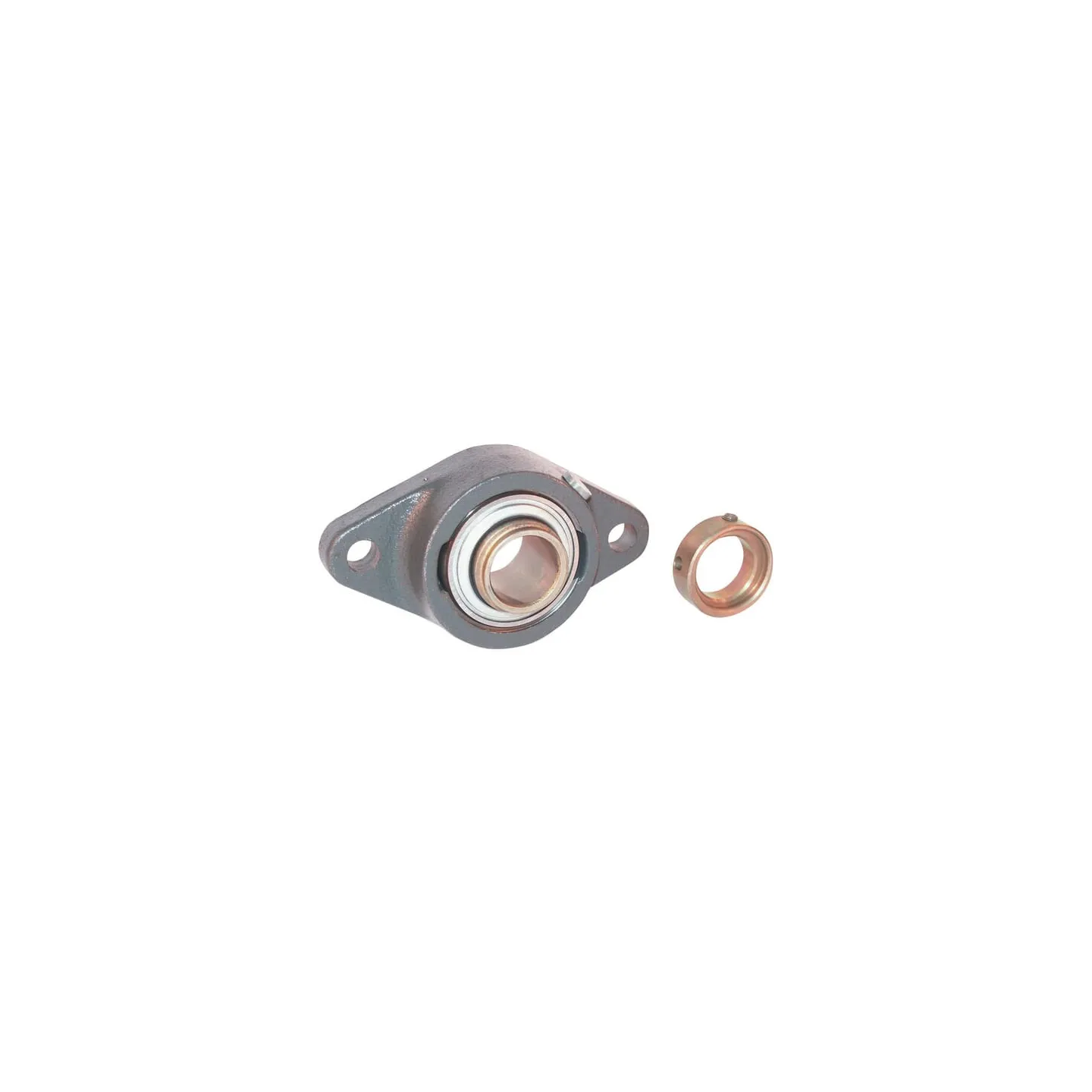

Dzīvoklis RCJT RCJT30

Name: Dzīvoklis RCJT RCJT30
Brand: INA/FAG
SKU: RCJT30
Price: 71.85 EUR
Availability: InStock

Apmaksas iespējas

71,85 €

AR PVN

4-5 Darba dienas

Dzīvoklis RCJT RCJT30 INA/FAG

IR NOLIKTAVĀ

ID: 65198

Apraksts

Part number	RCJT30
EAN	4012802836844
Unit	Each
Properties	Inner bearing has extended inner ring with clamp ring on both sides Can be subsequently lubricated
Technical info	Addition FA125: additional rust protection
Housing type	Oval flange
dBearing inside diameter	30 mm
Consists of	Bearing block Clamp ring
Total length	80 mm
Housing width	142 mm
UTotal height	50.2 mm
THousing height	29 mm
LBearing inner ring width	48.4 mm
Locking ring outside diameter	44 mm
Bearing balls distance to locking side end	20 mm
MMounting holes distance	116.5 mm
KMounting holes diameter	11.5 mm
Grease nipple thread diameter	M6
Weight	0.9 kg
Basic radial load static	11300 N
Basic radial load dynamic	20700 N
Original number equivalent	RCJT30-N
