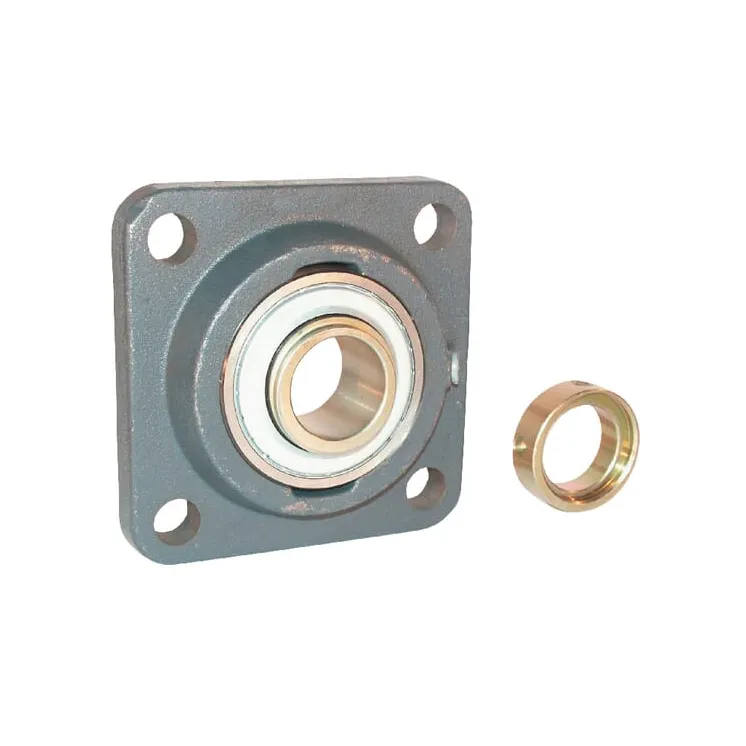

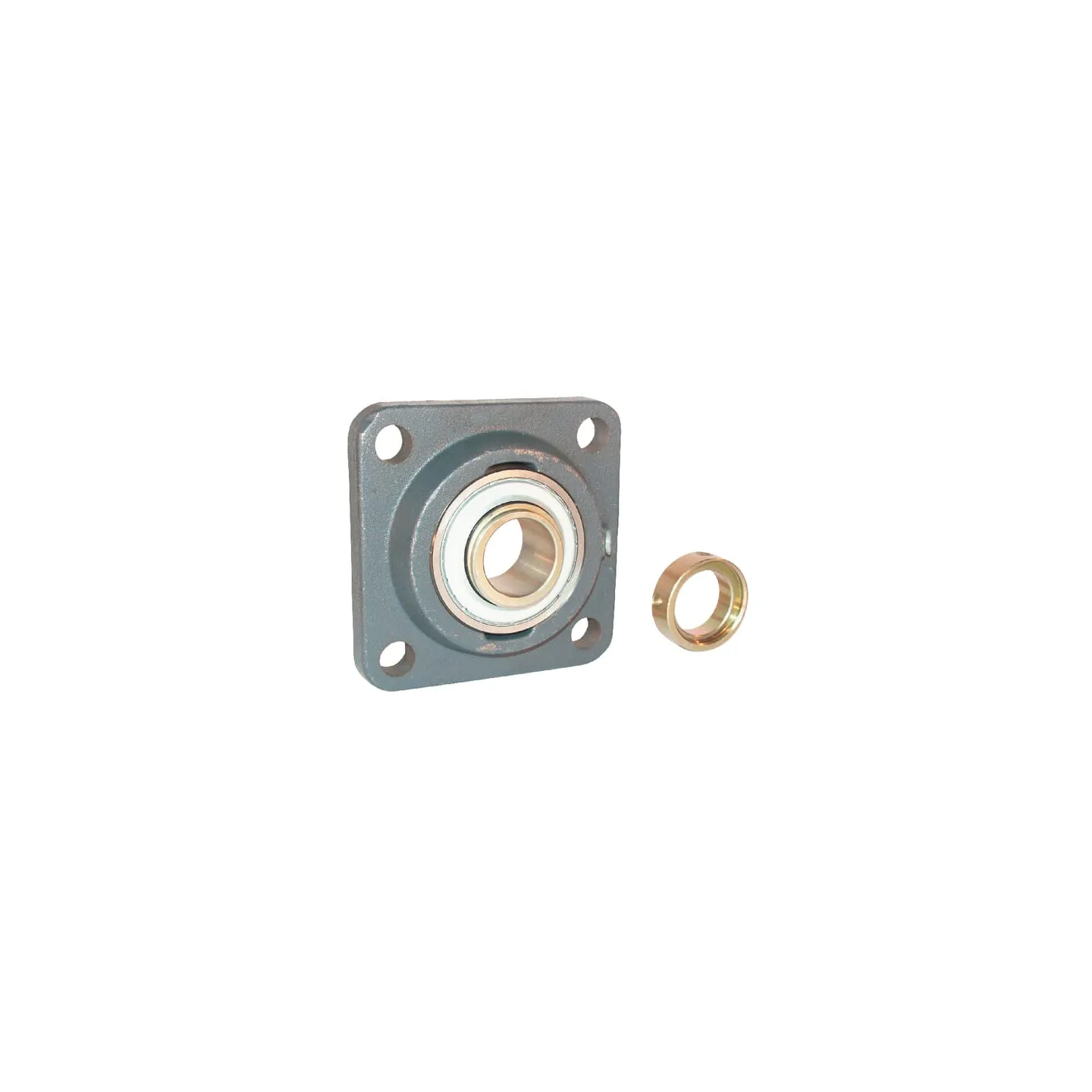

Gultņa vāks kvadrātveida RCJO RCJO50

Name: Gultņa vāks kvadrātveida RCJO RCJO50
Brand: INA/FAG
SKU: RCJO50
Price: 212.55 EUR
Availability: InStock

Apmaksas iespējas

212,55 €

AR PVN

4-5 Darba dienas

Gultņa vāks kvadrātveida RCJO RCJO50 INA/FAG

IR NOLIKTAVĀ

ID: 65199

Apraksts

Part number	RCJO50
EAN	4012802803112
Unit	Each
Application range	Mobile mechanical engineering Stationary mechanical engineering
Properties	Inner bearing has extended inner ring with clamp ring on both sides Subsequent lubrication possible
Housing type	Square flange
dBearing inside diameter	50 mm
Consists of	Bearing block Clamp ring
Total length	175 mm
Housing width	175 mm
UTotal height	70.1 mm
THousing height	42.5 mm
LBearing inner ring width	66.8 mm
Bearing balls distance to locking side end	28 mm
MMounting holes distance	132 mm
Mounting holes diameter	23 mm
Grease nipple thread diameter	M6
Weight	4.7 kg
Basic radial load static	38000 N
Basic radial load dynamic	62000 N
Original number equivalent	RCJO50
