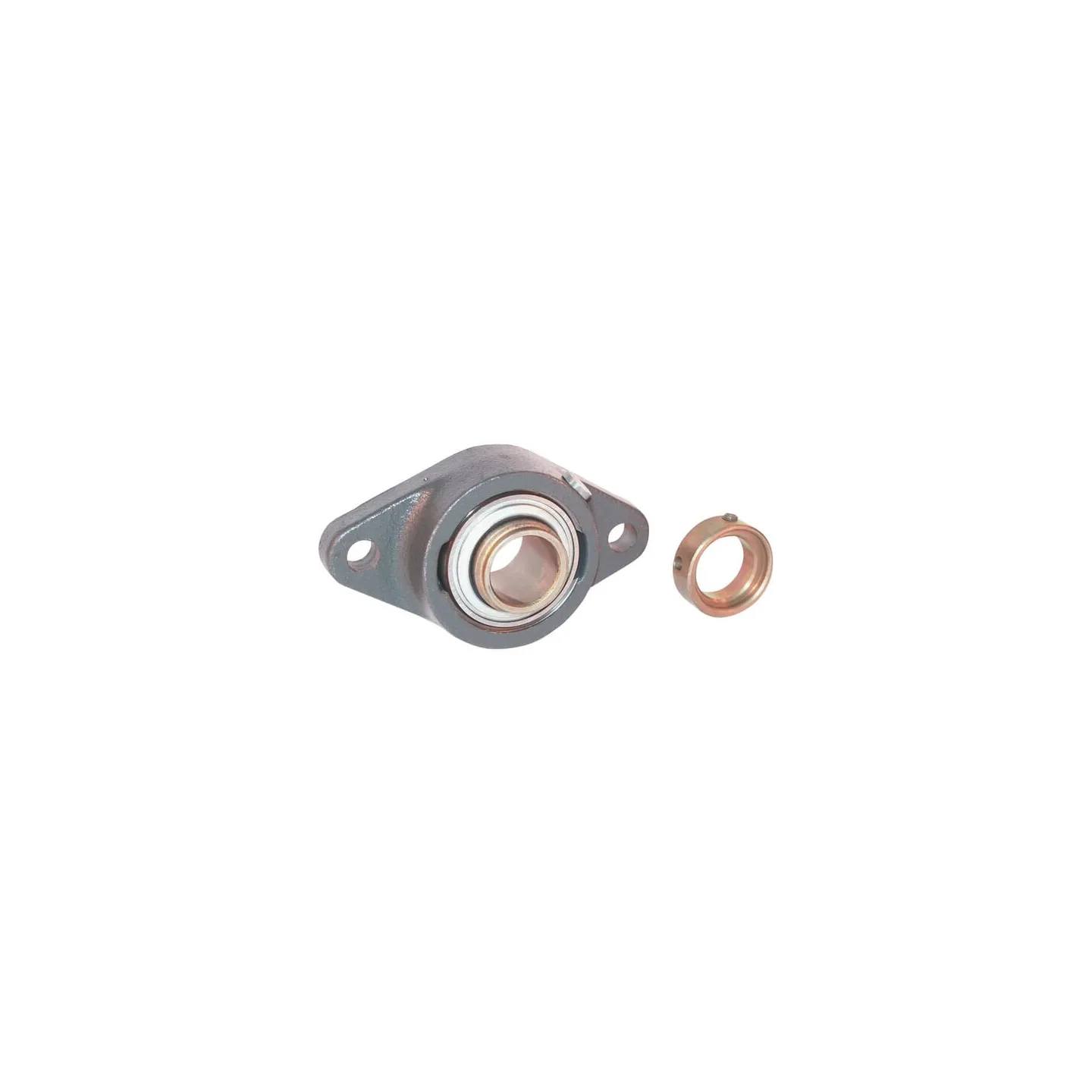

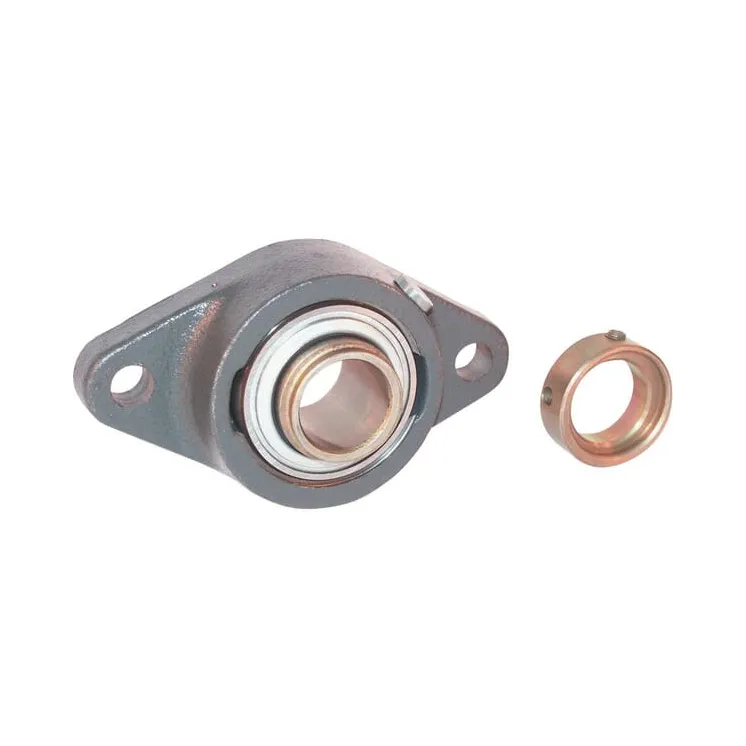

Dzīvoklis RCJT RCJT40

Name: Dzīvoklis RCJT RCJT40
Brand: INA/FAG
SKU: RCJT40
Price: 86.26 EUR
Availability: BackOrder

Apmaksas iespējas

86,26 €

AR PVN

Pēc pieprasījuma

Dzīvoklis RCJT RCJT40 INA/FAG

Uz pasūtījumu

ID: 65204

Apraksts

Part number	RCJT40
EAN	4012802836691
Unit	Each
Properties	Inner bearing has extended inner ring with clamp ring on both sides Can be subsequently lubricated
Technical info	Addition FA125: additional rust protection
Housing type	Oval flange
dBearing inside diameter	40 mm
Consists of	Bearing block Clamp ring
Total length	105 mm
Housing width	172 mm
UTotal height	59.1 mm
THousing height	34.5 mm
LBearing inner ring width	56.3 mm
Locking ring outside diameter	58 mm
Bearing balls distance to locking side end	24 mm
MMounting holes distance	143.5 mm
KMounting holes diameter	14 mm
Grease nipple thread diameter	M6
Weight	1.68 kg
Basic radial load static	19800 N
Basic radial load dynamic	34500 N
Original number equivalent	RCJT40-N
