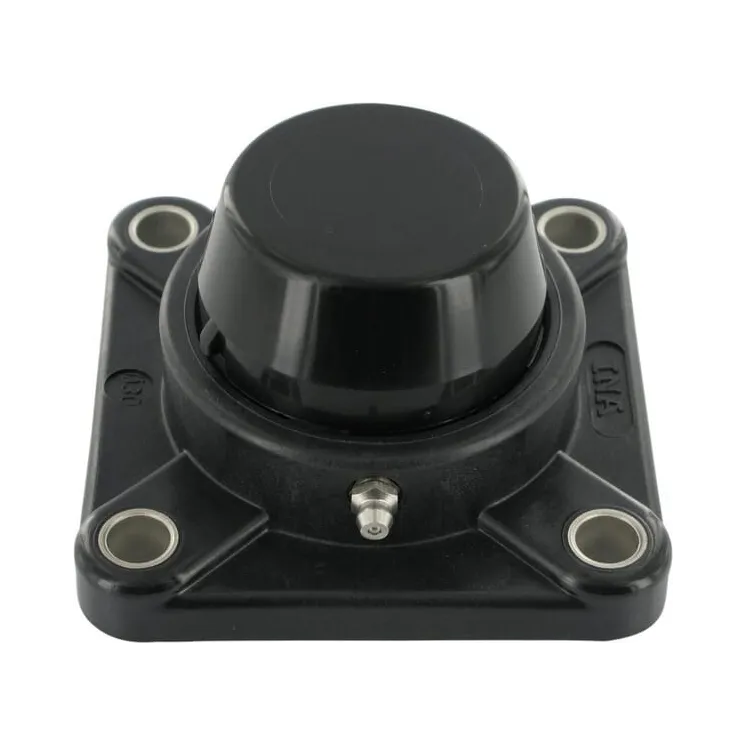

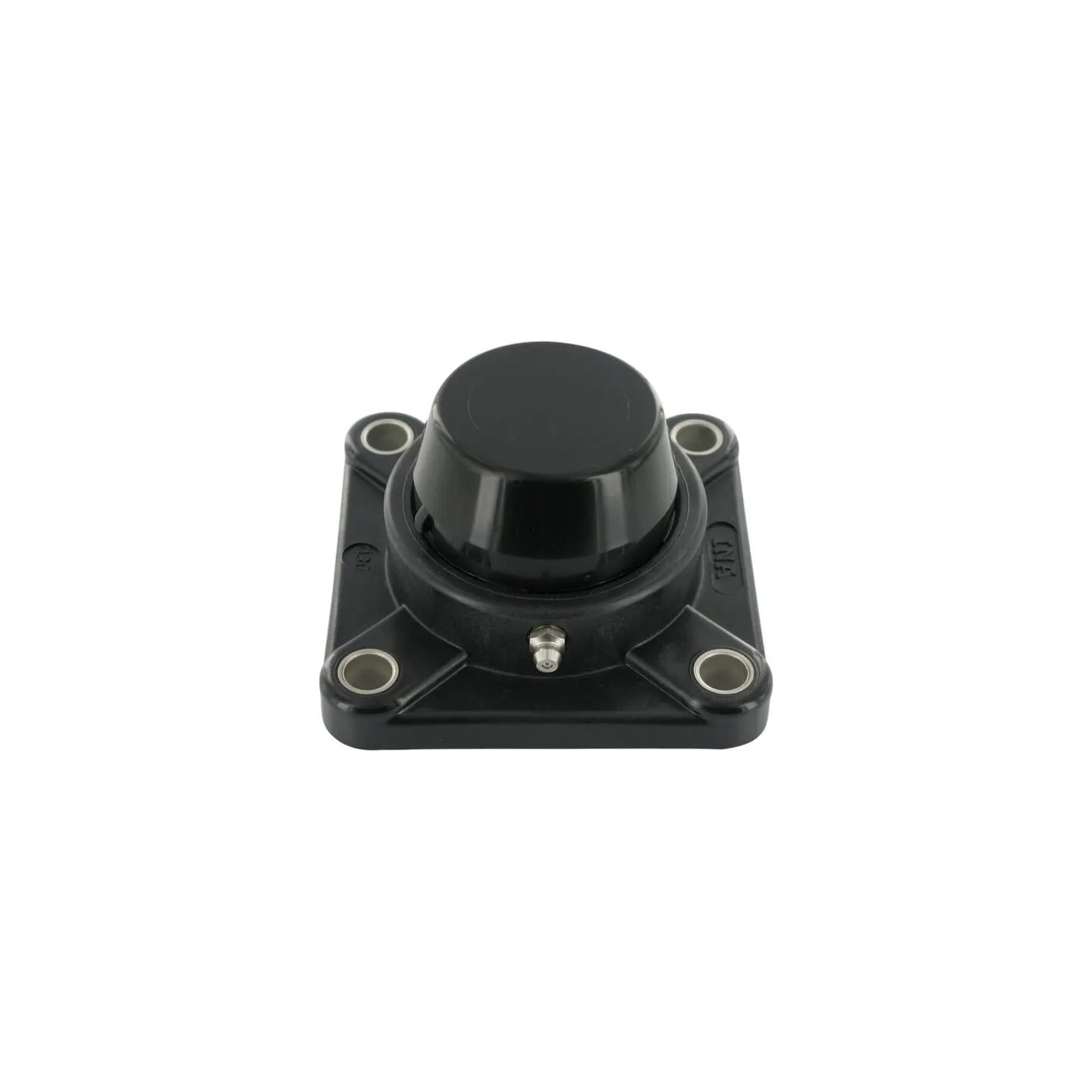

Plastmasas gultņa vāks KLF RCJY30TVVA KLF30CSVA

Name: Plastmasas gultņa vāks KLF RCJY30TVVA KLF30CSVA
Brand: INA/FAG
SKU: RCJY30TVVA
Price: 118.73 EUR
Availability: InStock

Apmaksas iespējas

118,73 €

AR PVN

4-5 Darba dienas

Plastmasas gultņa vāks KLF RCJY30TVVA INA/FAG KLF30CSVA

IR NOLIKTAVĀ

ID: 65206

Apraksts

Part number	RCJY30TVVA
EAN	4054366718938
Unit	Each
Application range	Corrosive environment Feed industry
Properties	Stainless steel rust-free inner bearing Inner bearing has extended inner ring with 2 adjusting screws on both sides Can be subsequently lubricated Pre-lubricated with NSF-H1-approved lubricant
Housing type	Square flange
dBearing inside diameter	30 mm
Consists of	• Bearing block End cap
Total length	107 mm
Housing width	107 mm
Total height	41.4 mm
Total width	38.1 mm
AHousing height	31.5 mm
BBearing inner ring width	38.1 mm
A2Bearing balls distance to mounting surface	19.2 mm
Mounting holes distance	83 mm
Mounting holes diameter	11 mm
Grease nipple thread diameter	M6
Weight	0.5 kg
Housing material	Plastic
Bearing material	Stainless steel
Basic radial load static	10700 N
Basic radial load dynamic	18700 N
Original number equivalent	RCJY30-TV-VA-HLA
