Dzīvojamā vienība RCJ RCJ70

Name: Dzīvojamā vienība RCJ RCJ70
Brand: INA/FAG
SKU: RCJ70
Price: 286.71 EUR
Availability: InStock

Apmaksas iespējas

286,71 €

AR PVN

4-5 Darba dienas

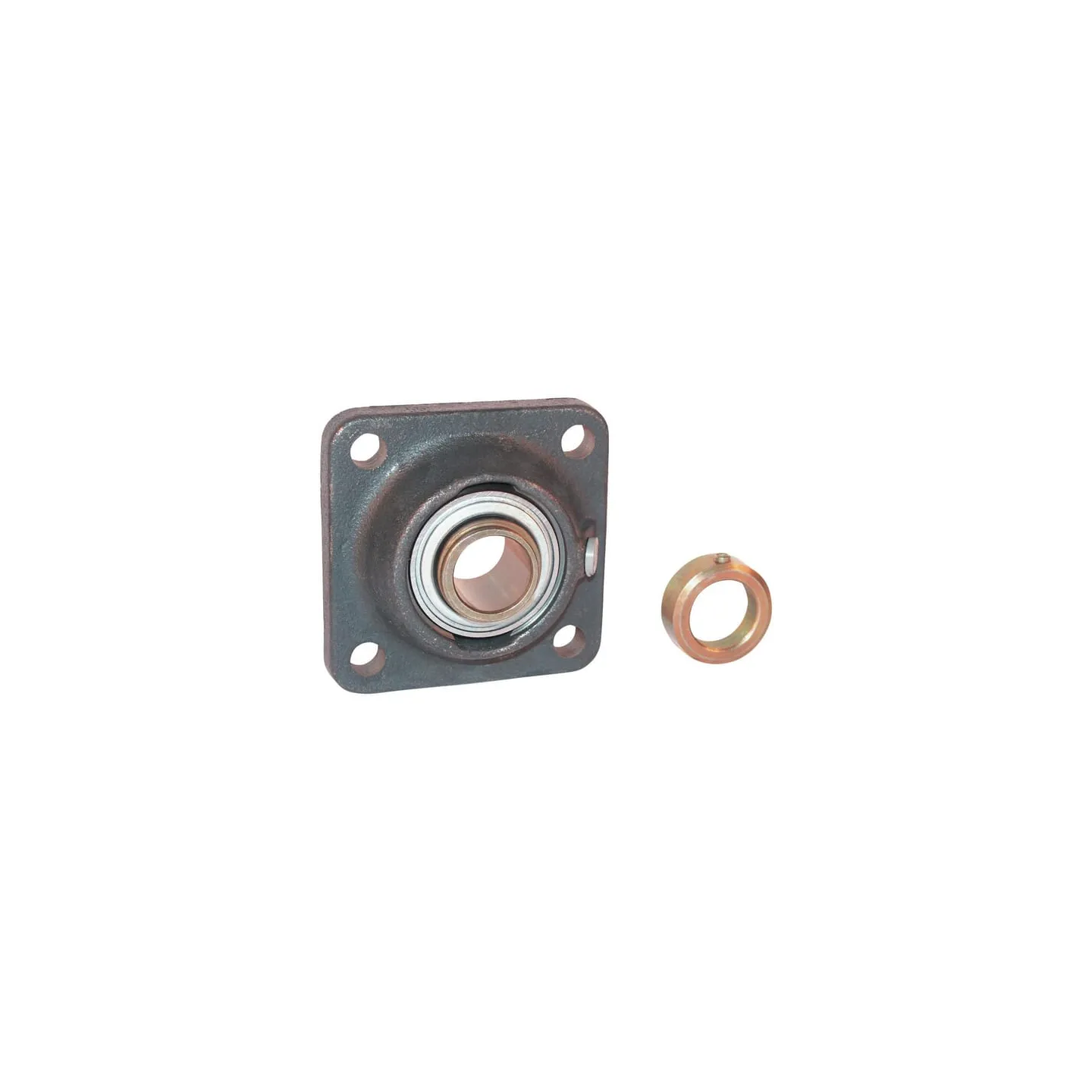

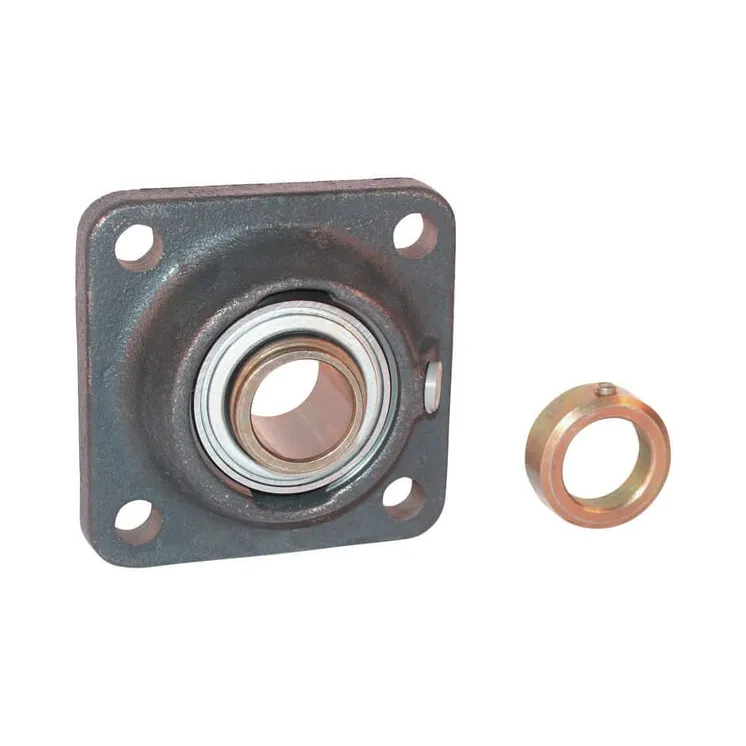

Dzīvojamā vienība RCJ RCJ70 INA/FAG

IR NOLIKTAVĀ

ID: 65207

Apraksts

Part number	RCJ70
EAN	4054372849060
Unit	Each
Properties	Inner bearing has extended inner ring with clamp ring on both sides Can be subsequently lubricated
Housing type	Square flange
dBearing inside diameter	70 mm
Consists of	• Bearing block Clamp ring
Total length	188 mm
Housing width	188 mm
UTotal height	188 mm
Total width	82.6 mm
THousing height	52 mm
LBearing inner ring width	66 mm
CFlange thickness	15 mm
Locking ring outside diameter	96 mm
Bearing balls distance to locking side end	38 mm
MMounting holes distance	150 mm
Mounting holes diameter	18 mm
Grease nipple thread diameter	M6
Weight	5.45 kg
Basic radial load static	44000 N
Basic radial load dynamic	66000 N
Original number equivalent	RCJ70
