Dzīvojamā vienība RCJ RCJ25

Name: Dzīvojamā vienība RCJ RCJ25
Brand: INA/FAG
SKU: RCJ25
Price: 53.49 EUR
Availability: InStock

Apmaksas iespējas

53,49 €

AR PVN

4-5 Darba dienas

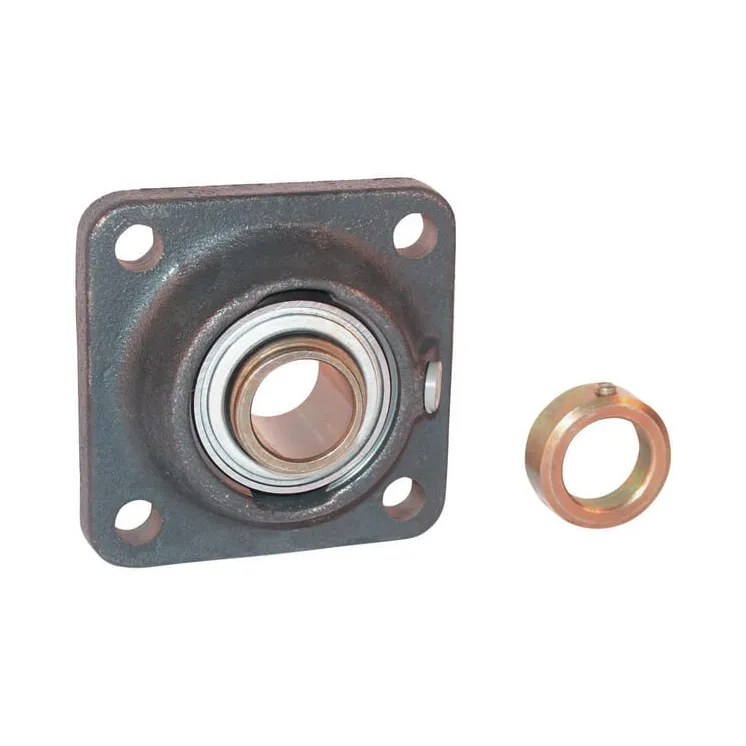

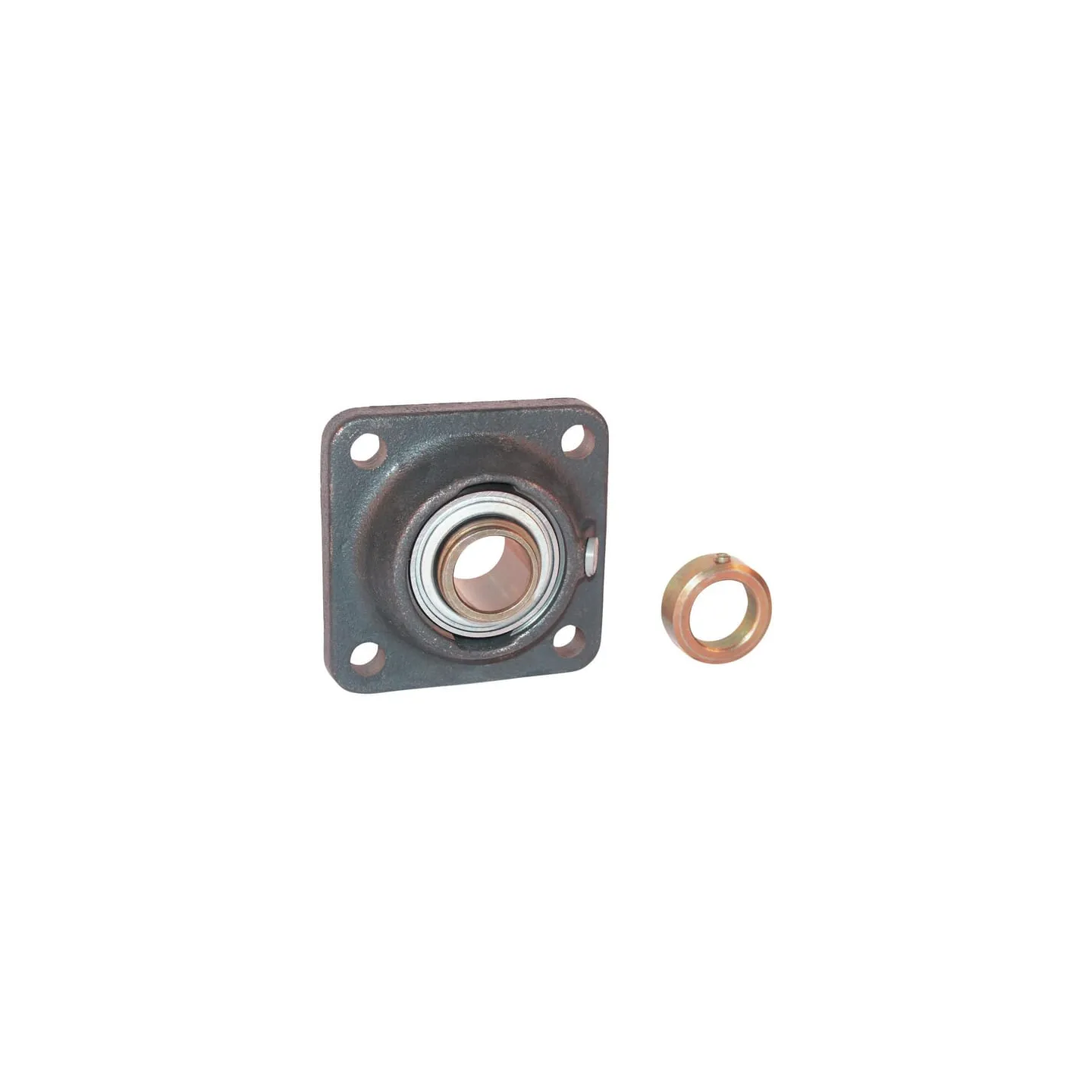

Dzīvojamā vienība RCJ RCJ25 INA/FAG

IR NOLIKTAVĀ

ID: 65209

Apraksts

Part number	RCJ25
EAN	4012802839210
Unit	Each
Properties	Inner bearing has extended inner ring with clamp ring on both sides Can be subsequently lubricated
Housing type	Square flange
dBearing inside diameter	25 mm
Consists of	• Bearing block Clamp ring
Total length	95 mm
Housing width	95 mm
UTotal height	46 mm
THousing height	29 mm
LBearing inner ring width	44.5 mm
CFlange thickness	27.5 mm
Bearing balls distance to locking side end	19 mm
MMounting holes distance	70 mm
Mounting holes diameter	11.5 mm
Grease nipple thread diameter	M6
Weight	0.82 kg
Basic radial load static	7800 N
Basic radial load dynamic	14900 N
Original number equivalent	RCJ25-N
