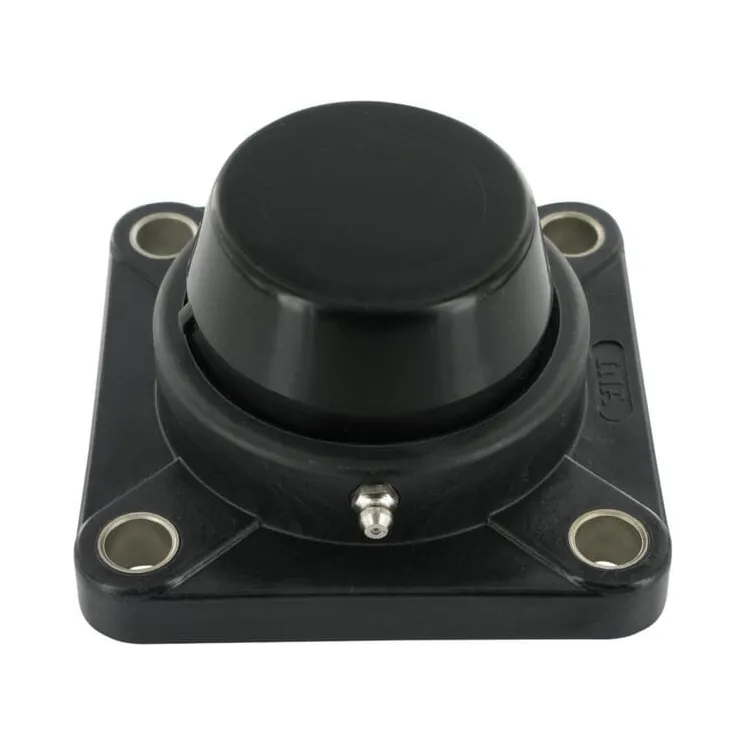

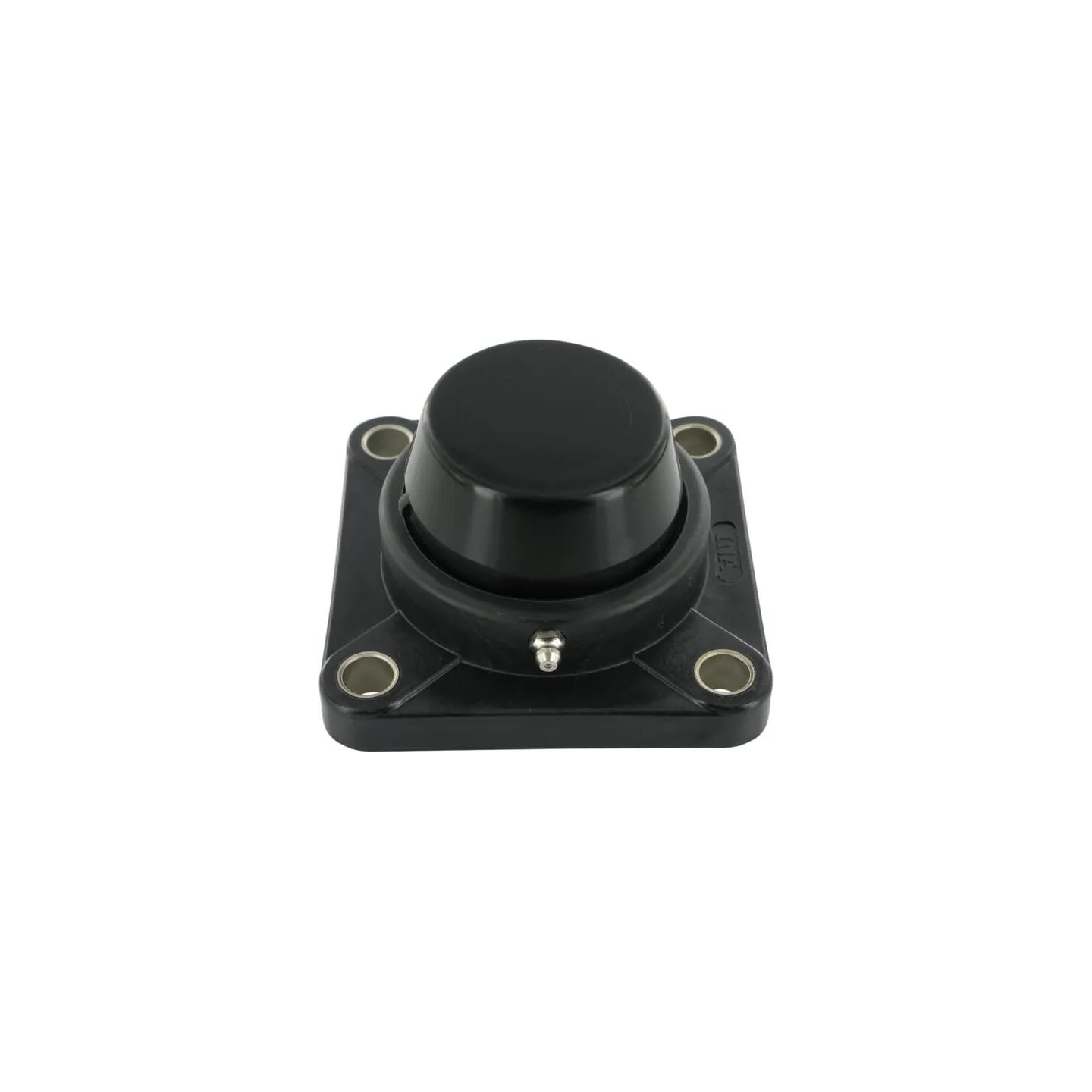

Plastmasas gultņa vāks KLF RCJY35TVVA KLF35CSVA

Name: Plastmasas gultņa vāks KLF RCJY35TVVA KLF35CSVA
Brand: INA/FAG
SKU: RCJY35TVVA
Price: 220.9 EUR
Availability: InStock

Apmaksas iespējas

220,90 €

AR PVN

4-5 Darba dienas

Plastmasas gultņa vāks KLF RCJY35TVVA INA/FAG KLF35CSVA

IR NOLIKTAVĀ

ID: 65210

Apraksts

Part number	RCJY35TVVA
EAN	4054366719614
Unit	Each
Application range	Corrosive environment Feed industry
Properties	Stainless steel rust-free inner bearing Inner bearing has extended inner ring with 2 adjusting screws on both sides Can be subsequently lubricated Pre-lubricated with NSF-H1-approved lubricant
Housing type	Square flange
dBearing inside diameter	35 mm
Consists of	• Bearing block End cap
Total length	117 mm
Housing width	118 mm
Total height	46.9 mm
Total width	42.9 mm
AHousing height	34.8 mm
BBearing inner ring width	42.9 mm
A2Bearing balls distance to mounting surface	21.5 mm
Mounting holes distance	92 mm
Mounting holes diameter	13 mm
Grease nipple thread diameter	M6
Weight	0.73 kg
Housing material	Plastic
Bearing material	Stainless steel
Basic radial load static	14600 N
Basic radial load dynamic	24600 N
Original number equivalent	RCJY35-TV-VA-HLA
