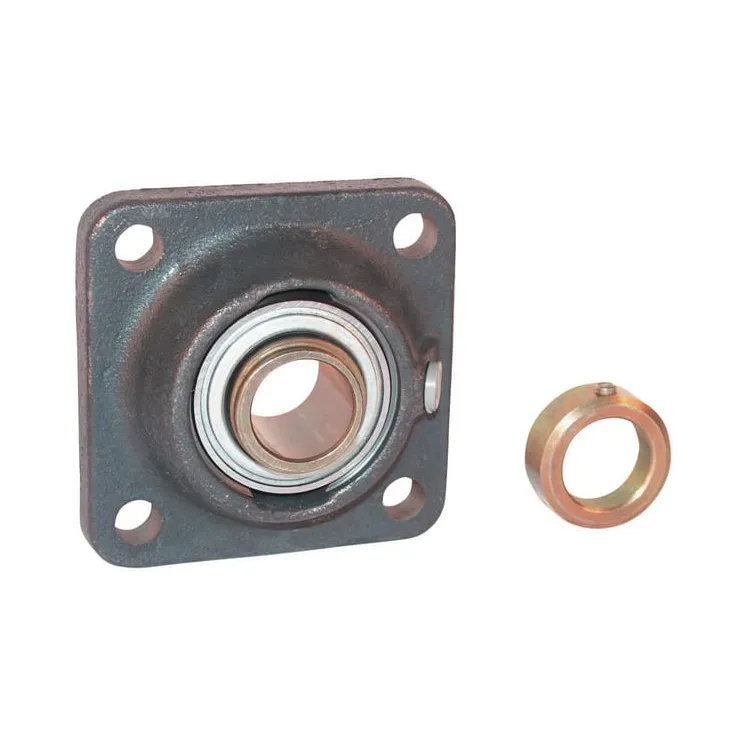

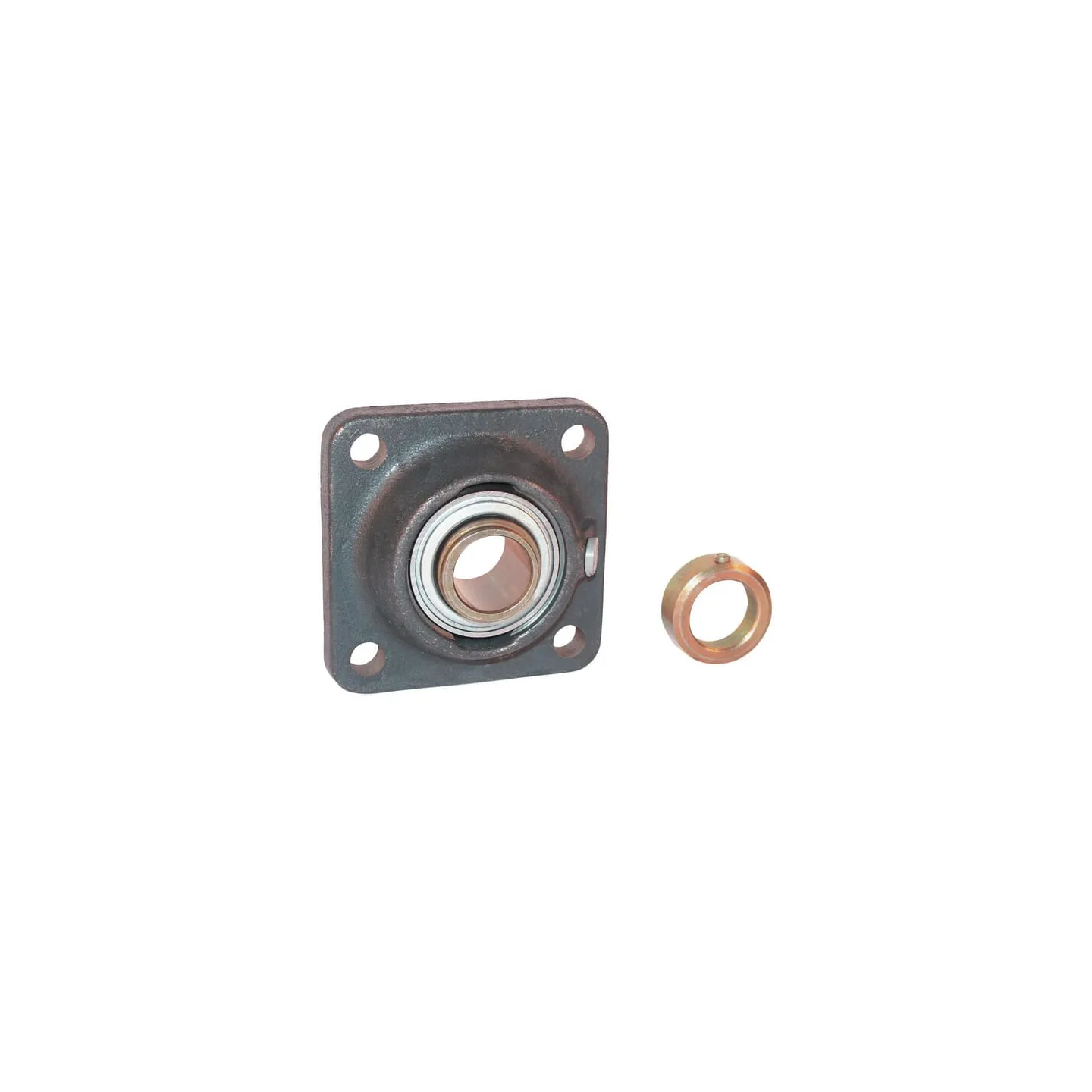

Dzīvojamā vienība RCJ RCJ90

Name: Dzīvojamā vienība RCJ RCJ90
Brand: INA/FAG
SKU: RCJ90
Price: 481.59 EUR
Availability: InStock

Apmaksas iespējas

481,59 €

AR PVN

4-5 Darba dienas

Dzīvojamā vienība RCJ RCJ90 INA/FAG

IR NOLIKTAVĀ

ID: 65211

Apraksts

Part number	RCJ90
EAN	4012802795134
Unit	Each
Properties	Inner bearing has extended inner ring with clamp ring on both sides Can be subsequently lubricated
Housing type	Square flange
dBearing inside diameter	90 mm
Consists of	• Bearing block Clamp ring
Total length	235 mm
Housing width	235 mm
UTotal height	70.3 mm
THousing height	39.8 mm
LBearing inner ring width	69.5 mm
CFlange thickness	18 mm
Locking ring outside diameter	118 mm
PBearing balls distance to mounting surface	23.8 mm
MMounting holes distance	187 mm
Mounting holes diameter	23 mm
Grease nipple thread diameter	M6
Weight	8.88 kg
Basic radial load static	79000 N
Basic radial load dynamic	109000 N
Original number equivalent	RCJ90
