Dzīvojamā vienība RCJ RCJ35

Name: Dzīvojamā vienība RCJ RCJ35
Brand: INA/FAG
SKU: RCJ35
Price: 53.76 EUR
Availability: InStock

Apmaksas iespējas

53,76 €

AR PVN

4-5 Darba dienas

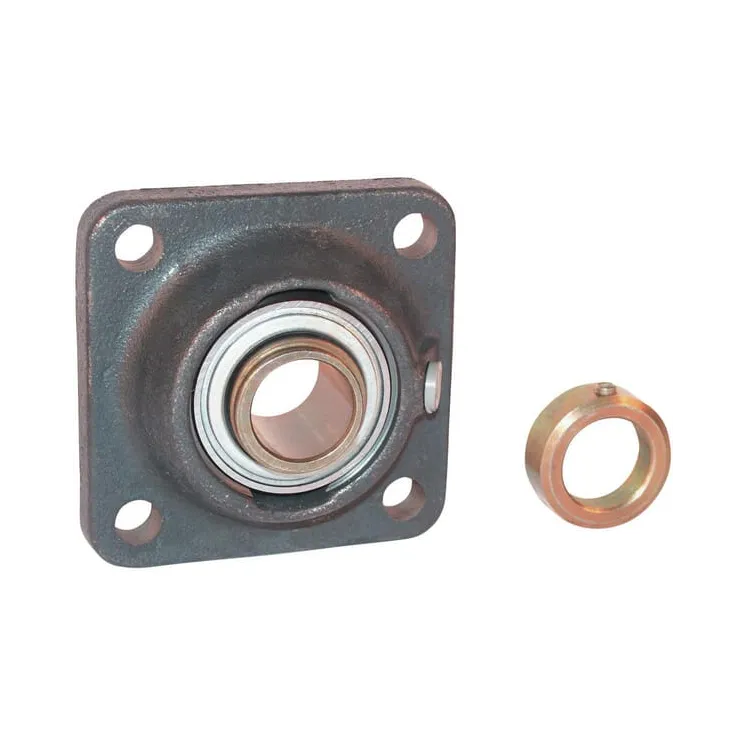

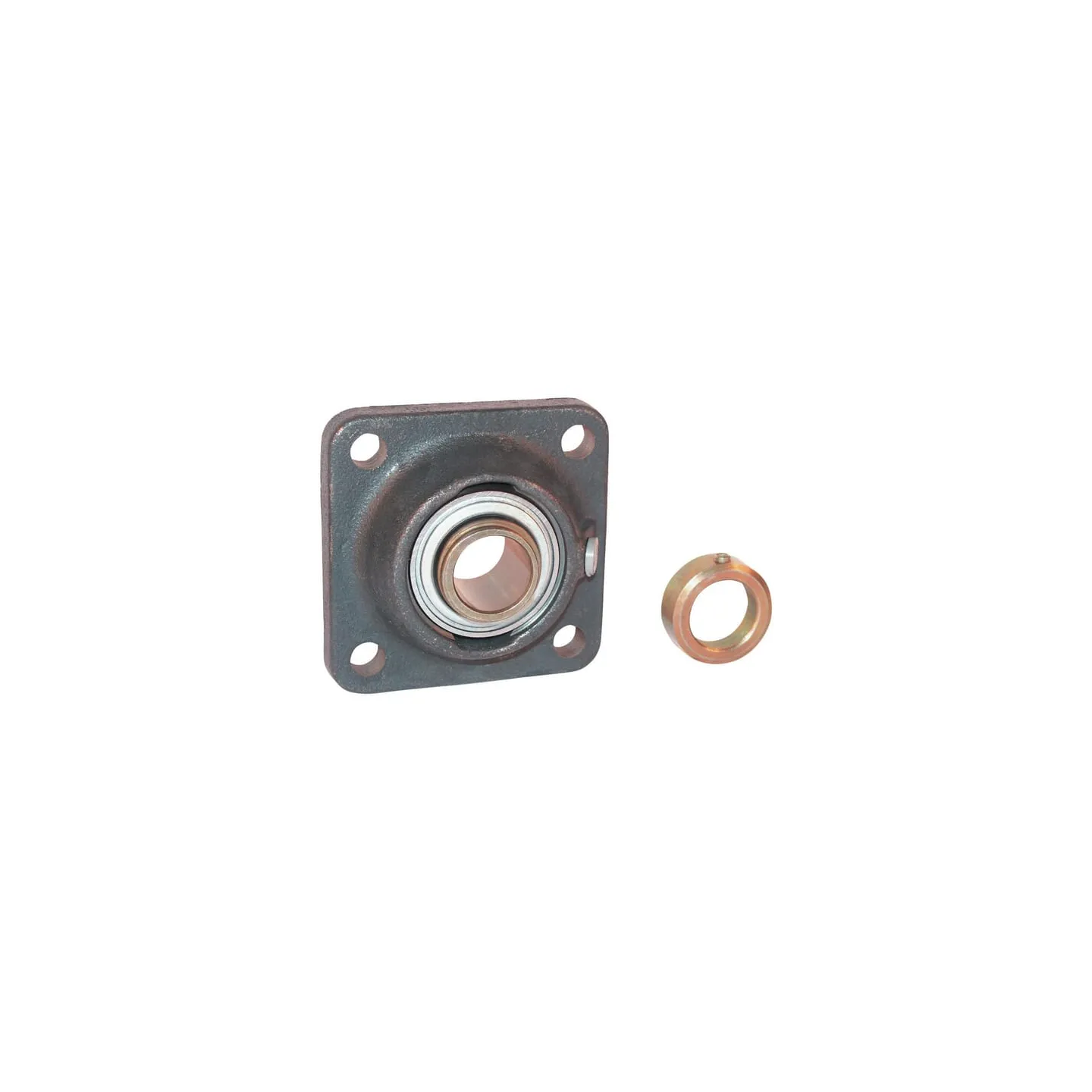

Dzīvojamā vienība RCJ RCJ35 INA/FAG

IR NOLIKTAVĀ

ID: 65212

Apraksts

Part number	RCJ35
EAN	4012802839128
Unit	Each
Properties	Inner bearing has extended inner ring with clamp ring on both sides Can be subsequently lubricated
Housing type	Square flange
dBearing inside diameter	35 mm
Consists of	• Bearing block Clamp ring
Total length	118 mm
Housing width	118 mm
UTotal height	53.5 mm
THousing height	30.5 mm
LBearing inner ring width	51.3 mm
CFlange thickness	30 mm
Locking ring outside diameter	51 mm
Bearing balls distance to locking side end	21 mm
MMounting holes distance	92 mm
Mounting holes diameter	14 mm
Grease nipple thread diameter	M6
Weight	1.59 kg
Basic radial load static	15300 N
Basic radial load dynamic	27500 N
Original number equivalent	RCJ35-N
