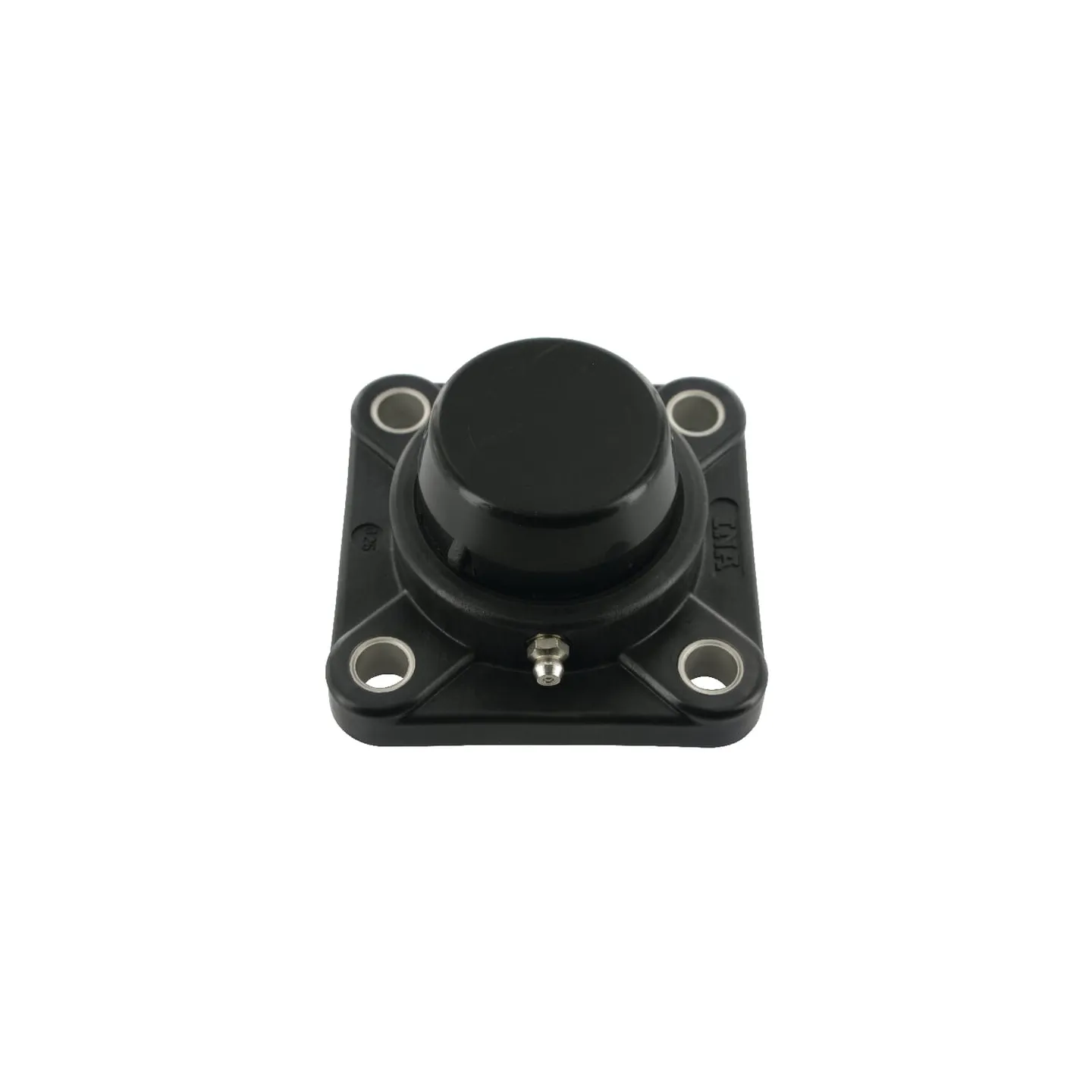

Plastmasas gultņa vāks KLF RCJY25TVVA KLF25CSVA

Name: Plastmasas gultņa vāks KLF RCJY25TVVA KLF25CSVA
Brand: INA/FAG
SKU: RCJY25TVVA
Price: 107.9 EUR
Availability: BackOrder

Apmaksas iespējas

107,90 €

AR PVN

Pēc pieprasījuma

Plastmasas gultņa vāks KLF RCJY25TVVA INA/FAG KLF25CSVA

Uz pasūtījumu

ID: 65213

Apraksts

Part number	RCJY25TVVA
EAN	4054366718457
Unit	Each
Application range	Corrosive environment Feed industry
Properties	Stainless steel rust-free inner bearing Inner bearing has extended inner ring with 2 adjusting screws on both sides Can be subsequently lubricated Pre-lubricated with NSF-H1-approved lubricant
Housing type	Square flange
dBearing inside diameter	25 mm
Consists of	• Bearing block End cap
Total length	95 mm
Housing width	95 mm
Total height	36.8 mm
Total width	34.1 mm
AHousing height	28 mm
BBearing inner ring width	34.1 mm
Bearing balls distance to locking side end	17 mm
Mounting holes distance	70 mm
Mounting holes diameter	11 mm
Grease nipple thread diameter	M6
Weight	0.36 kg
Housing material	Plastic
Bearing material	Stainless steel
Basic radial load static	7500 N
Basic radial load dynamic	13400 N
Original number equivalent	RCJY25-TV-VA-HLA
