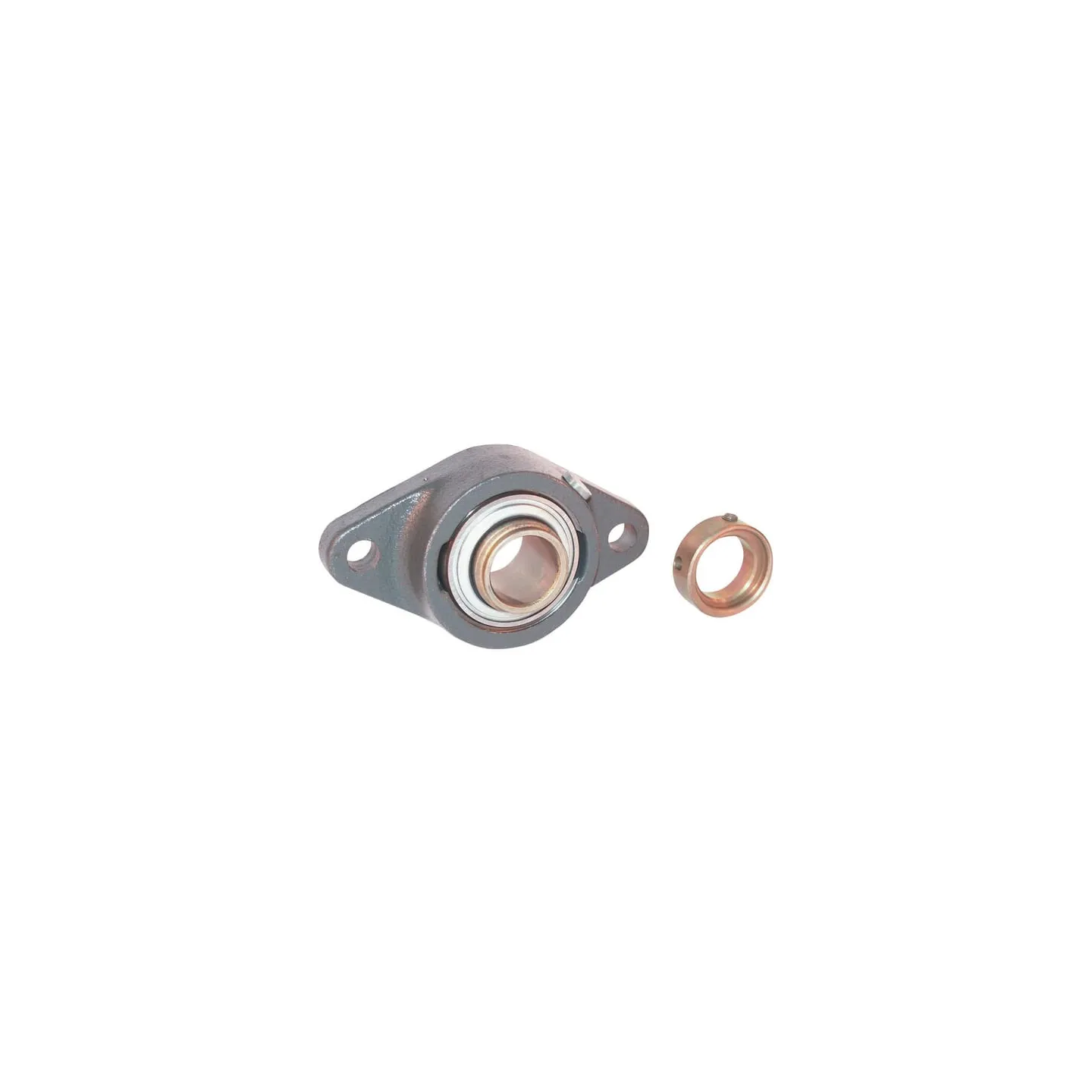

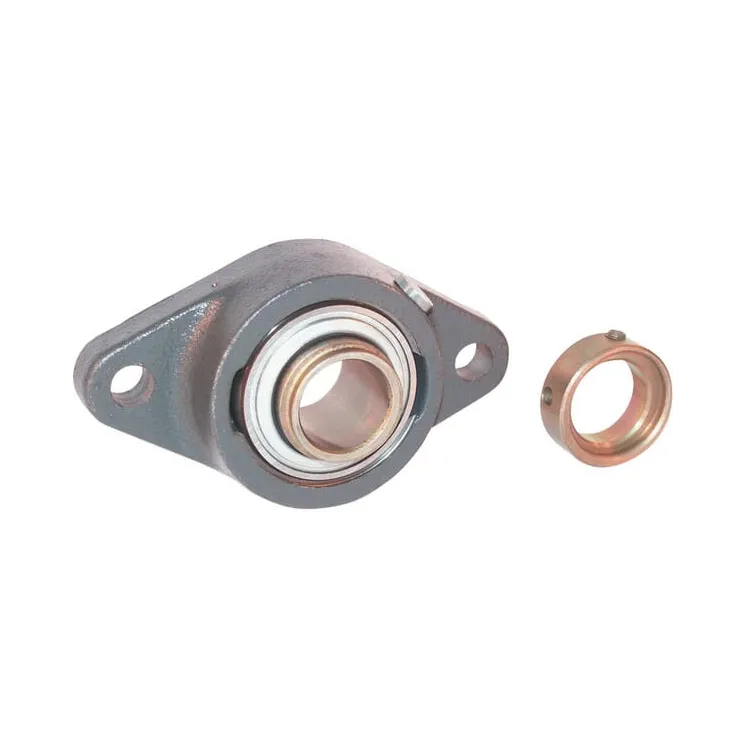

Dzīvojamā vienība RCJT RCJT20

Name: Dzīvojamā vienība RCJT RCJT20
Brand: INA/FAG
SKU: RCJT20
Price: 51.41 EUR
Availability: InStock

Apmaksas iespējas

51,41 €

AR PVN

4-5 Darba dienas

Dzīvojamā vienība RCJT RCJT20 INA/FAG

IR NOLIKTAVĀ

ID: 65214

Apraksts

Part number	RCJT20
EAN	4012802836936
Unit	Each
Properties	Inner bearing has extended inner ring with clamp ring on both sides Can be subsequently lubricated
Technical info	Addition FA125: additional rust protection
Housing type	Oval flange
dBearing inside diameter	20 mm
Consists of	Bearing block Clamp ring
Total length	61 mm
Housing width	112 mm
UTotal height	45.6 mm
THousing height	28 mm
LBearing inner ring width	43.7 mm
Locking ring outside diameter	33 mm
Bearing balls distance to locking side end	19 mm
MMounting holes distance	90 mm
KMounting holes diameter	11.5 mm
Grease nipple thread diameter	M6
Weight	0.48 kg
Basic radial load static	6600 N
Basic radial load dynamic	13600 N
Original number equivalent	RCJT20-N
