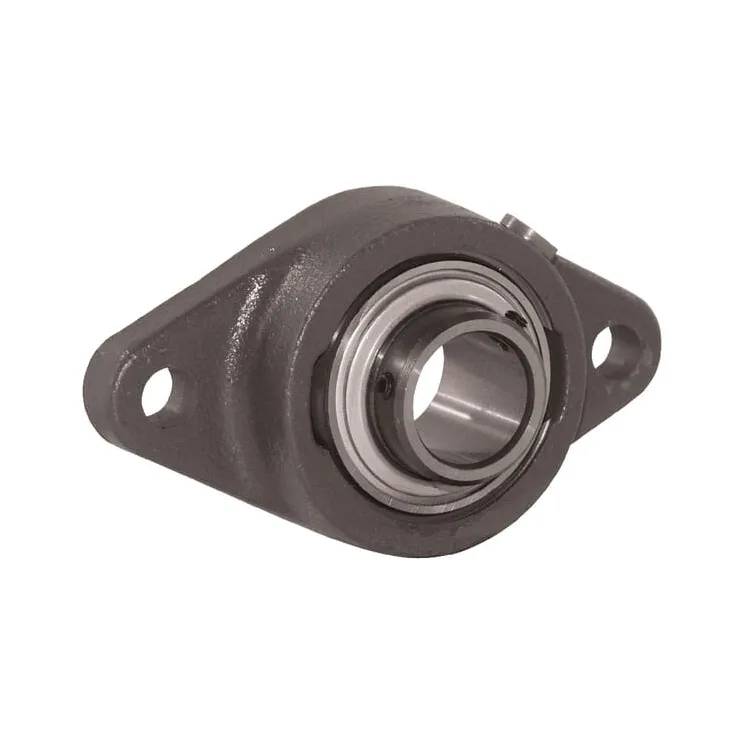

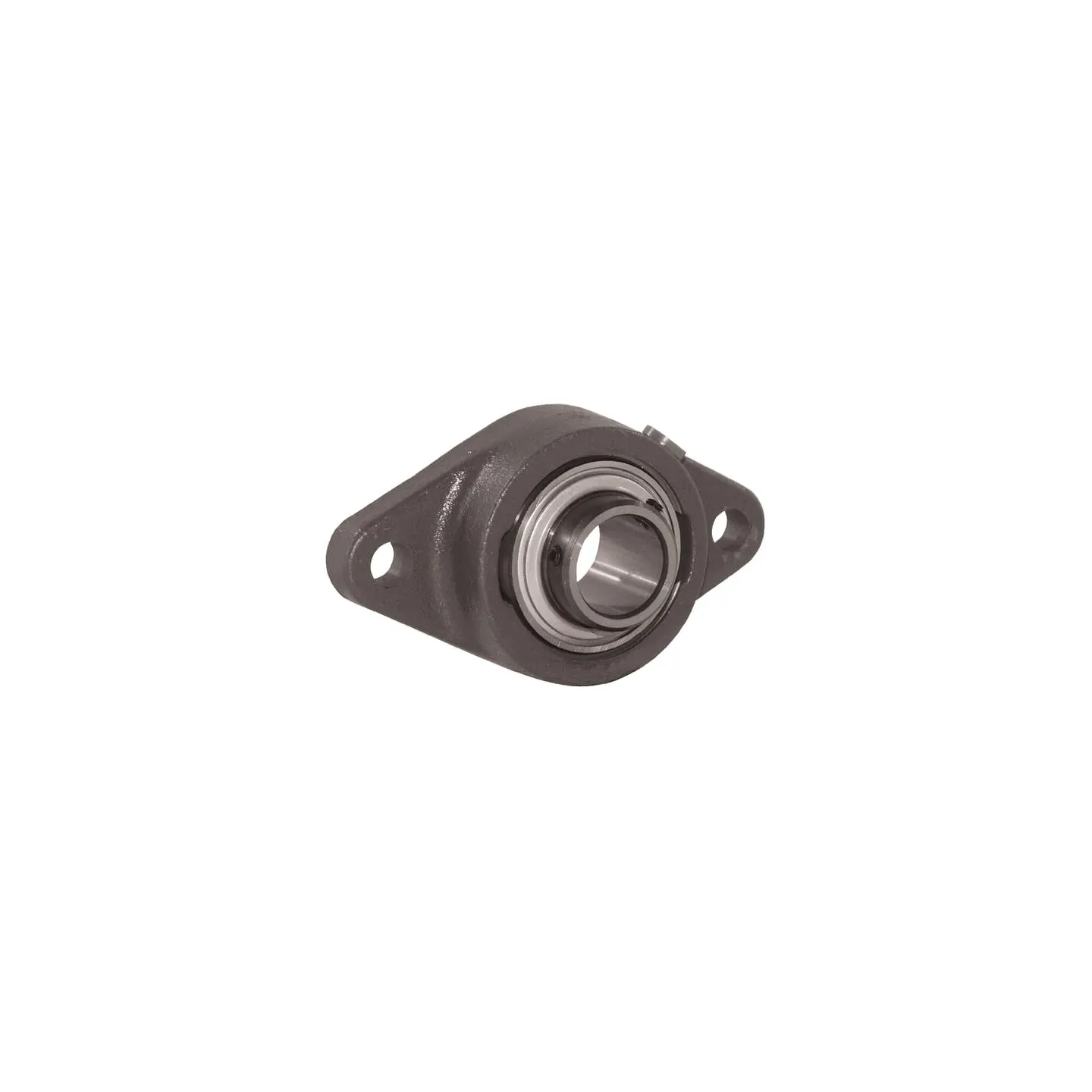

Dzīvoklis RCJTY RCJTY50N

Name: Dzīvoklis RCJTY RCJTY50N
Brand: INA/FAG
SKU: RCJTY50N
Price: 83.84 EUR
Availability: InStock

Apmaksas iespējas

83,84 €

AR PVN

4-5 Darba dienas

Dzīvoklis RCJTY RCJTY50N INA/FAG

IR NOLIKTAVĀ

ID: 65216

Apraksts

Part number	RCJTY50N
EAN	4054372845284
Unit	Each
Properties	Inner bearing has extended inner ring with 2 adjusting screws on both sides Can be subsequently lubricated
Housing type	Oval flange
dBearing inside diameter	50 mm
BTotal length	190 mm
AHousing width	116 mm
Total height	60.6 mm
Total width	60.6 mm
THousing height	39 mm
LBearing inner ring width	51.6 mm
Bearing balls distance to locking side end	28 mm
Mounting holes distance	157 mm
KMounting holes diameter	18 mm
Grease nipple thread diameter	M6
Weight	2 kg
Basic radial load static	23200 N
Basic radial load dynamic	37500 N
Original number equivalent	RCJTY50-N
