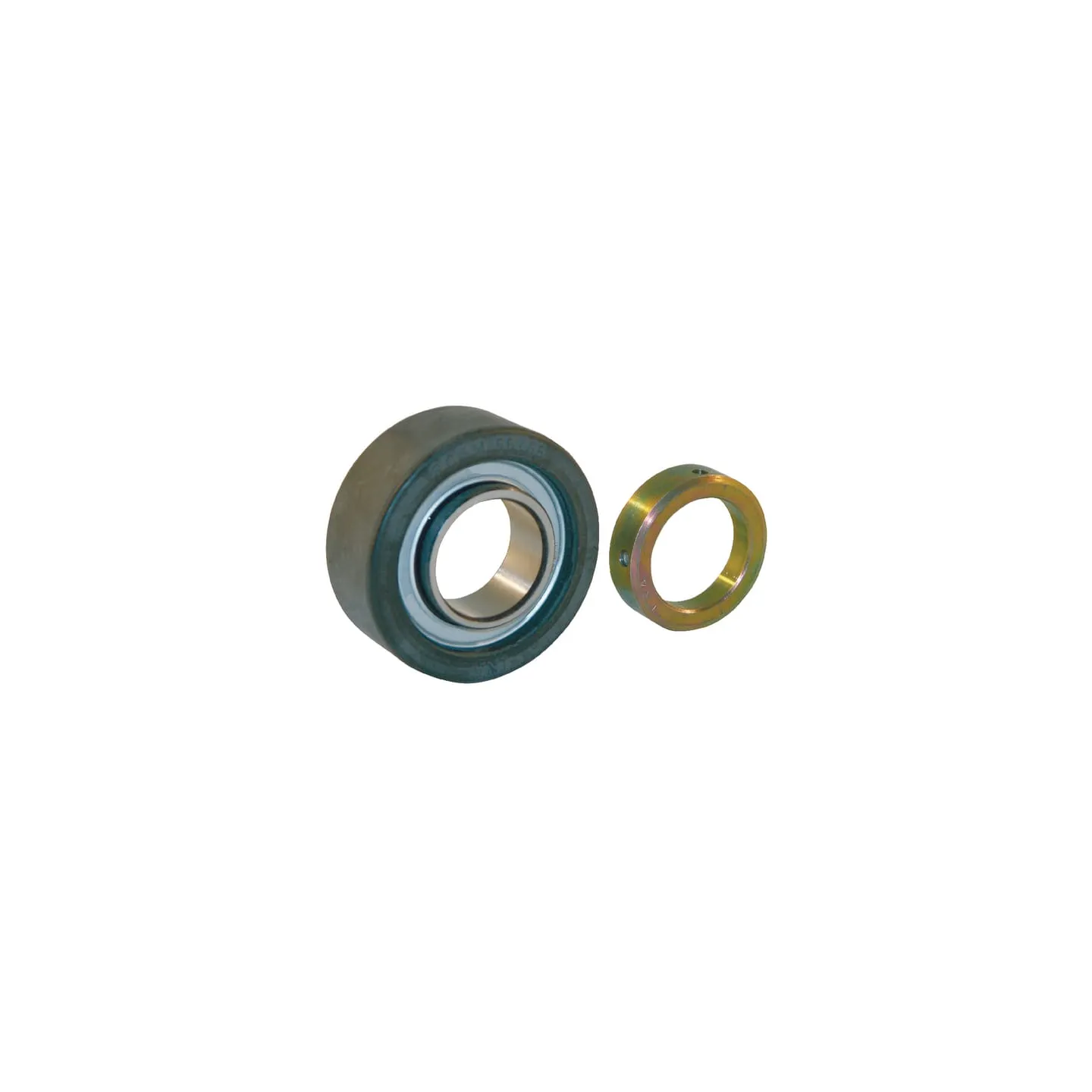

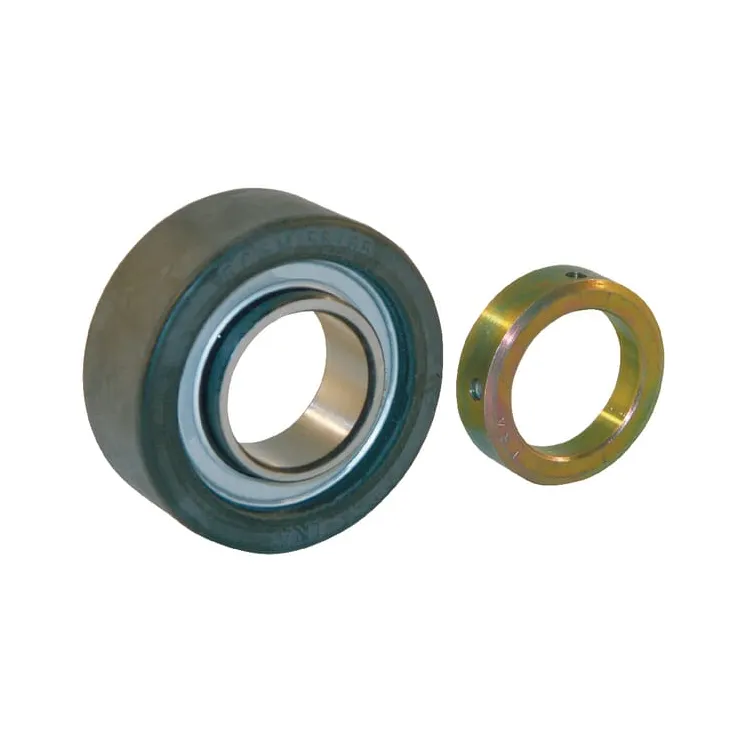

Gultņa ieliktnis 30x65,1x25,4mm RCSMA3065FA106

Name: Gultņa ieliktnis 30x65,1x25,4mm RCSMA3065FA106
Brand: INA/FAG
SKU: RCSMA3065FA106
Price: 61.43 EUR
Availability: InStock

Apmaksas iespējas

61,43 €

AR PVN

4-5 Darba dienas

Gultņa ieliktnis 30x65,1x25,4mm RCSMA3065FA106 INA/FAG

IR NOLIKTAVĀ

ID: 65220

Apraksts

Part number	RCSMA3065FA106
EAN	4012802790115
Unit	Each
Application range	Mobile mechanical engineering Stationary mechanical engineering
Properties	One-sided extended inner ring with clamp ring Flat rubber outer ring P seal Polyamide housing Rubber hardness 70° Shore A
dInside diameter	30 mm
DOutside diameter	65.1 mm
Consists of	Clamp bearing Clamp ring
Outer ring width	25.4 mm
BInner ring width	26.5 mm
Locking collar and inner ring width	26.5 mm
Locking collar outside diameter	42 mm
Basic radial load static	8300 N
Basic radial load dynamic	14100 N
Ball centre to inner ring end distance	20 mm
Original number equivalent	RCSMA30/65-FA106
Weight	0.22 kg
