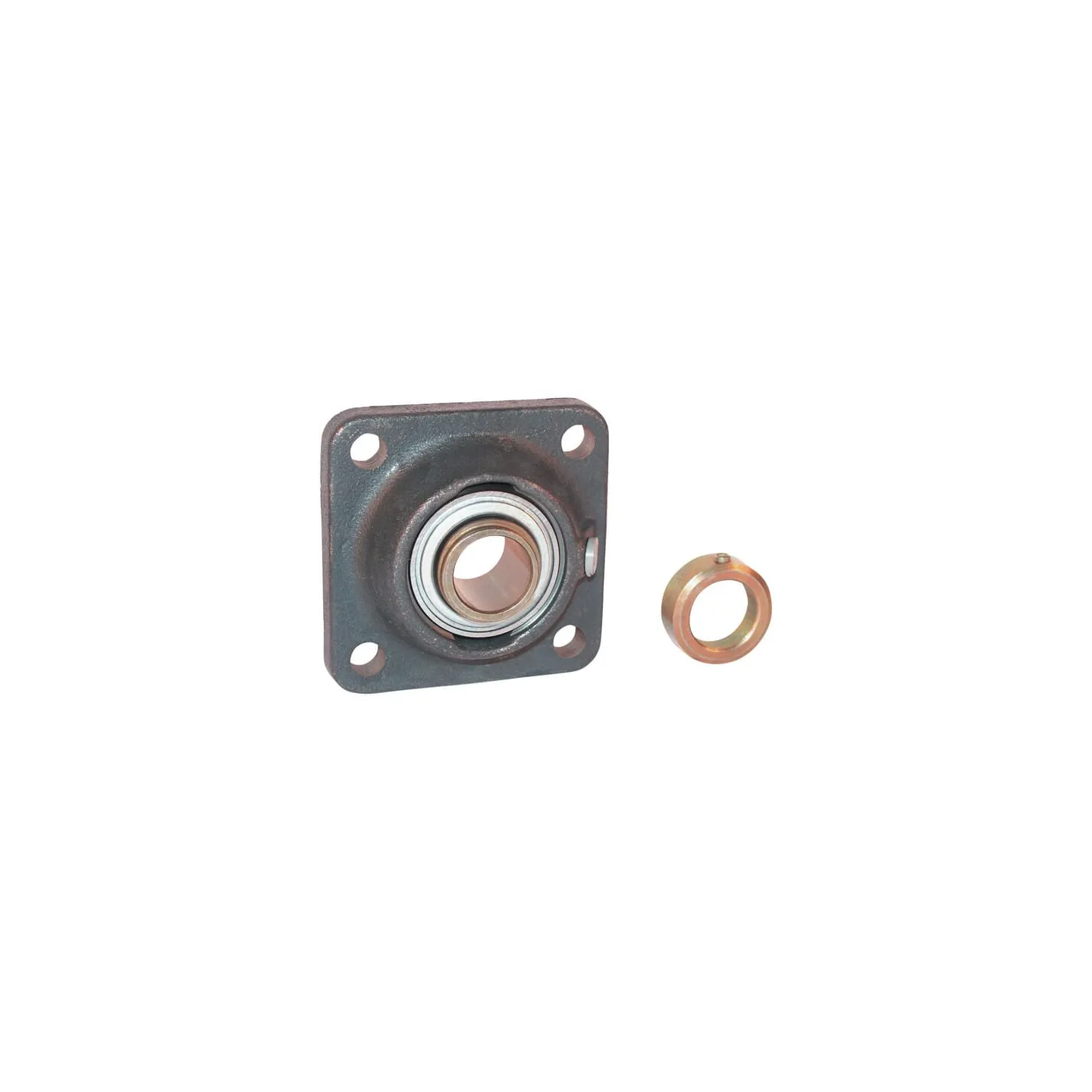

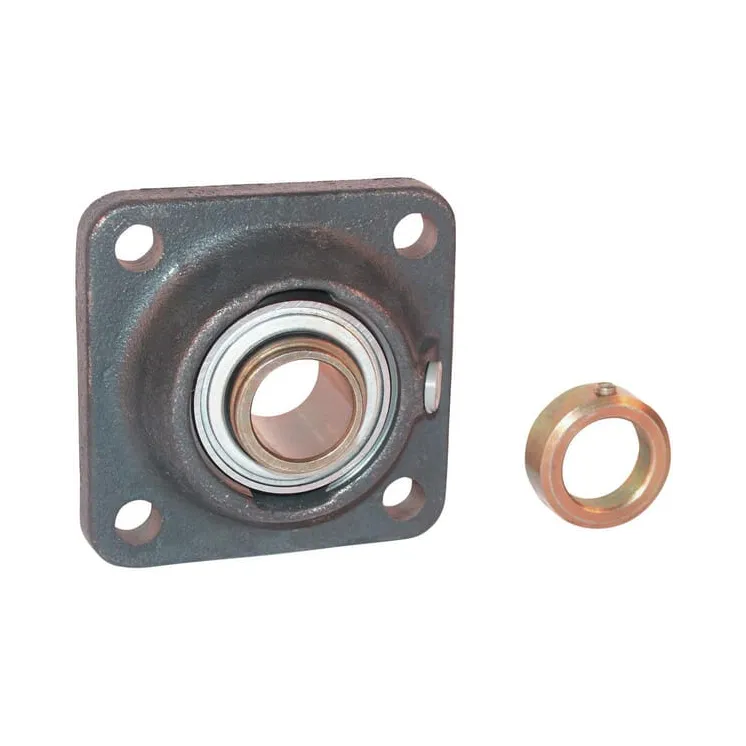

Dzīvojamā vienība RCJ RCJ40

Name: Dzīvojamā vienība RCJ RCJ40
Brand: INA/FAG
SKU: RCJ40
Price: 73.86 EUR
Availability: InStock

Apmaksas iespējas

73,86 €

AR PVN

4-5 Darba dienas

Dzīvojamā vienība RCJ RCJ40 INA/FAG

IR NOLIKTAVĀ

ID: 65221

Apraksts

Part number	RCJ40
EAN	4012802839029
Unit	Each
Properties	Inner bearing has extended inner ring with clamp ring on both sides Can be subsequently lubricated
Housing type	Square flange
dBearing inside diameter	40 mm
Consists of	• Bearing block Clamp ring
Total length	130 mm
Housing width	130 mm
UTotal height	59.1 mm
THousing height	34.5 mm
LBearing inner ring width	56.5 mm
CFlange thickness	35 mm
Locking ring outside diameter	58 mm
Bearing balls distance to locking side end	24 mm
MMounting holes distance	101.5 mm
Mounting holes diameter	14 mm
Grease nipple thread diameter	M6
Weight	2.01 kg
Basic radial load static	19800 N
Basic radial load dynamic	34500 N
Original number equivalent	RCJ40-N
