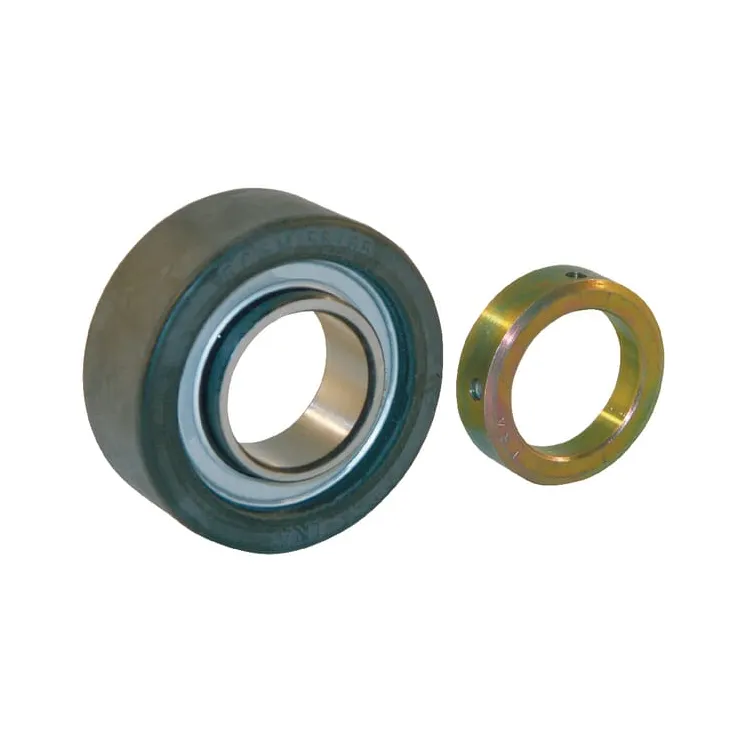

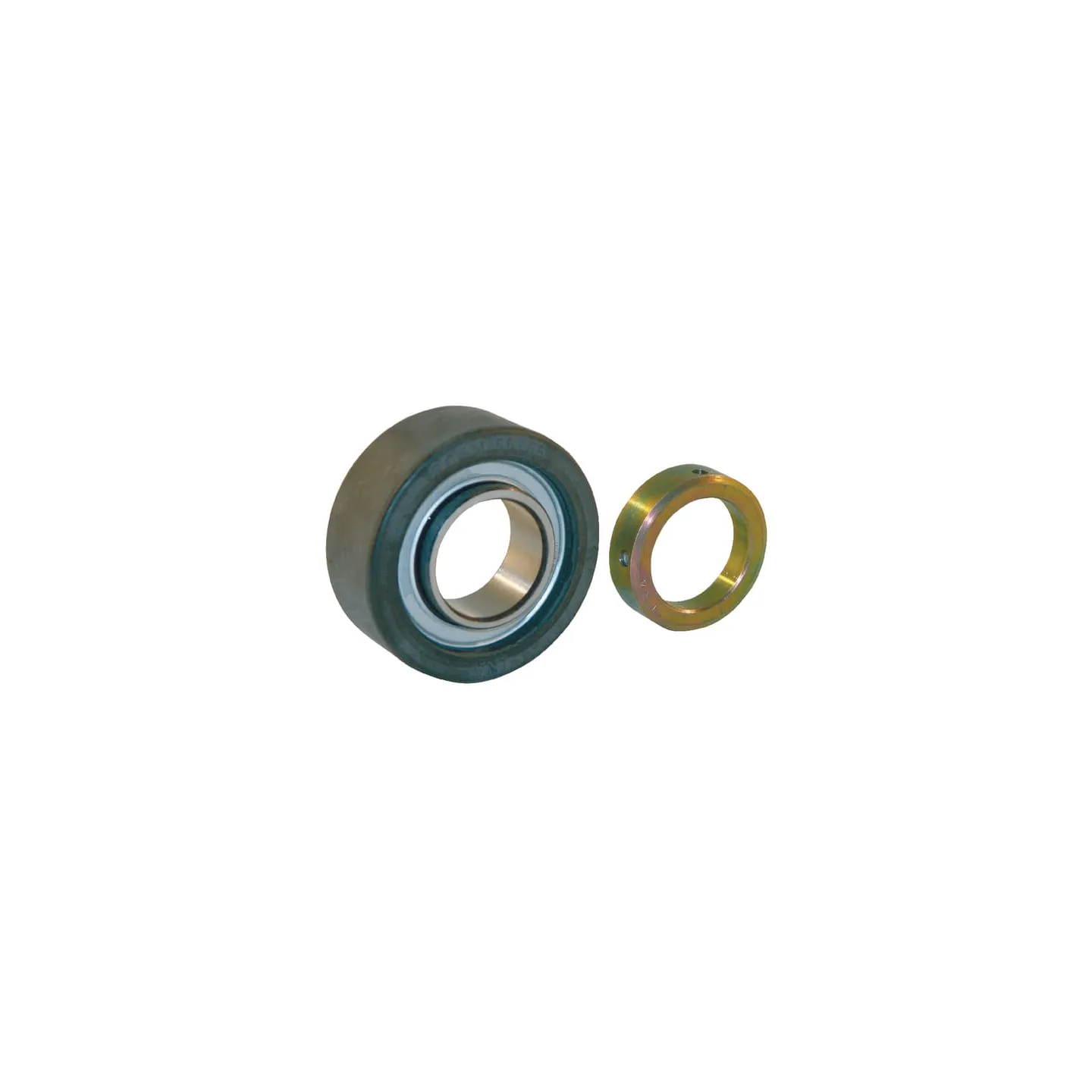

Gultņa ieliktnis 25x65,1x25,4mm RCSMB2565FA106

Name: Gultņa ieliktnis 25x65,1x25,4mm RCSMB2565FA106
Brand: INA/FAG
SKU: RCSMB2565FA106
Price: 46.27 EUR
Availability: BackOrder

Apmaksas iespējas

46,27 €

AR PVN

Pēc pieprasījuma

Gultņa ieliktnis 25x65,1x25,4mm RCSMB2565FA106 INA/FAG

Uz pasūtījumu

ID: 65223

Apraksts

Part number	RCSMB2565FA106
EAN	4012802801408
Unit	Each
Application range	Mobile mechanical engineering Stationary mechanical engineering
Properties	One-sided extended inner ring with clamp ring Flat rubber outer ring P seal Polyamide housing Rubber hardness 70° Shore A
dInside diameter	25 mm
DOutside diameter	65.1 mm
Consists of	Clamp bearing Clamp ring
Outer ring width	25.4 mm
BInner ring width	31 mm
Locking collar and inner ring width	31 mm
Locking collar outside diameter	37.5 mm
Basic radial load static	7800 N
Basic radial load dynamic	14900 N
Ball centre to inner ring end distance	23.5 mm
Ball centre to outer ring end distance	12.7 mm
Original number equivalent	RCSMB25/65-FA106
Weight	0.23 kg
