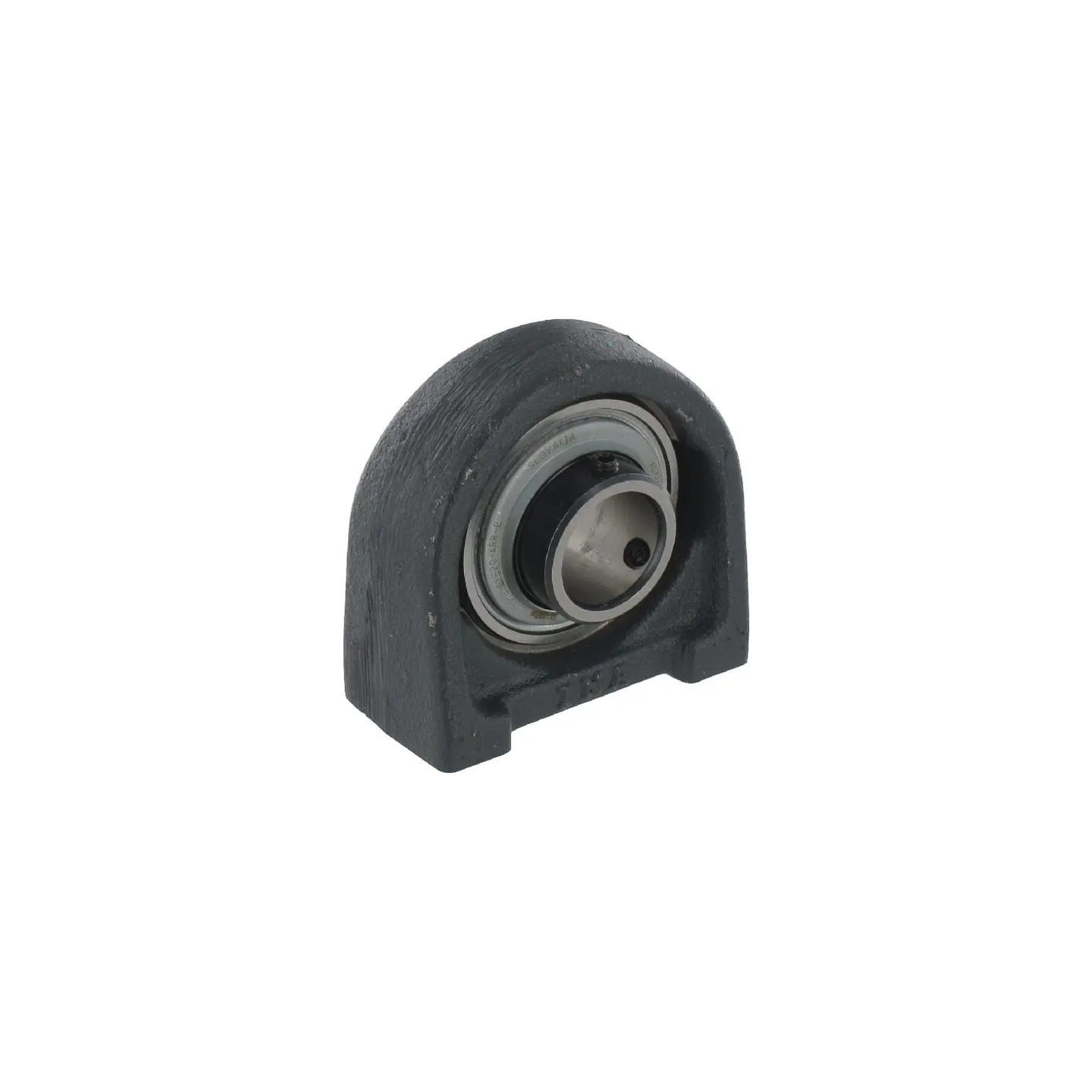

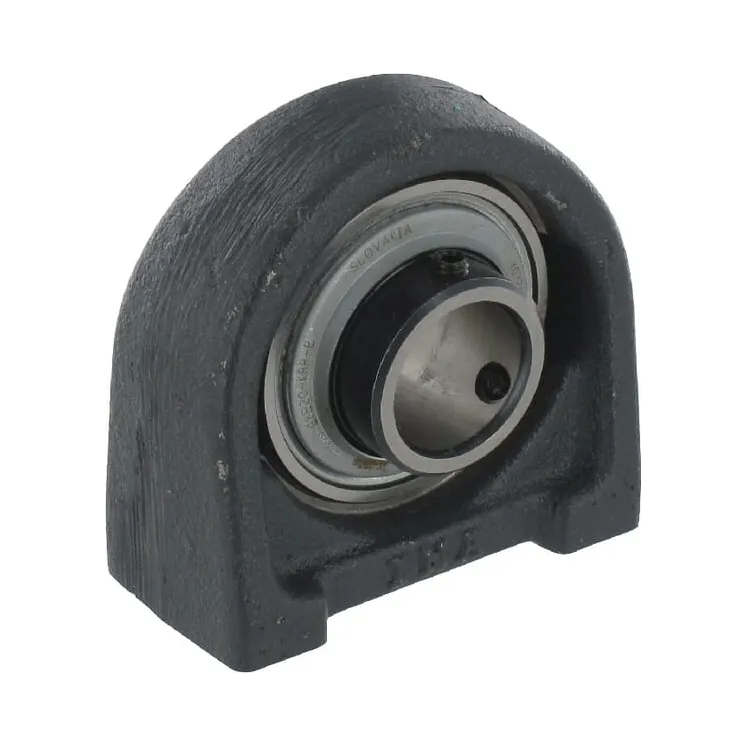

Gultņu bloks stacionārs, komplektā RSHEY40N

Name: Gultņu bloks stacionārs, komplektā RSHEY40N
Brand: INA/FAG
SKU: RSHEY40N
Price: 89.01 EUR
Availability: InStock

Apmaksas iespējas

89,01 €

AR PVN

4-5 Darba dienas

Gultņu bloks stacionārs, komplektā RSHEY40N INA/FAG

IR NOLIKTAVĀ

ID: 65226

Apraksts

Part number	RSHEY40N
EAN	4054372554858
Unit	Each
Details	Short design
Properties	Inner bearing has extended inner ring with clamp ring on both sides Can be subsequently lubricated
Benefits	Low space requirement
Housing type	Pillow block - short
dBearing inside diameter	40 mm
Consists of	Bearing block Clamp ring
Total length	116 mm
AHousing width	48 mm
HTotal height	99 mm
BBearing inner ring width	49.2 mm
Flange thickness	2.5 mm
HShaft vertical distance	99 mm
OBearing balls distance to mounting surface	30.2 mm
Mounting holes distance	88.9 mm
Grease nipple thread diameter	M6
Mounting thread diameter	M12
Weight	1.53 kg
Original number equivalent	RSHEY40-N
