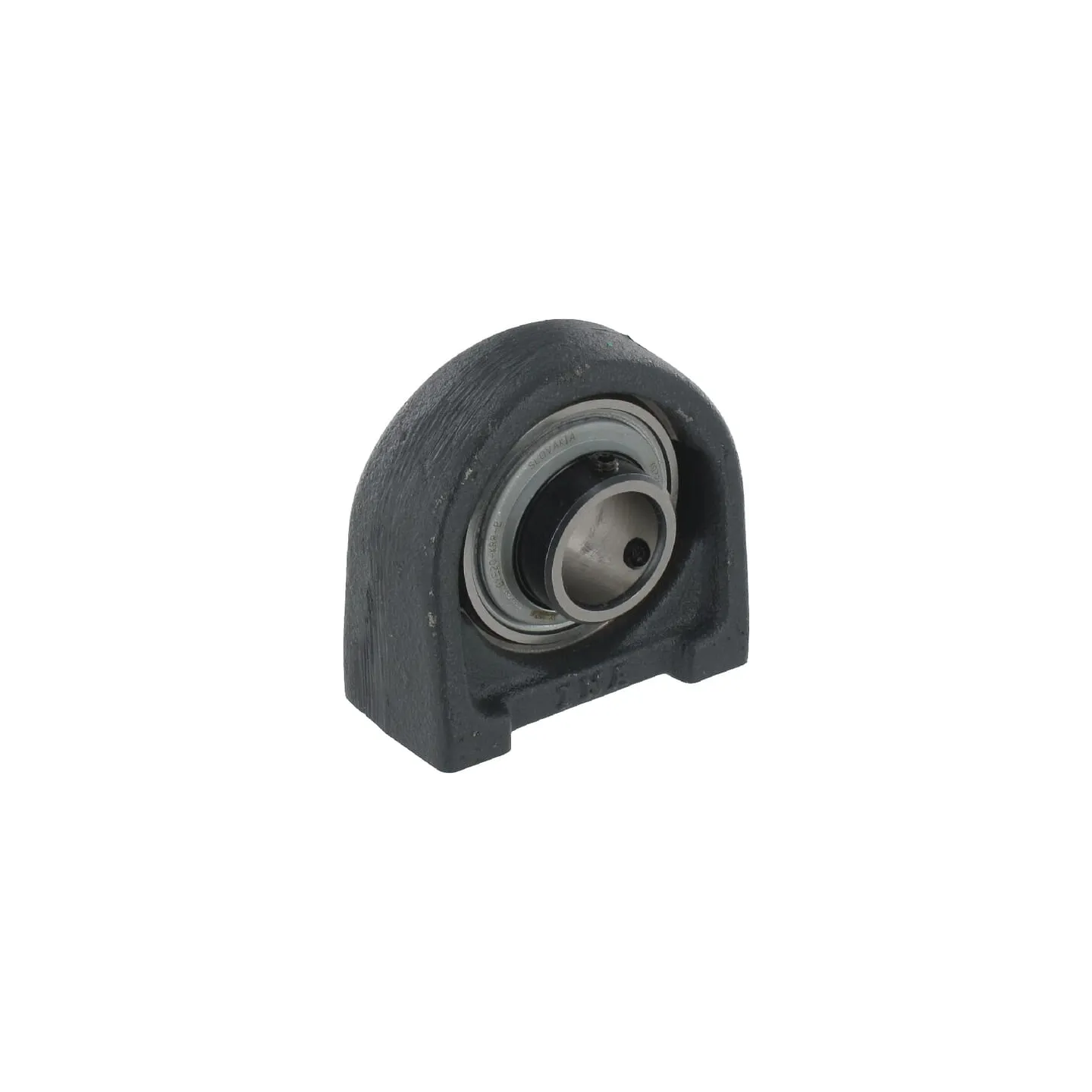

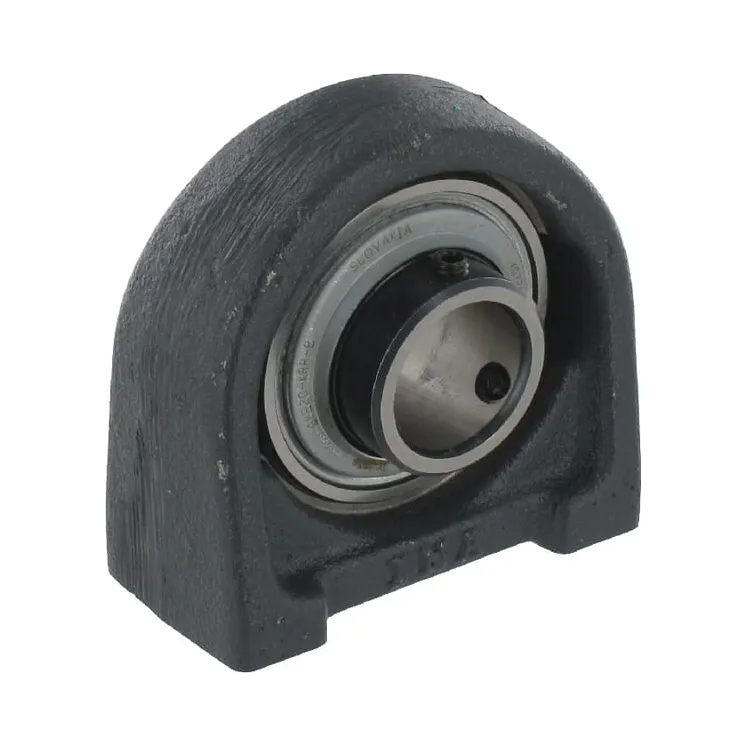

Gultņu bloks stacionārs, komplektēts RSHEY15

Name: Gultņu bloks stacionārs, komplektēts RSHEY15
Brand: INA/FAG
SKU: RSHEY15
Price: 47.63 EUR
Availability: InStock

Apmaksas iespējas

47,63 €

AR PVN

4-5 Darba dienas

Gultņu bloks stacionārs, komplektēts RSHEY15 INA/FAG

IR NOLIKTAVĀ

ID: 65247

Apraksts

Part number	RSHEY15
EAN	4012802817133
Unit	Each
Details	Short design
Properties	Inner bearing has extended inner ring with clamp ring on both sides Can be subsequently lubricated
Benefits	Low space requirement
Housing type	Pillow block - short
dBearing inside diameter	15 mm
Consists of	Bearing block Clamp ring
Total length	63 mm
AHousing width	30 mm
HTotal height	57 mm
BBearing inner ring width	27.4 mm
Flange thickness	4 mm
HShaft vertical distance	57 mm
OBearing balls distance to mounting surface	15.9 mm
Mounting holes distance	47 mm
Grease nipple thread diameter	M6
Mounting thread diameter	M8
Weight	0.37 kg
Original number equivalent	RSHEY15
