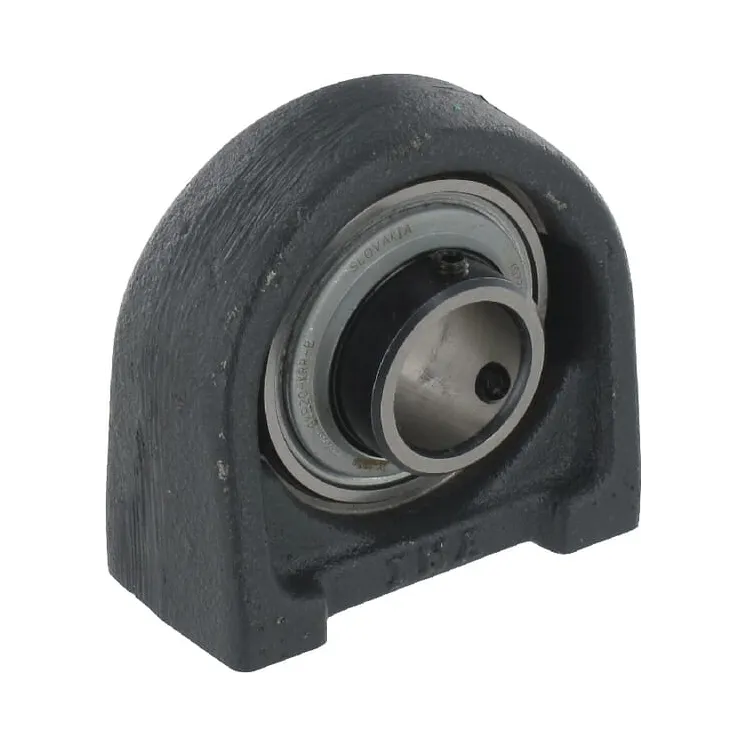

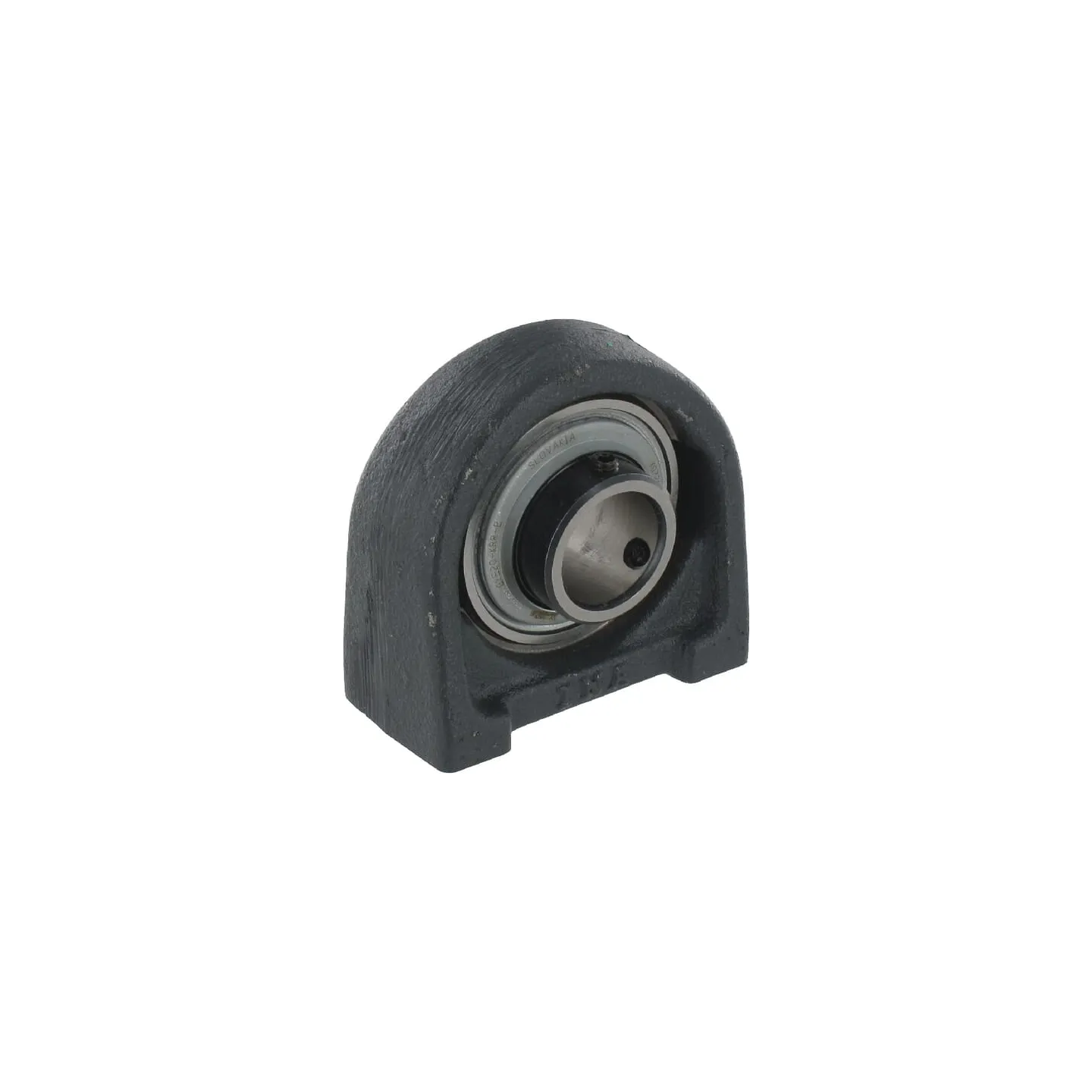

Gultņu bloks stacionārs, komplektā RSHEY60N

Name: Gultņu bloks stacionārs, komplektā RSHEY60N
Brand: INA/FAG
SKU: RSHEY60N
Price: 177.39 EUR
Availability: InStock

Apmaksas iespējas

177,39 €

AR PVN

4-5 Darba dienas

Gultņu bloks stacionārs, komplektā RSHEY60N INA/FAG

IR NOLIKTAVĀ

ID: 65253

Apraksts

Part number	RSHEY60N
EAN	4054372939488
Unit	Each
Details	Short design
Properties	Inner bearing has extended inner ring with clamp ring on both sides Can be subsequently lubricated
Benefits	Low space requirement
Housing type	Pillow block - short
dBearing inside diameter	60 mm
Consists of	Bearing block Clamp ring
Total length	150 mm
AHousing width	60 mm
HTotal height	140 mm
BBearing inner ring width	65.1 mm
Flange thickness	15 mm
HShaft vertical distance	140 mm
OBearing balls distance to mounting surface	39.7 mm
Mounting holes distance	118 mm
Grease nipple thread diameter	M6
Mounting thread diameter	M16
Weight	3.9 kg
Original number equivalent	RSHEY60-N
