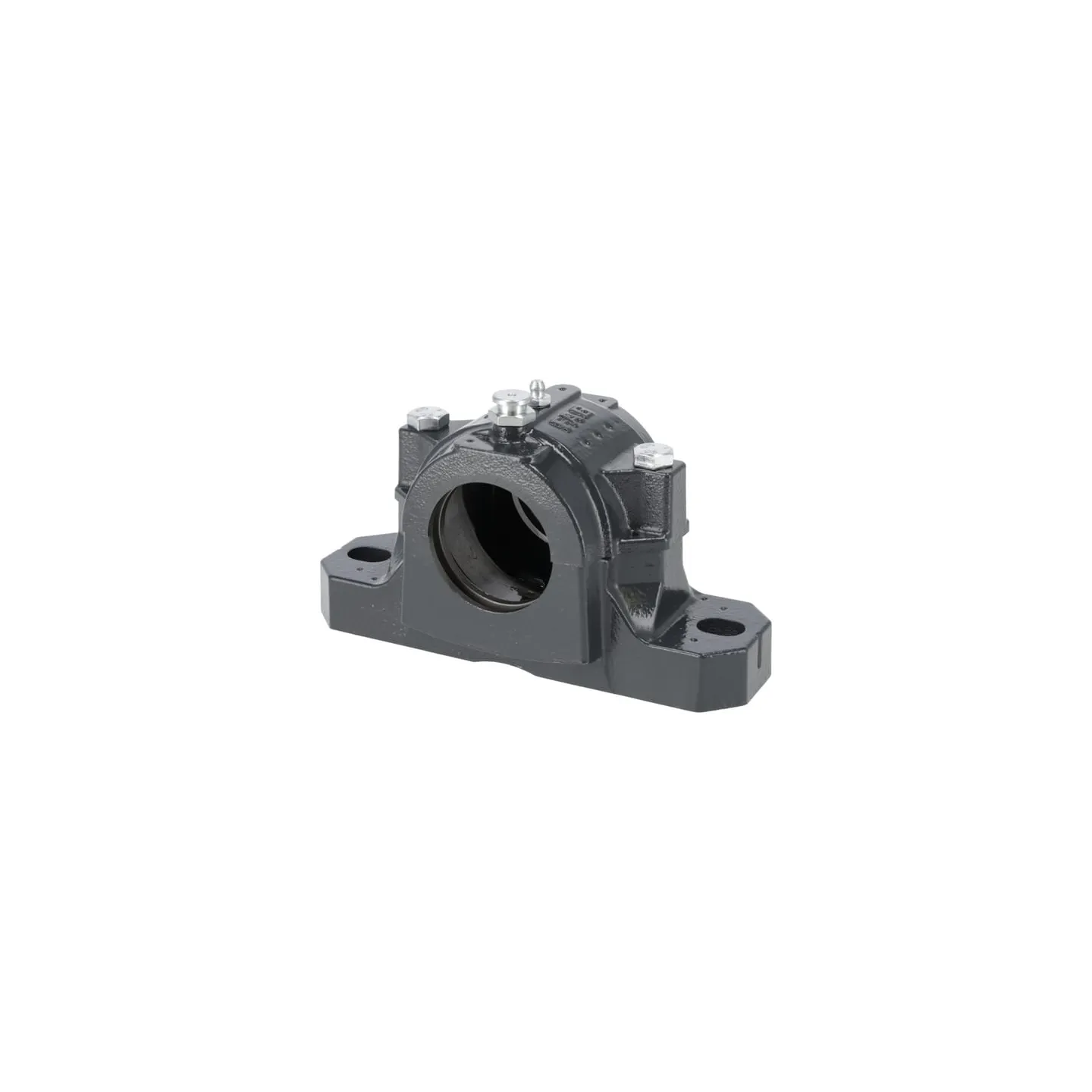

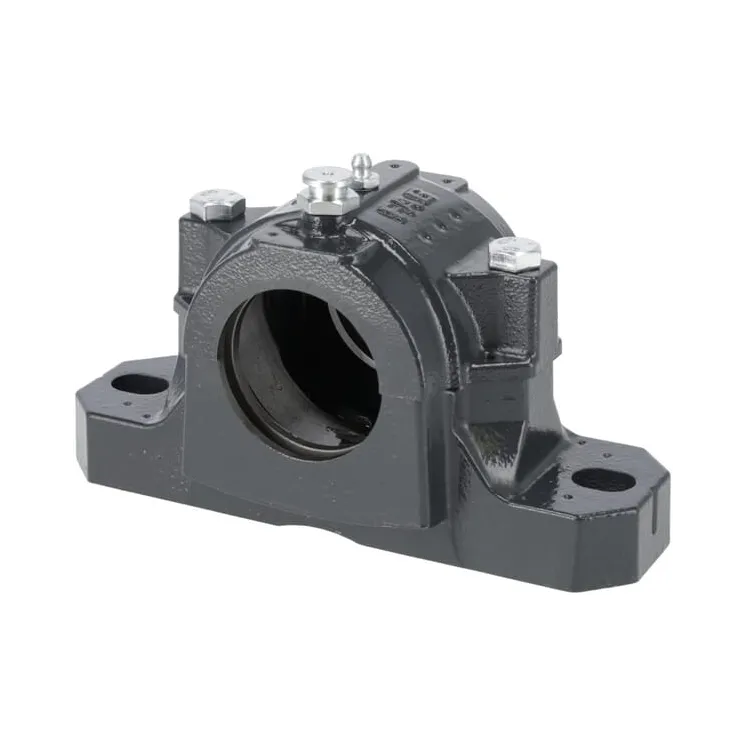

Plummer bloku sadalīts korpuss SES509L SNV085L

Name: Plummer bloku sadalīts korpuss SES509L SNV085L
Brand: INA/FAG
SKU: SES509L
Price: 91.72 EUR
Availability: InStock

Apmaksas iespējas

91,72 €

AR PVN

4-5 Darba dienas

Plummer bloku sadalīts korpuss SES509L INA/FAG SNV085L

IR NOLIKTAVĀ

ID: 65281

Apraksts

Part number	SES509L
EAN	4064327528452
Unit	Each
Application range	Agricultural machines Heavy haulage installations Paper machines
Properties	Equipped with lubrication points Assembly feet strengthened with support strips Suitable for barrel roller bearings and self-aligning ball bearings Fixed and mobile bearing positions possible
Housing type	n/a
Housing length	205 mm
Housing width	60 mm
Consists of	Two-piece bearing housing
Housing height	114 mm
Mounting foot height	25 mm
Number of mounting holes	2
Mounting holes distance	170 mm
Mounting holes length	20 mm
Bolt size	12 mm
Inside diameter	30 mm
Shaft centre to bottom distance	60 mm
Housing material	Cast iron
Original number equivalent	SNV085-F-L
