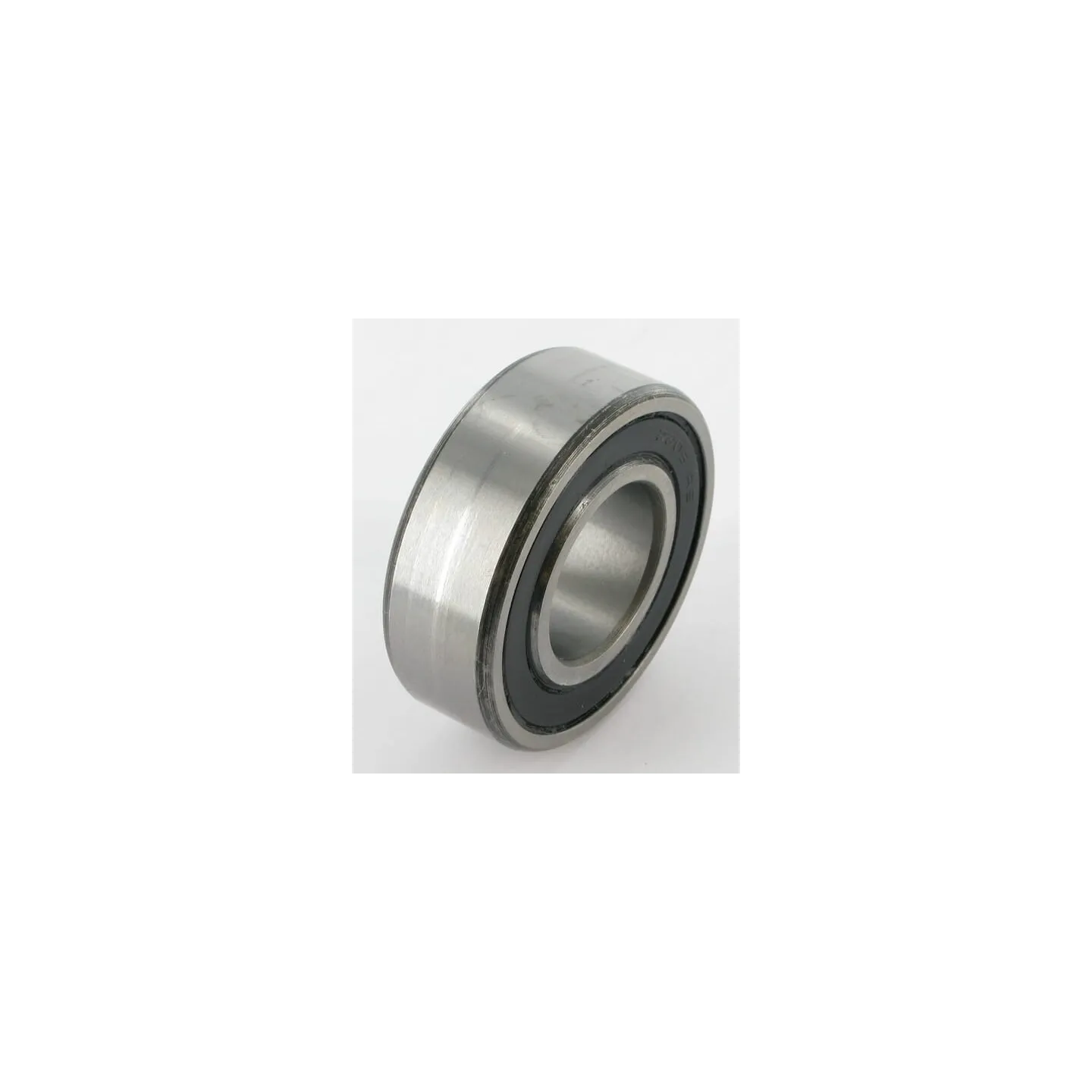

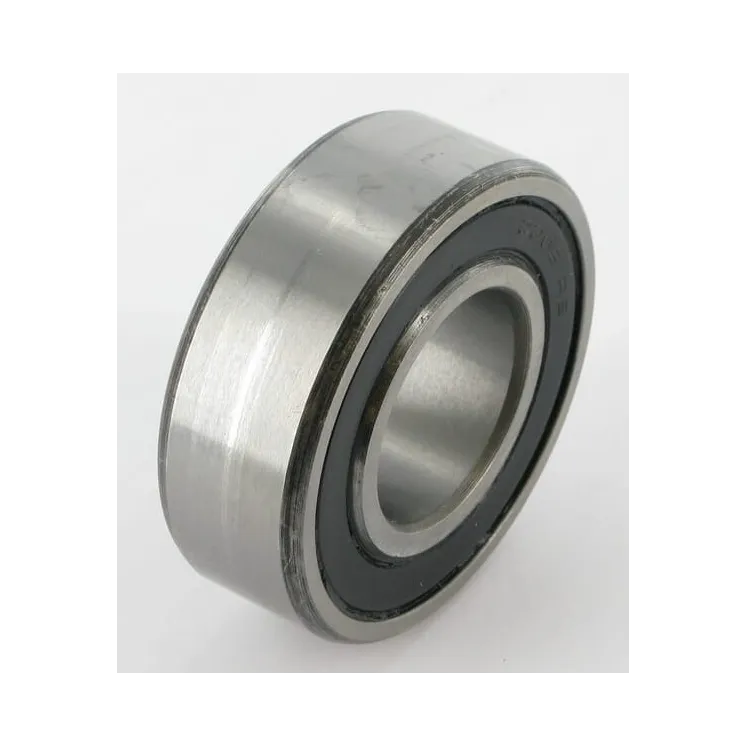

Kāpurķēžu rullīšu gultnis STO10X

Name: Kāpurķēžu rullīšu gultnis STO10X
Brand: INA/FAG
SKU: STO10X
Price: 43.85 EUR
Availability: BackOrder

Apmaksas iespējas

43,85 €

AR PVN

Pēc pieprasījuma

Kāpurķēžu rullīšu gultnis STO10X INA/FAG

Uz pasūtījumu

ID: 65297

Apraksts

Part number	STO10X
EAN	4012802424348
Unit	Each
Long description	Track rollers single and double-row INA/FAG, series NA ..
Details	Low-friction steel seal
Application range	Packaging machines Transport systems Roll-up doors Roller tensioners
Properties	Single or two-row arrangements with especially thick-walled outer rings Absorb high radial loads and axial loads in both directions
Technical info	Outer ring of lateral surface is annular (R500) Temperature range: -30°C to +140°C Cage is full complement With axial guidance via driving disc
dInside diameter	10 mm
DOutside diameter	30 mm
CWidth	12 mm
Sealing	Open
Bearing model type	Track rollers
Basic radial load static	9900 N
Basic radial load dynamic	8800 N
Rows number	1
COuter ring width	11.8 mm
Max working temperature	140 °C
Min working temperature	-30 °C
Regreasable	Yes
Weight	0.05058 kg
Original number equivalent	STO10-X
