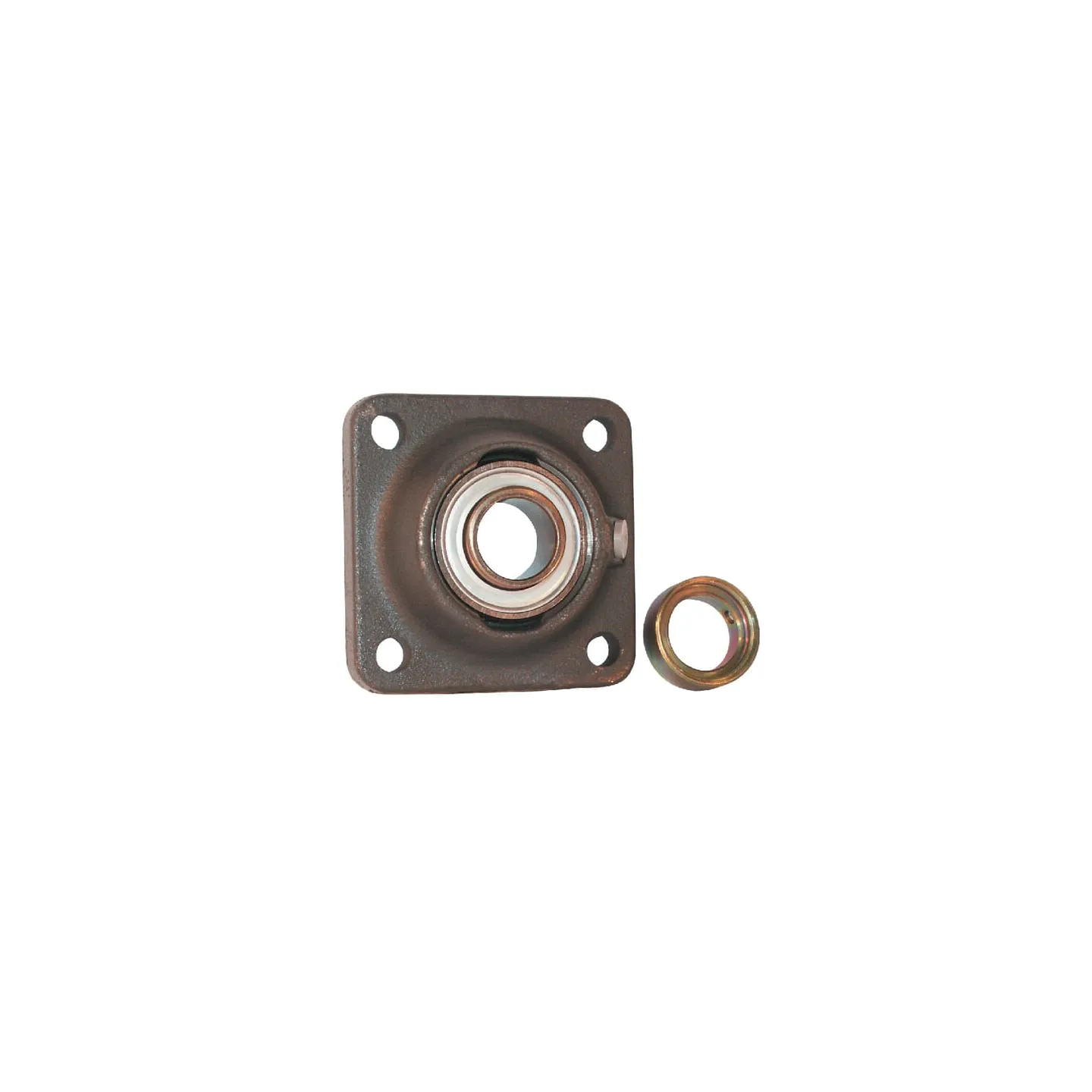

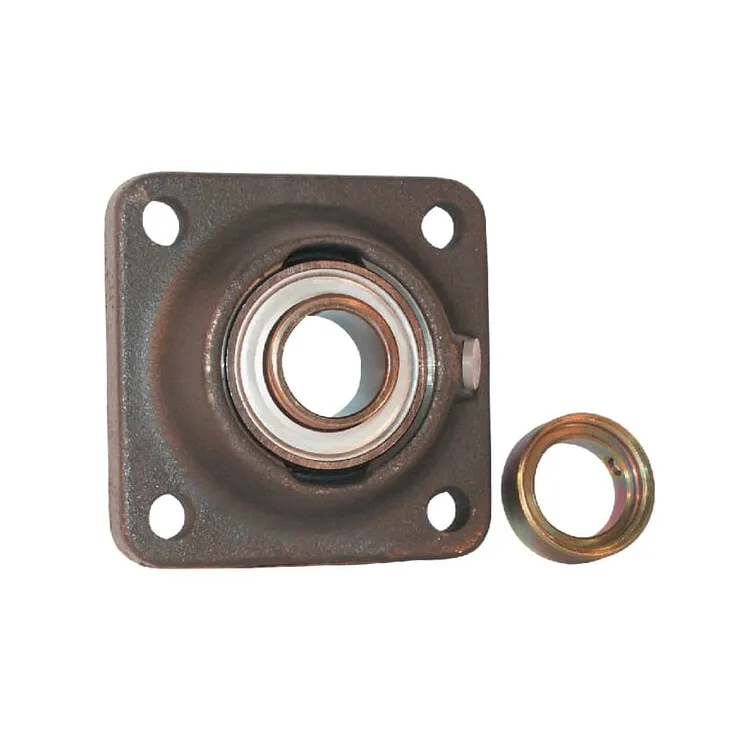

Korpuss TCJ TCJ50 INA/FAG
IR NOLIKTAVĀ

65311

Part number
TCJ50
EAN4012802804430
Unit
Each
Details
Triple seal on two sides
Application range
  • Mobile mechanical engineering
  • Stationary mechanical engineering
Properties
  • Inner bearing has extended inner ring with clamp ring on both sides
  • Subsequent lubrication possible
Benefits
Very good protection against contamination
Housing type
Square flange
Bearing inside diameter
50 mm
Consists of
  • Bearing block
  • Clamp ring
LTotal length
143 mm
Housing width
143 mm
Total height
66.2 mm
Flange thickness
13 mm
Mounting holes distance
111 mm
NMounting holes diameter
18 mm
Grease nipple thread diameter
M6
Weight
2.62 kg
Basic radial load static
23200 N
Basic radial load dynamic
35000 N
Original number equivalent
TCJ50-N
  • Zīmols
    INA/FAG
  • Norāde
    TCJ50
  • Pieejamās vispirms
    2 vienības:
  • Stāvoklis
    Jauns
  • EAN
    4012802804430
