Korpuss TCJ TCJ45

Apmaksas iespējas
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
122,83 €
AR PVN
4-5 Darba dienas

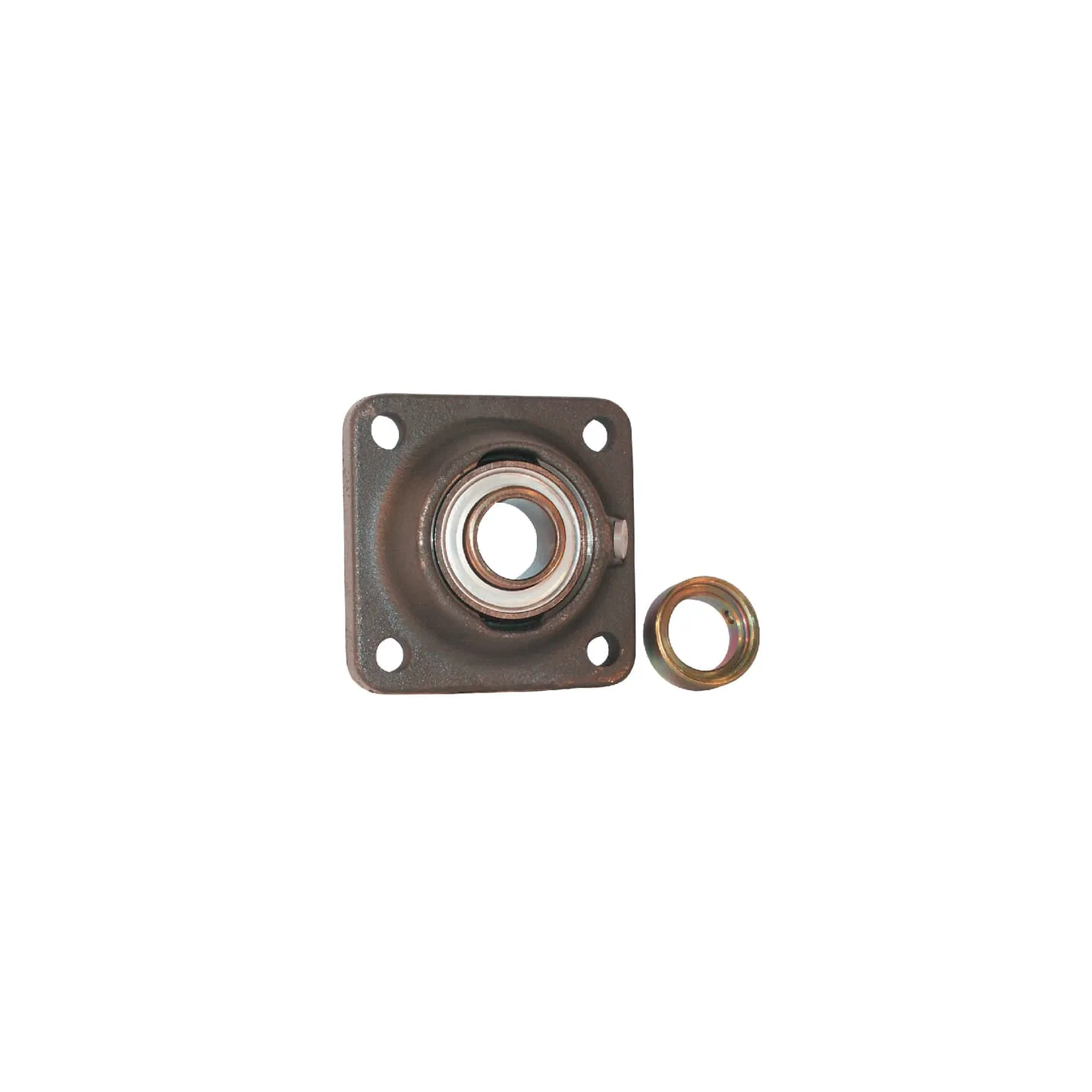

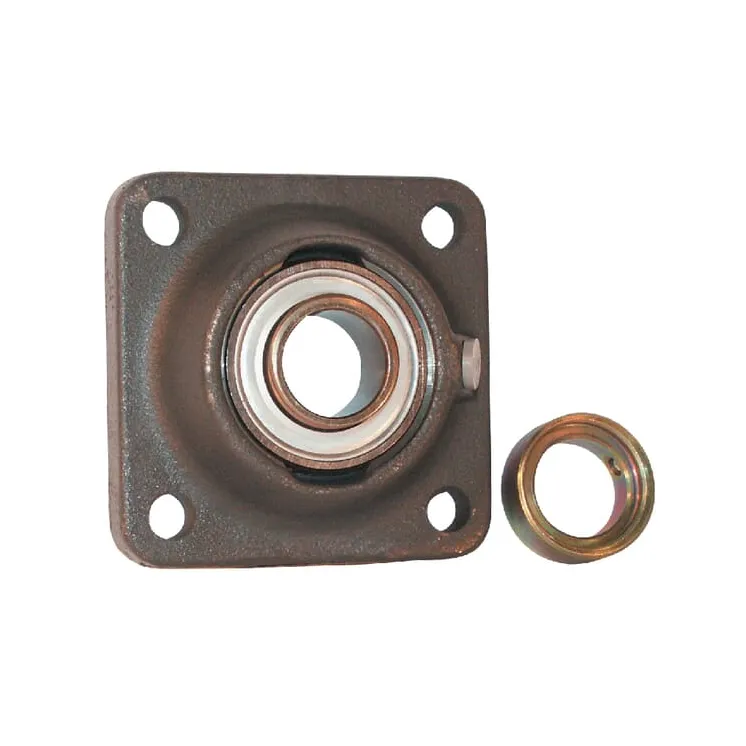

Korpuss TCJ TCJ45 INA/FAG
IR NOLIKTAVĀ

65312

Part number
TCJ45
EAN4054372939570
Unit
Each
Details
Triple seal on two sides
Application range
  • Mobile mechanical engineering
  • Stationary mechanical engineering
Properties
  • Inner bearing has extended inner ring with clamp ring on both sides
  • Subsequent lubrication possible
Benefits
Very good protection against contamination
Housing type
Square flange
Bearing inside diameter
45 mm
Consists of
  • Bearing block
  • Clamp ring
LTotal length
137 mm
Housing width
137 mm
Total height
59.1 mm
Flange thickness
13 mm
Mounting holes distance
105 mm
NMounting holes diameter
14 mm
Grease nipple thread diameter
M6
Weight
2.37 kg
Basic radial load static
20400 N
Basic radial load dynamic
34500 N
Original number equivalent
TCJ45
  • Zīmols
    INA/FAG
  • Norāde
    TCJ45
  • Pieejamās vispirms
    2 vienības:
  • Stāvoklis
    Jauns
  • EAN
    4054372939570
