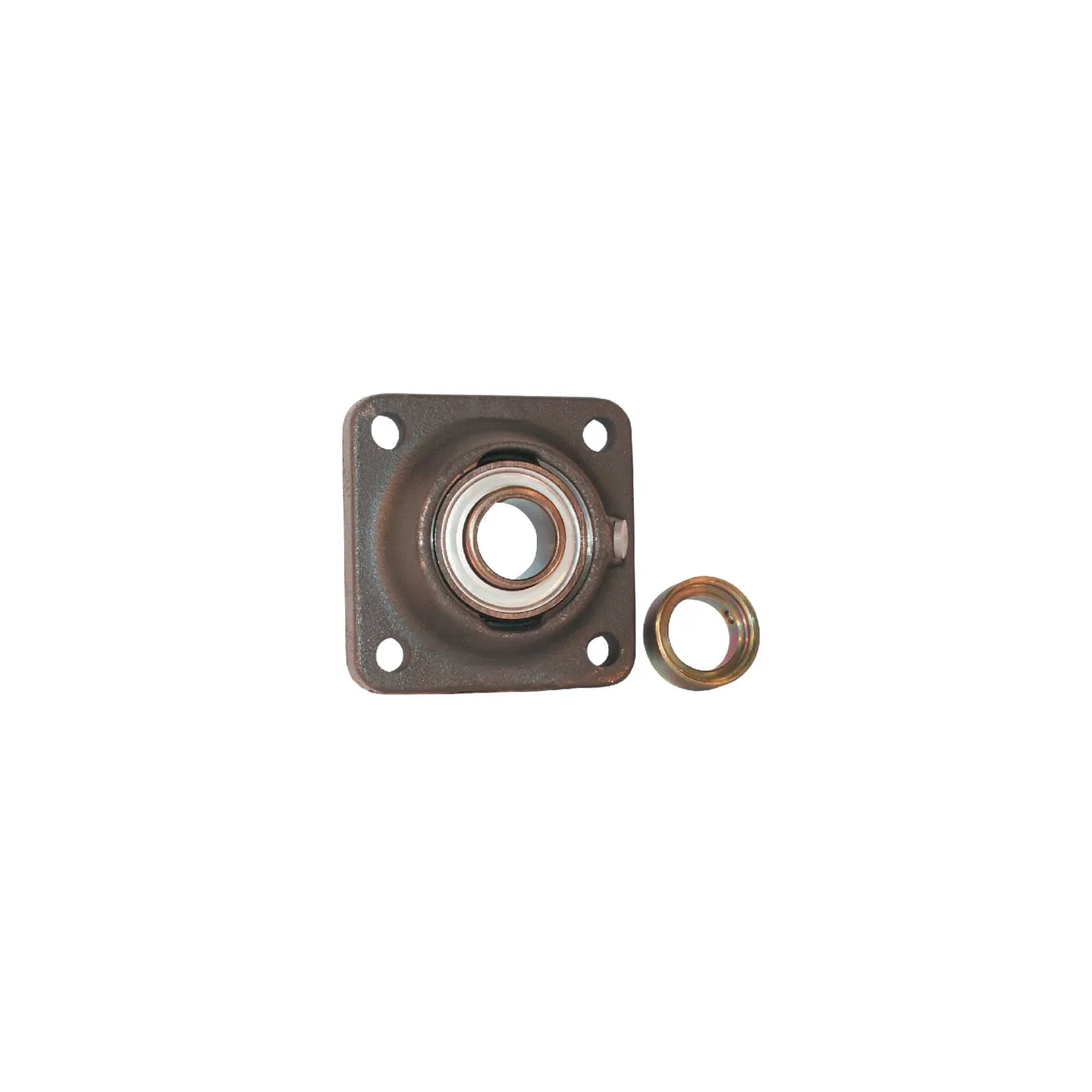

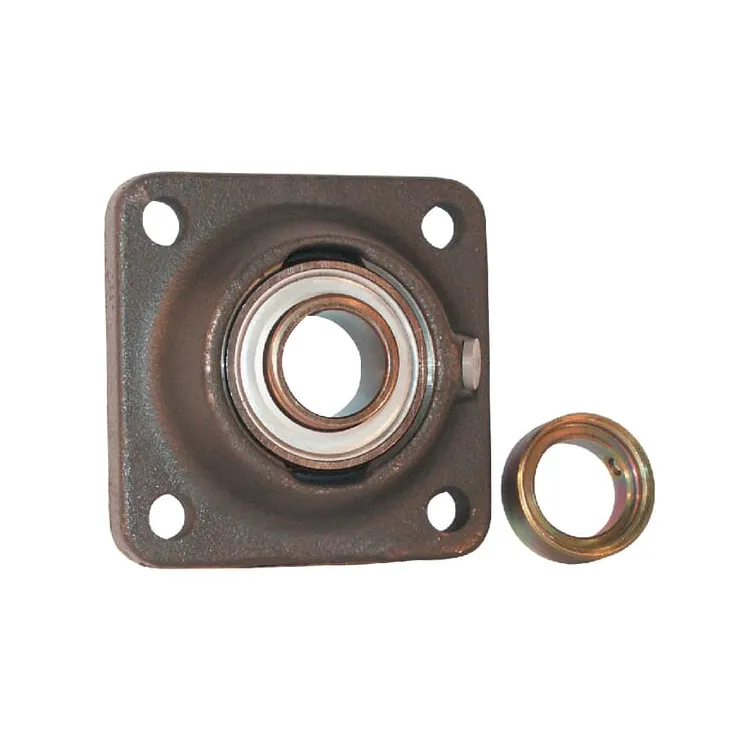

Korpuss TCJ TCJ55 INA/FAG
Uz pasūtījumu

65313

Part number
TCJ55
EAN4064327053169
Unit
Each
Details
Triple seal on two sides
Application range
  • Mobile mechanical engineering
  • Stationary mechanical engineering
Properties
  • Inner bearing has extended inner ring with clamp ring on both sides
  • Subsequent lubrication possible
Benefits
Very good protection against contamination
Housing type
Square flange
Bearing inside diameter
55 mm
Consists of
  • Bearing block
  • Clamp ring
LTotal length
162 mm
Housing width
162 mm
Total height
74.6 mm
Flange thickness
13 mm
Mounting holes distance
130 mm
NMounting holes diameter
18 mm
Grease nipple thread diameter
M6
Weight
3.49 kg
Basic radial load static
29000 N
Basic radial load dynamic
46000 N
Original number equivalent
TCJ55
  • Zīmols
    INA/FAG
  • Norāde
    TCJ55
  • Stāvoklis
    Jauns
  • EAN
    4064327053169
