Korpuss TCJ TCJ60 INA/FAG
search
  • Korpuss TCJ TCJ60 INA/FAG

Korpuss TCJ TCJ60

Apmaksas iespējas
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
185,88 €
AR PVN
4-5 Darba dienas

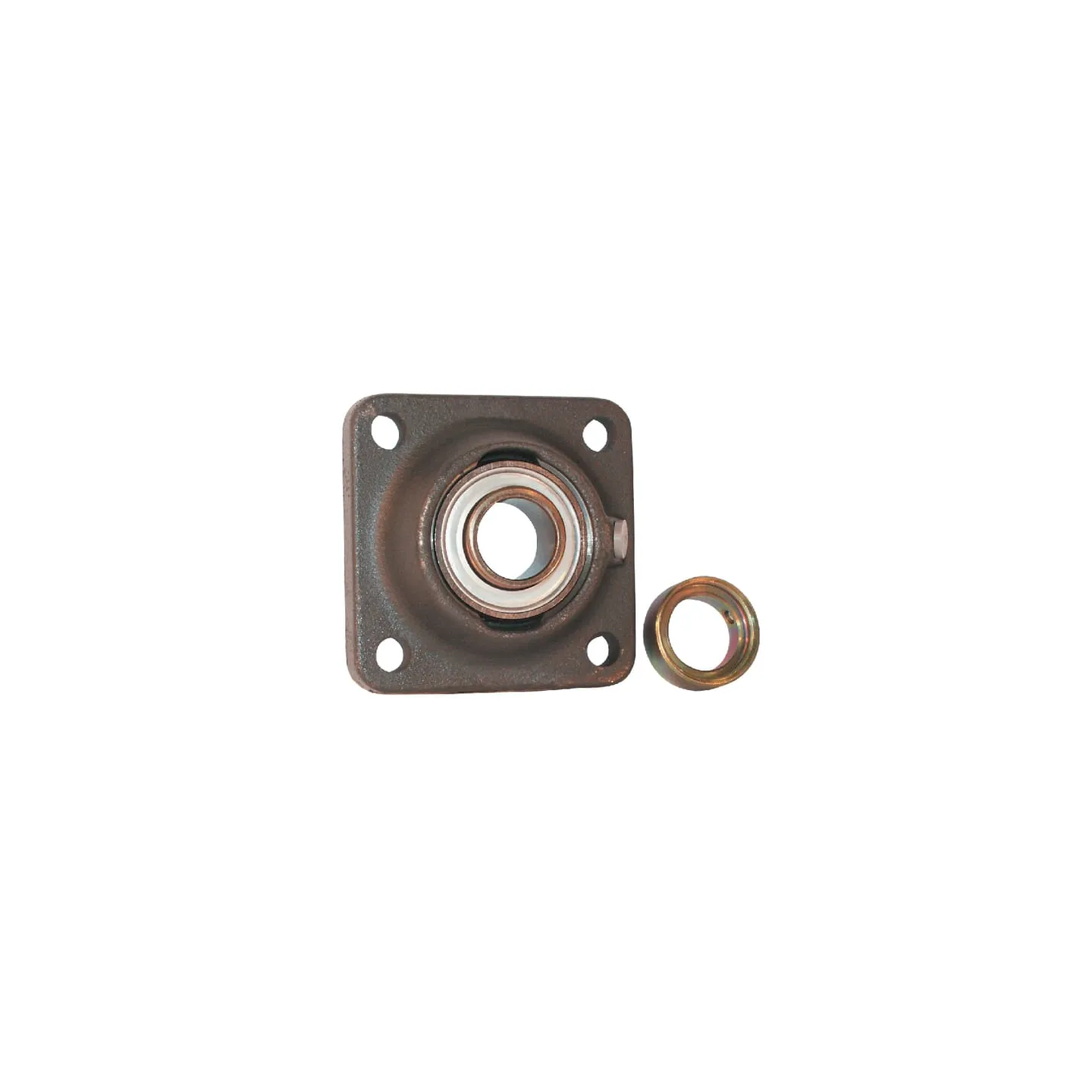

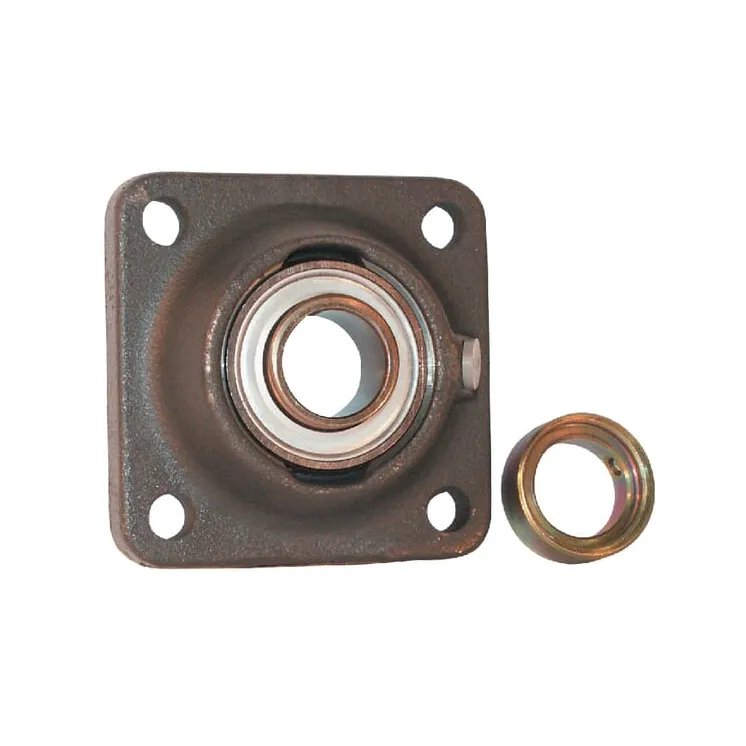

Korpuss TCJ TCJ60 INA/FAG
IR NOLIKTAVĀ

65321

Part number
TCJ60
EAN4054372939099
Unit
Each
Details
Triple seal on two sides
Application range
  • Mobile mechanical engineering
  • Stationary mechanical engineering
Properties
  • Inner bearing has extended inner ring with clamp ring on both sides
  • Subsequent lubrication possible
Benefits
Very good protection against contamination
Housing type
Square flange
Bearing inside diameter
60 mm
Consists of
  • Bearing block
  • Clamp ring
LTotal length
175 mm
Housing width
175 mm
Total height
80.9 mm
Flange thickness
15 mm
Mounting holes distance
143 mm
NMounting holes diameter
18 mm
Grease nipple thread diameter
M6
Weight
4.25 kg
Basic radial load static
36000 N
Basic radial load dynamic
56000 N
Original number equivalent
TCJ60-N
  • Zīmols
    INA/FAG
  • Norāde
    TCJ60
  • Pieejamās vispirms
    5 vienības:
  • Stāvoklis
    Jauns
  • EAN
    4054372939099
