Dzīvoklis TASE TASE60N

Name: Dzīvoklis TASE TASE60N
Brand: INA/FAG
SKU: TASE60N
Price: 229.78 EUR
Availability: BackOrder

Apmaksas iespējas

229,78 €

AR PVN

Pēc pieprasījuma

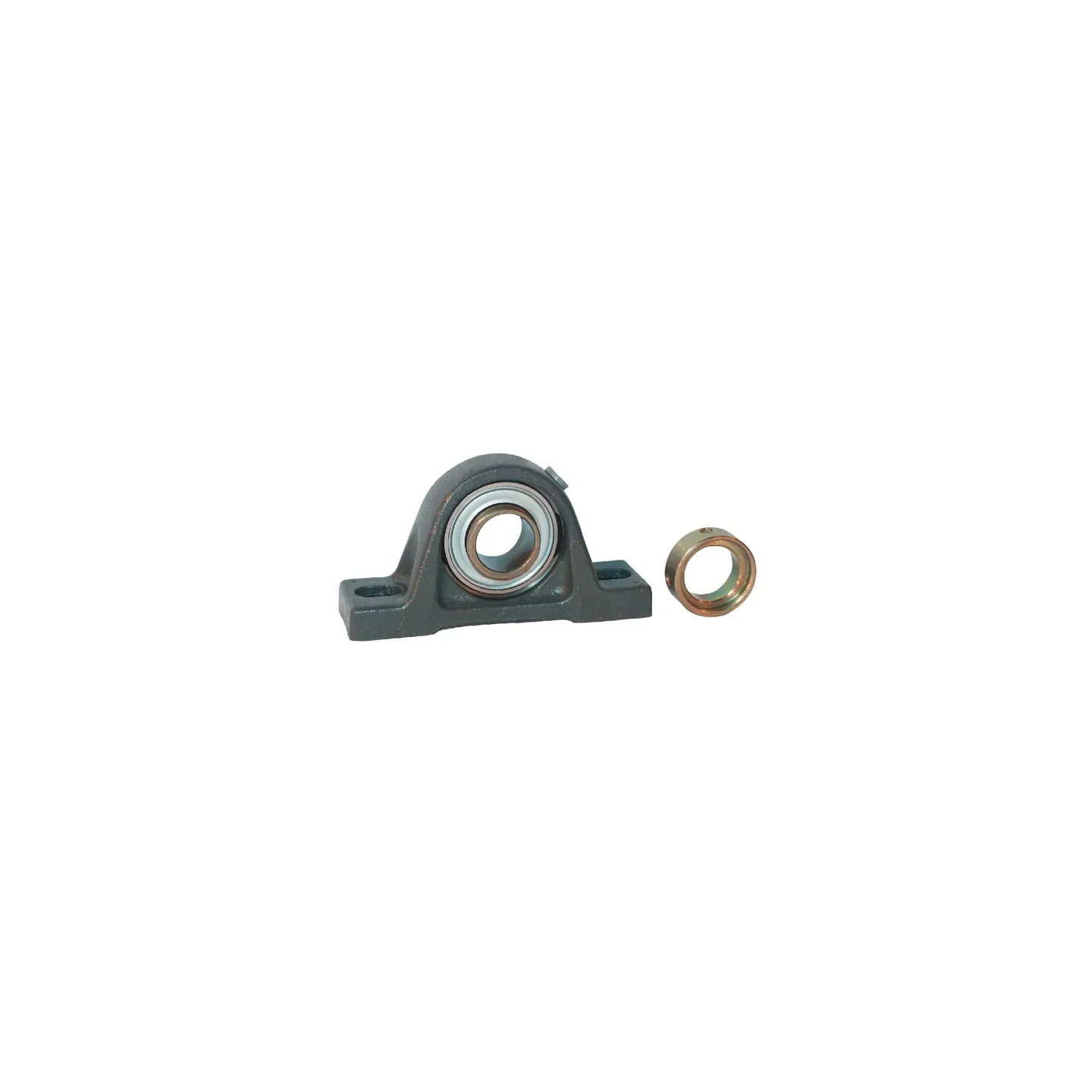

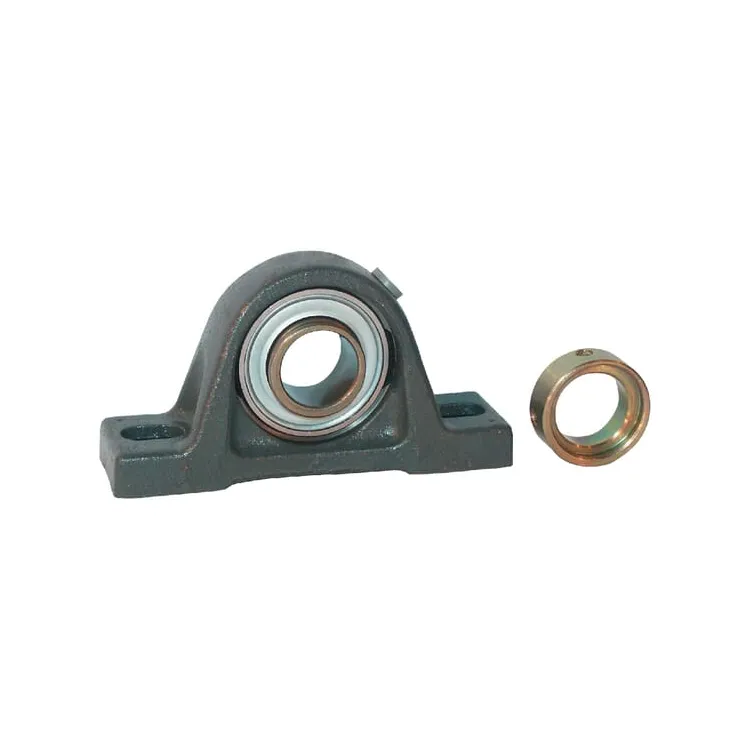

Dzīvoklis TASE TASE60N INA/FAG

Uz pasūtījumu

ID: 65324

Apraksts

Part number	TASE60N
EAN	4054372939082
Unit	Each
Details	Triple seal on two sides
Properties	Inner bearing has extended inner ring with clamp ring on both sides Can be subsequently lubricated
Benefits	Very good protection against contamination
Housing type	Pillow block
dBearing inside diameter	60 mm
Consists of	• Bearing block Clamp ring
WTotal length	240 mm
BHousing width	60 mm
HTotal height	140 mm
LBearing inner ring width	77.9 mm
CFlange thickness	19 mm
Locking ring outside diameter	84 mm
AShaft vertical distance	69.9 mm
OBearing balls distance to mounting surface	46.8 mm
Mounting holes distance	190 mm
KMounting holes diameter	16.6 mm
Grease nipple thread diameter	M6
Weight	4.89 kg
Original number equivalent	TASE60-N
