Korpuss TME TME35N

Name: Korpuss TME TME35N
Brand: INA/FAG
SKU: TME35N
Price: 107.36 EUR
Availability: BackOrder

Apmaksas iespējas

107,36 €

AR PVN

Pēc pieprasījuma

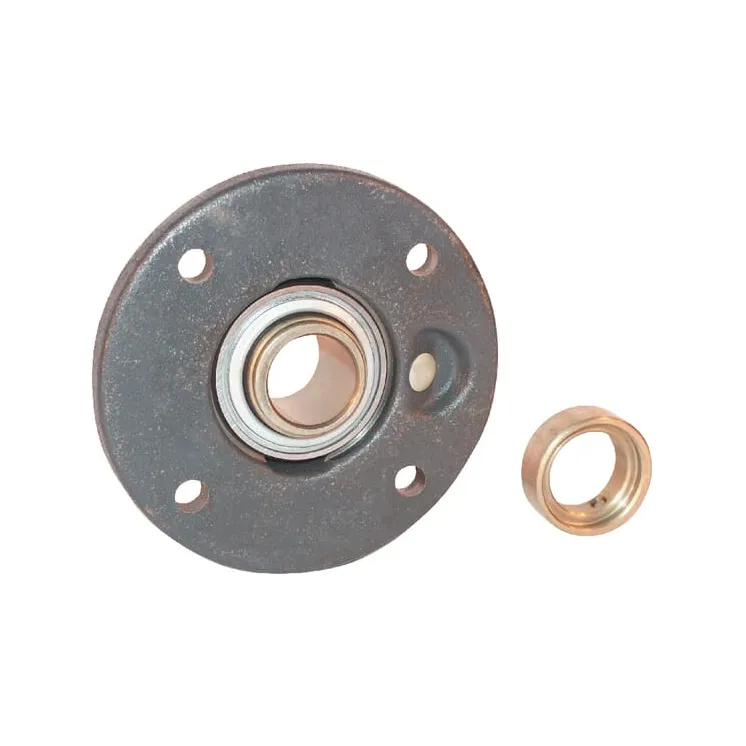

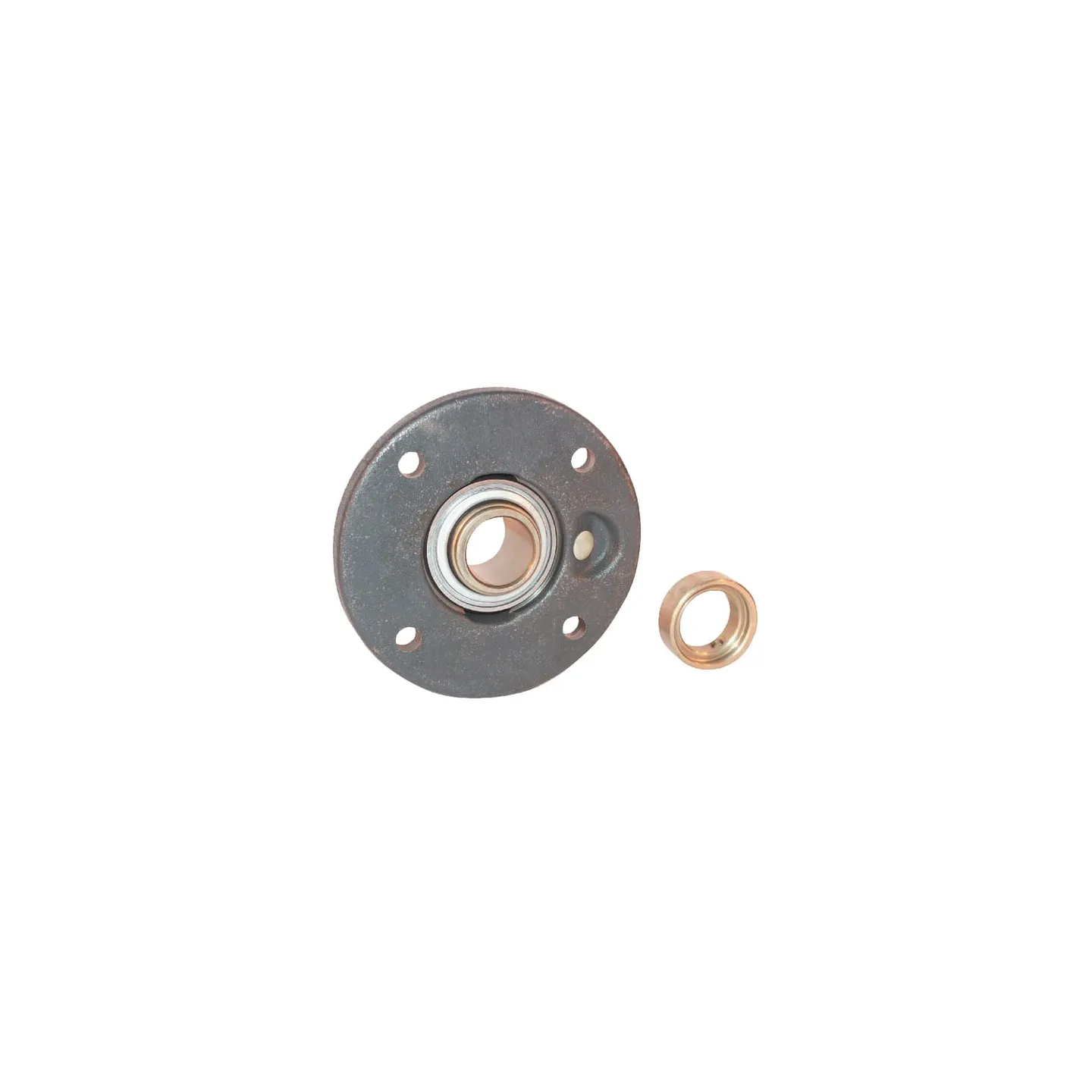

Korpuss TME TME35N INA/FAG

Uz pasūtījumu

ID: 65328

Apraksts

Part number	TME35N
EAN	4012802803037
Unit	Each
Long description	Ball bearing units INA/FAG, series TME
Details	Triple seal on two sides
Application range	Mobile mechanical engineering Stationary mechanical engineering
Properties	Inner bearing has extended inner ring with clamp ring on both sides Subsequent lubrication possible
Benefits	Very good protection against contamination
Housing type	Round flange
dBearing inside diameter	35 mm
Consists of	Bearing block Clamp ring
Housing width	135 mm
Total height	31.3 mm
Total width	37.7 mm
THousing height	20.5 mm
LBearing inner ring width	51.3 mm
CFlange thickness	10 mm
Locking ring outside diameter	51 mm
KMounting holes diameter	11.5 mm
Grease nipple thread diameter	M6
ZFitting edge diameter	90 mm
Weight	1.33 kg
Bearing material	Steel
Basic radial load static	15300 N
Basic radial load dynamic	25500 N
Original number equivalent	TME35-N
