Korpuss TME TME60N

Apmaksas iespējas
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
292,65 €
AR PVN
Pēc pieprasījuma

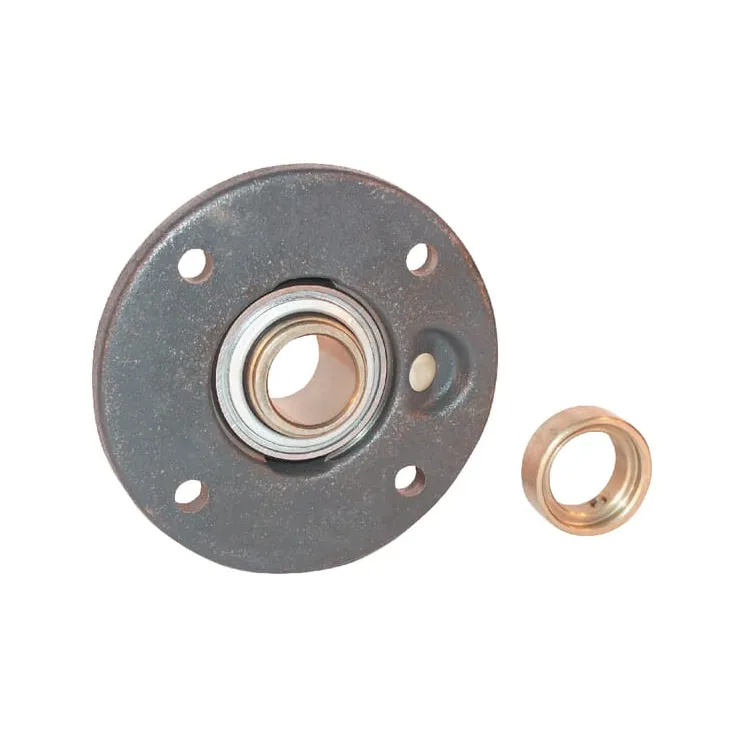

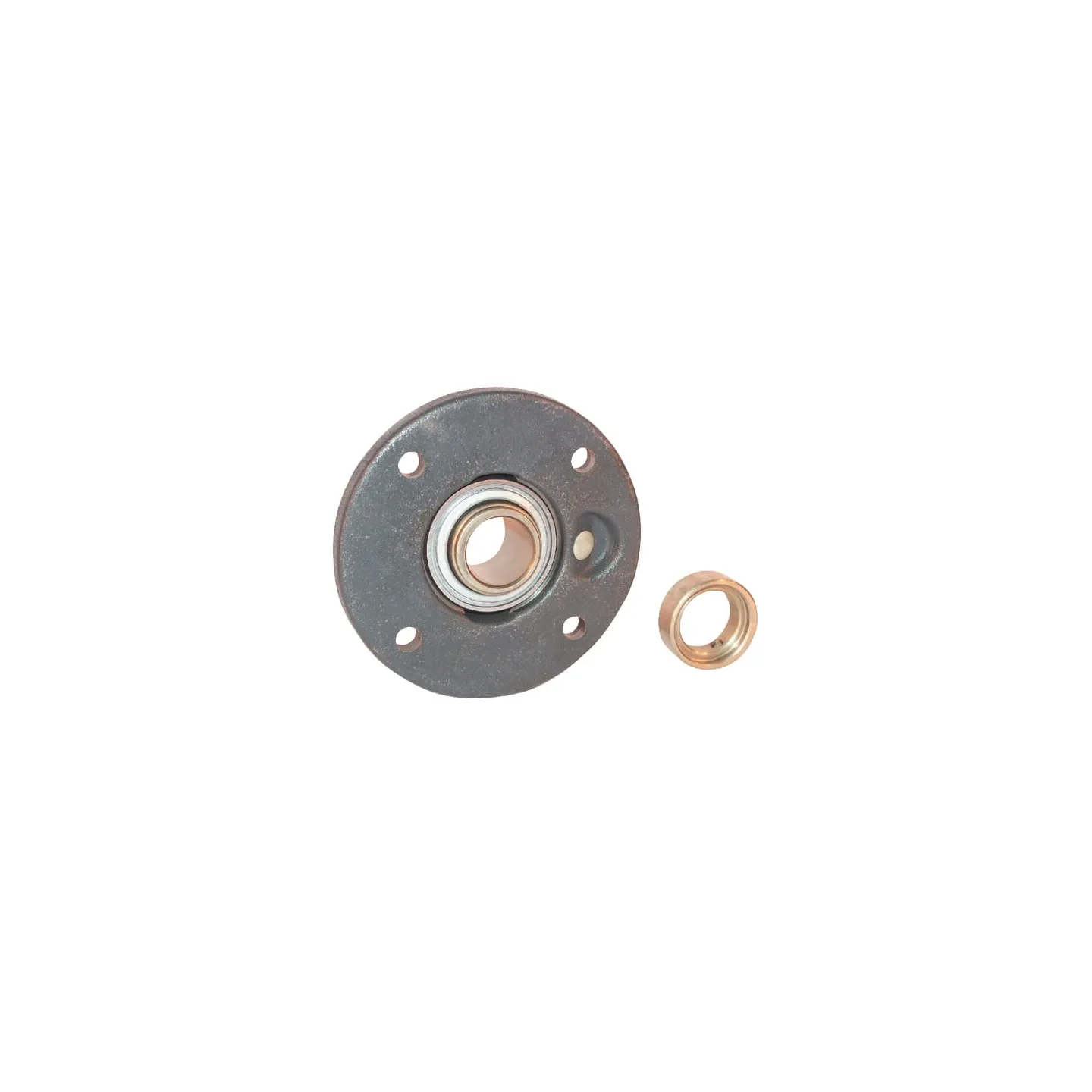

Korpuss TME TME60N INA/FAG
Uz pasūtījumu

65331

Part number
TME60N
EAN4012802817904
Unit
Each
Long description
Ball bearing units INA/FAG, series TME
Details
Triple seal on two sides
Application range
  • Mobile mechanical engineering
  • Stationary mechanical engineering
Properties
  • Inner bearing has extended inner ring with clamp ring on both sides
  • Subsequent lubrication possible
Benefits
Very good protection against contamination
Housing type
Round flange
dBearing inside diameter
60 mm
Consists of
  • Bearing block
  • Clamp ring
Housing width
195 mm
Total height
45.9 mm
Total width
77.9 mm
THousing height
29 mm
LBearing inner ring width
77.9 mm
CFlange thickness
16 mm
Locking ring outside diameter
84 mm
KMounting holes diameter
18 mm
Grease nipple thread diameter
M6
ZFitting edge diameter
135 mm
Weight
4.04 kg
Bearing material
Steel
Basic radial load static
36000 N
Basic radial load dynamic
54000 N
Original number equivalent
TME60-N
  • Zīmols
    INA/FAG
  • Norāde
    TME60N
  • Stāvoklis
    Jauns
  • EAN
    4012802817904
