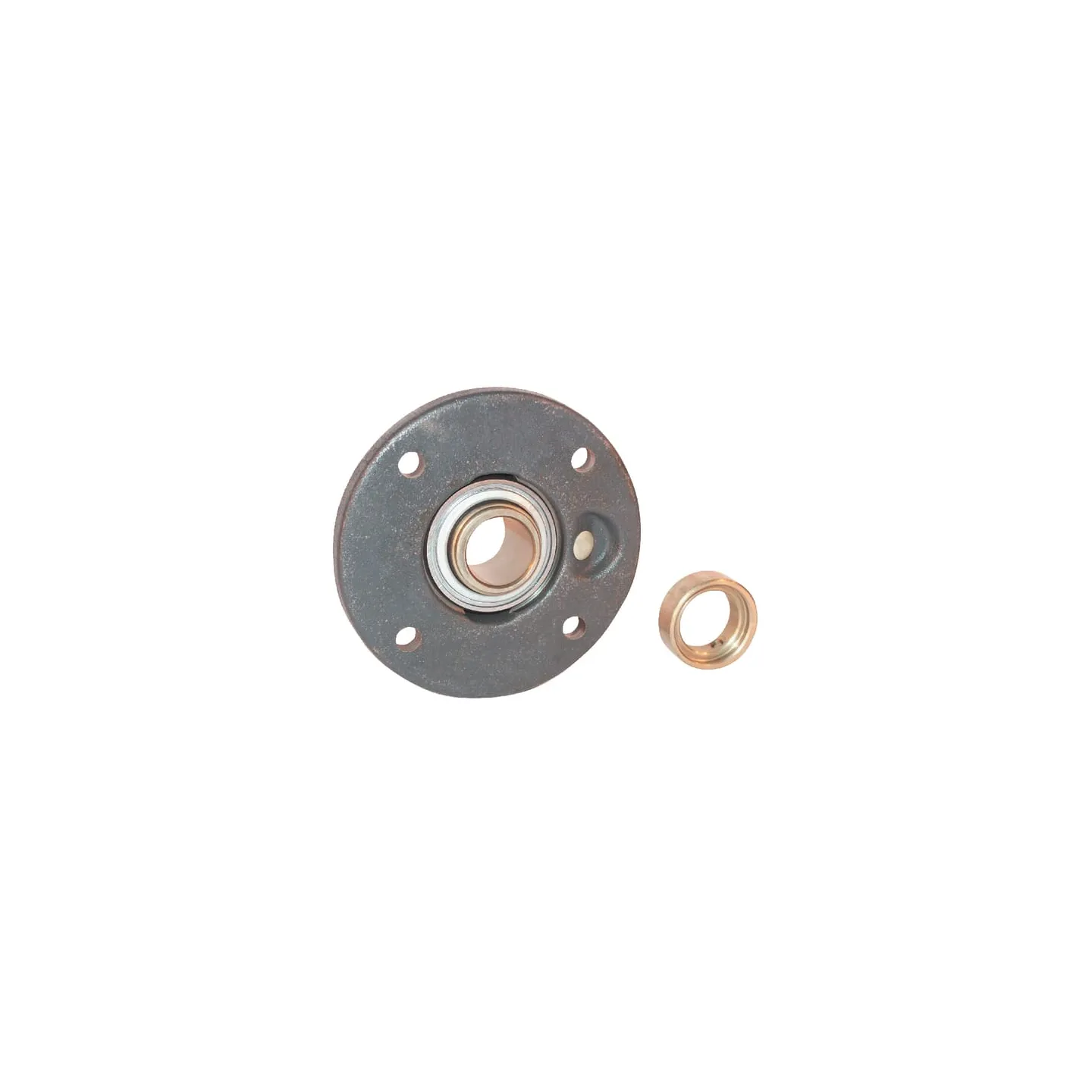

Korpuss TME TME40N

Name: Korpuss TME TME40N
Brand: INA/FAG
SKU: TME40N
Price: 136.25 EUR
Availability: InStock

Apmaksas iespējas

136,25 €

AR PVN

4-5 Darba dienas

Korpuss TME TME40N INA/FAG

IR NOLIKTAVĀ

ID: 65332

Apraksts

Part number	TME40N
EAN	4012802803945
Unit	Each
Long description	Ball bearing units INA/FAG, series TME
Details	Triple seal on two sides
Application range	Mobile mechanical engineering Stationary mechanical engineering
Properties	Inner bearing has extended inner ring with clamp ring on both sides Subsequent lubrication possible
Benefits	Very good protection against contamination
Housing type	Round flange
dBearing inside diameter	40 mm
Consists of	Bearing block Clamp ring
Housing width	145 mm
Total height	33.9 mm
Total width	56.5 mm
THousing height	23 mm
LBearing inner ring width	56.5 mm
CFlange thickness	11.5 mm
Locking ring outside diameter	58 mm
KMounting holes diameter	11.5 mm
Grease nipple thread diameter	M6
ZFitting edge diameter	100 mm
Weight	1.74 kg
Bearing material	Steel
Basic radial load static	19800 N
Basic radial load dynamic	34500 N
Original number equivalent	TME40-N
