Dzīvojamā vienība UCF UCF210 990227 VLD3731

Name: Dzīvojamā vienība UCF UCF210 990227 VLD3731
Brand: INA/FAG
SKU: UCF210
Price: 28.63 EUR
Availability: InStock

Apmaksas iespējas

28,63 €

AR PVN

4-5 Darba dienas

Dzīvojamā vienība UCF UCF210 INA/FAG 990227 VLD3731

IR NOLIKTAVĀ

ID: 65348

Apraksts

Part number	UCF210
EAN	4047643247580
Unit	Each

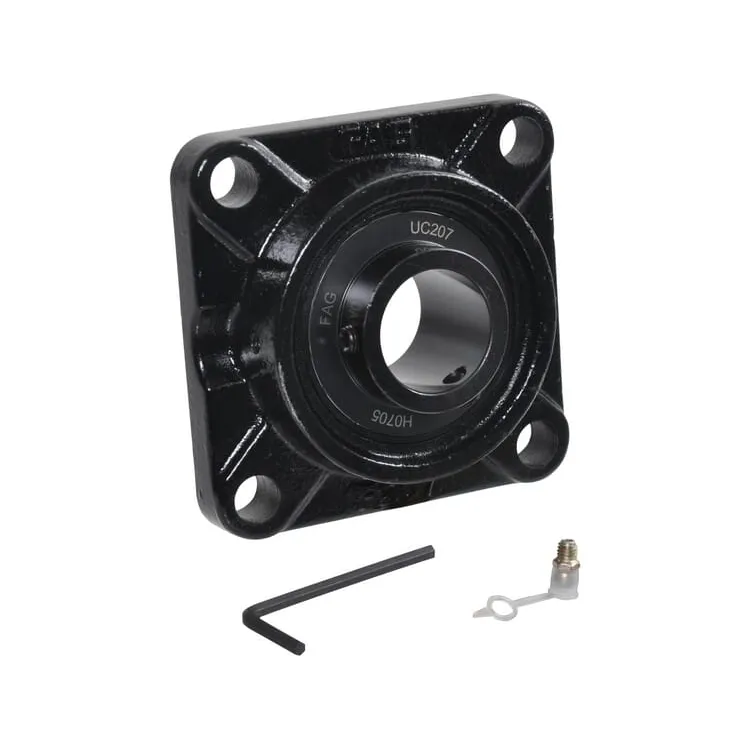

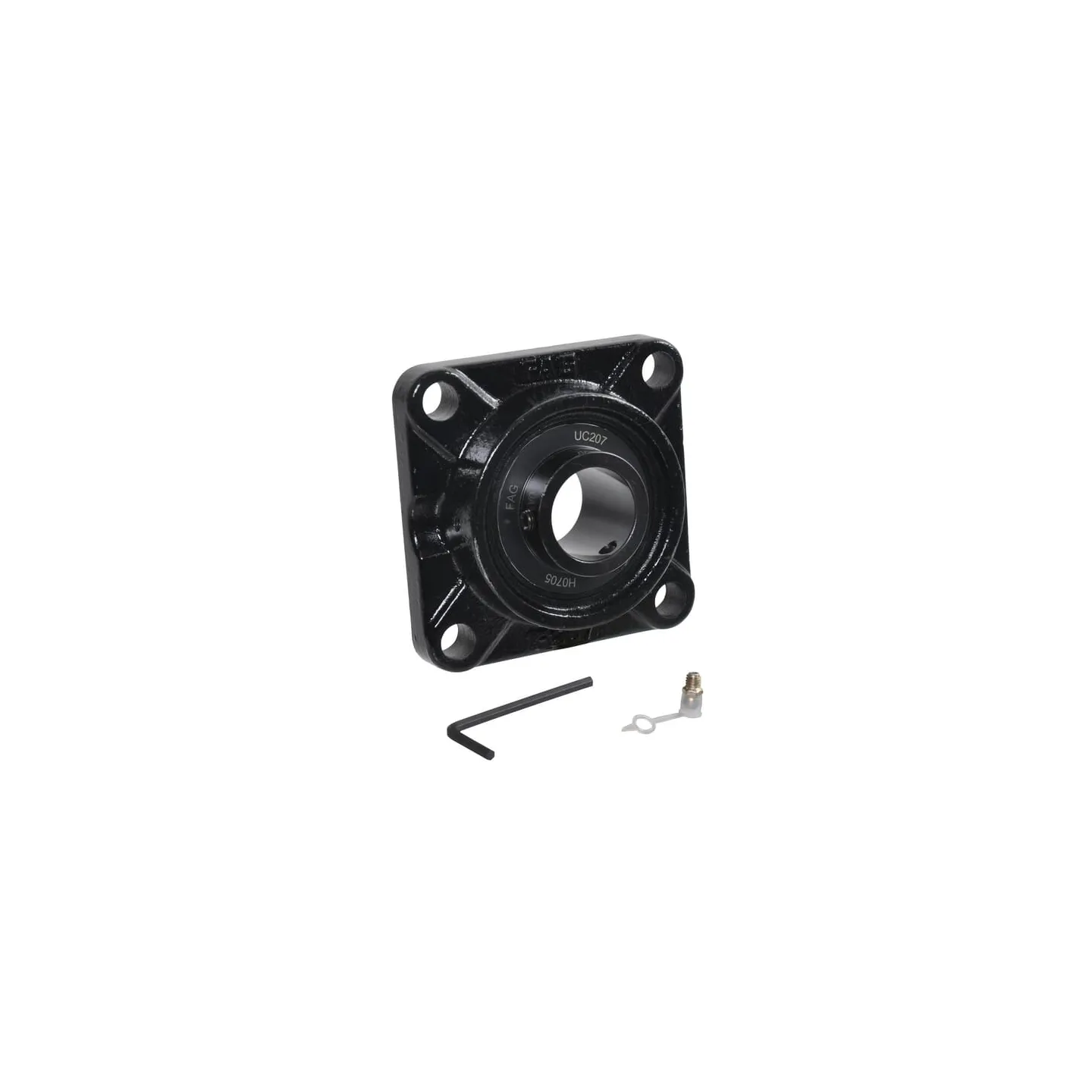

Long description	These square ball bearing units with four bolt holes are pre-assembled and pre-lubricated. This makes them rapidly deployable. The self-aligning spherical outer ring of the wide inner ring ball bearing compensates for shaft misalignment.
Pros	Highly suitable for limited installation spaces Assembled, ready for use Pre-lubricated
Product details	Inner bearing has extended inner ring on both sides with 2 adjusting screws Regreasable Self-aligning ball bearing Wide inner ring ball bearing
Properties	Inner bearing has extended inner ring with 2 adjusting screws on both sides Can be subsequently lubricated
Includes	Bearing block Bearing Grease nipple
Housing type	Square flange
dBearing inside diameter	50 mm
aTotal length	143 mm
aHousing width	143 mm
Total height	54.6 mm
lHousing height	40 mm
BiBearing inner ring width	51.6 mm
Bearing balls distance to locking side end	22 mm
eMounting holes distance	111 mm
Mounting holes diameter	16 mm
Grease nipple thread diameter	M6
Basic radial load static	23200 N
Basic radial load dynamic	35000 N
Original number equivalent	UCF210-J7
