Dzīvojamā vienība UCF UCF218

Name: Dzīvojamā vienība UCF UCF218
Brand: INA/FAG
SKU: UCF218
Price: 296.35 EUR
Availability: BackOrder

Apmaksas iespējas

296,35 €

AR PVN

Pēc pieprasījuma

Dzīvojamā vienība UCF UCF218 INA/FAG

Uz pasūtījumu

ID: 65352

Apraksts

Part number	UCF218
EAN	4054366901569
Unit	Each

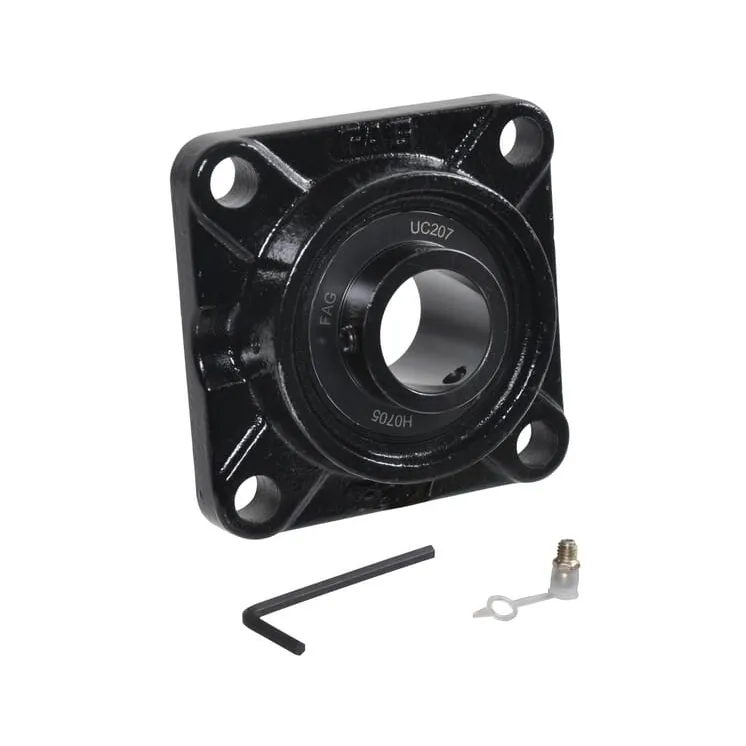

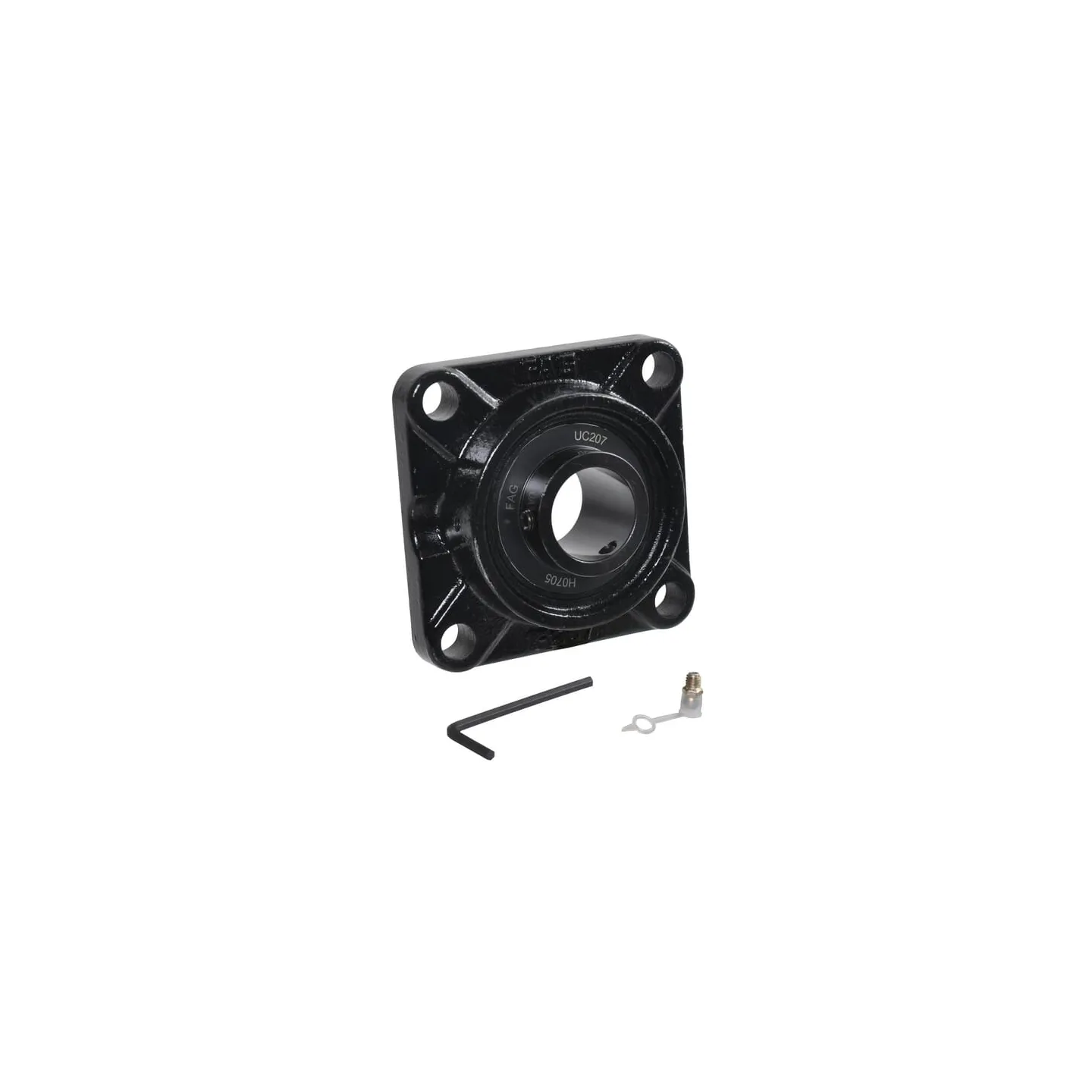

Long description	These square ball bearing units with four bolt holes are pre-assembled and pre-lubricated. This makes them rapidly deployable. The self-aligning spherical outer ring of the wide inner ring ball bearing compensates for shaft misalignment.
Pros	Highly suitable for limited installation spaces Assembled, ready for use Pre-lubricated
Product details	Inner bearing has extended inner ring on both sides with 2 adjusting screws Regreasable Self-aligning ball bearing Wide inner ring ball bearing
Properties	Inner bearing has extended inner ring with 2 adjusting screws on both sides Can be subsequently lubricated
Includes	Bearing block Bearing Grease nipple
Housing type	Square flange
dBearing inside diameter	90 mm
aTotal length	235 mm
aHousing width	235 mm
Total height	96.3 mm
lHousing height	68 mm
BiBearing inner ring width	96 mm
Bearing balls distance to locking side end	40 mm
lBearing balls distance to mounting surface	39.7 mm
eMounting holes distance	187 mm
Mounting holes diameter	23 mm
Grease nipple thread diameter	M6
Basic radial load static	72000 N
Basic radial load dynamic	95600 N
