Korpuss UCFL UCFL205

Name: Korpuss UCFL UCFL205
Brand: INA/FAG
SKU: UCFL205
Price: 15.96 EUR
Availability: InStock

Apmaksas iespējas

15,96 €

AR PVN

4-5 Darba dienas

Korpuss UCFL UCFL205 INA/FAG

IR NOLIKTAVĀ

ID: 65353

Apraksts

Part number	UCFL205
EAN	4047643247702
Unit	Each

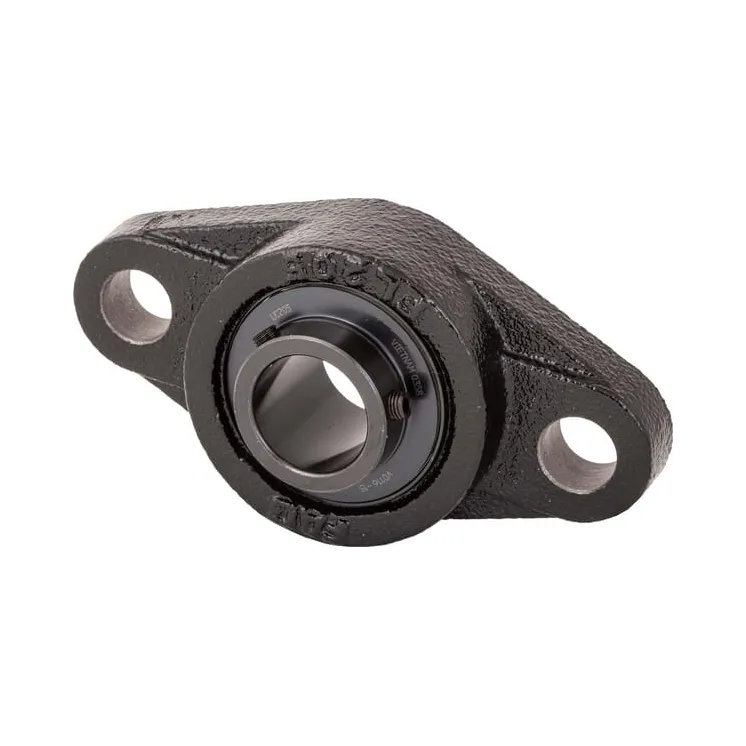

Long description	These ball bearing units with oval flange are pre-assembled and pre-lubricated. This makes them rapidly deployable. The self-aligning spherical outer ring of the wide inner ring ball bearing compensates for shaft misalignment.
Pros	Highly suitable for limited installation spaces Assembled, ready for use Pre-lubricated
Product details	Inner bearing has extended inner ring on both sides with 2 adjusting screws Regreasable Self-aligning ball bearing Wide inner ring ball bearing
Includes	Bearing block Bearing Grease nipple
Housing type	Oval flange
dBearing inside diameter	25 mm
aTotal length	130 mm
bHousing width	68 mm
ZTotal height	35.7 mm
lHousing height	27 mm
BiBearing inner ring width	34 mm
iBearing balls distance to locking side end	16 mm
nBearing balls distance to mounting surface	14.3 mm
eMounting holes distance	99 mm
SMounting holes diameter	16 mm
QGrease nipple thread diameter	M6
Original number equivalent	UCFL205-J7
