Korpuss UCP UCP211

Name: Korpuss UCP UCP211
Brand: INA/FAG
SKU: UCP211
Price: 59.33 EUR
Availability: InStock

Apmaksas iespējas

59,33 €

AR PVN

4-5 Darba dienas

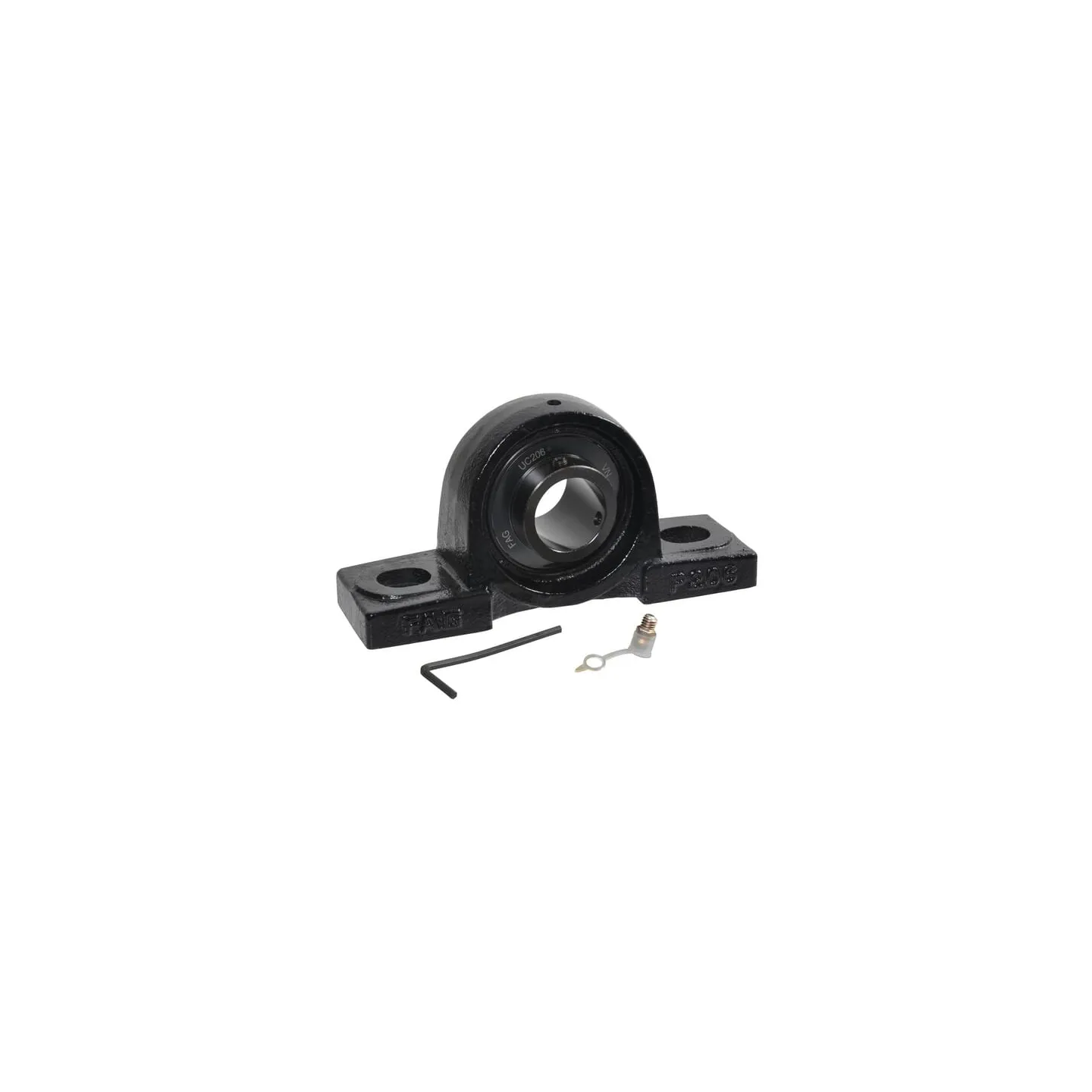

Korpuss UCP UCP211 INA/FAG

IR NOLIKTAVĀ

ID: 65366

Apraksts

Part number	UCP211
EAN	4047643243865
Unit	Each
Long description	These standing ball bearing units are pre-assembled and pre-lubricated. This makes them rapidly deployable. The self-aligning spherical outer ring of the wide inner ring ball bearing compensates for shaft misalignment.
Pros	Highly suitable for limited installation spaces Assembled, ready for use Pre-lubricated
Product details	Inner bearing has extended inner ring on both sides with 2 adjusting screws Regreasable Self-aligning ball bearing Wide inner ring ball bearing
Includes	Bearing block Bearing Grease nipple
Housing type	Pillow block
dBearing inside diameter	55 mm
aTotal length	219 mm
bHousing width	60 mm
WTotal height	125 mm
BiBearing inner ring width	55.6 mm
hShaft vertical distance	63.5 mm
nBearing balls distance to mounting surface	22.2 mm
eMounting holes distance	171 mm
Grease nipple thread diameter	M6
Original number equivalent	UCP211-J7
